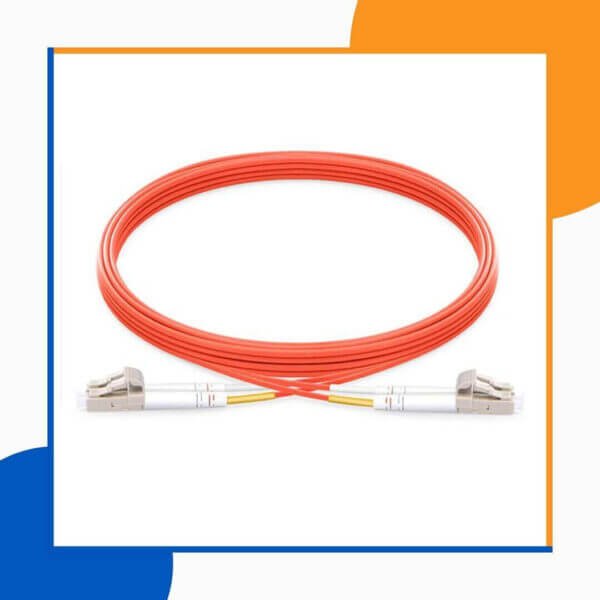

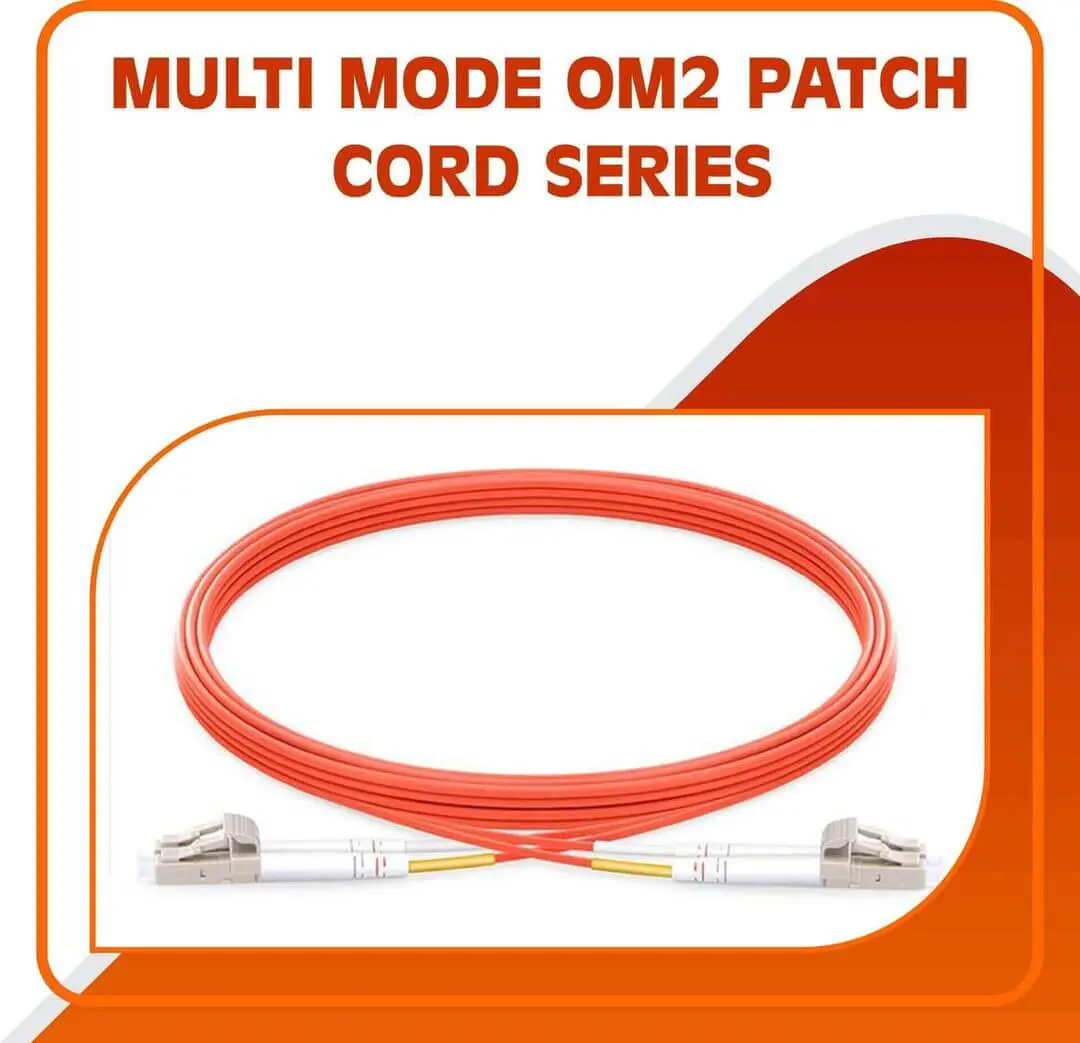

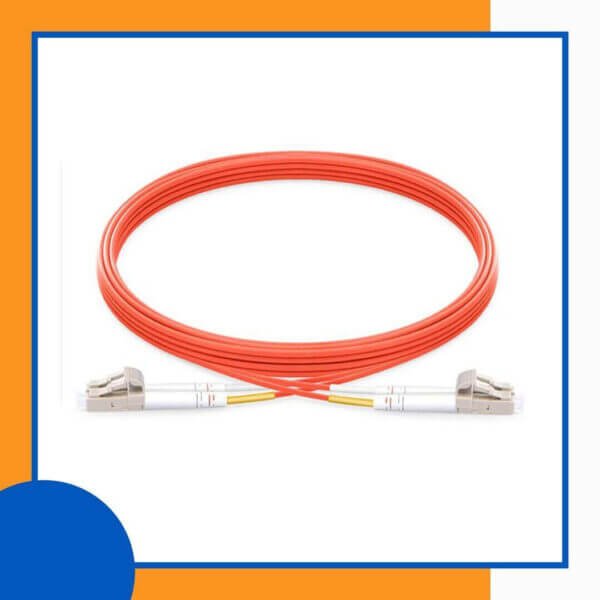

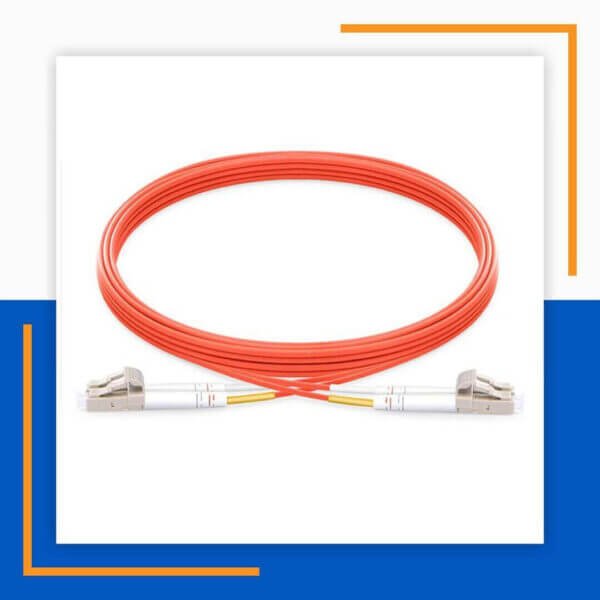

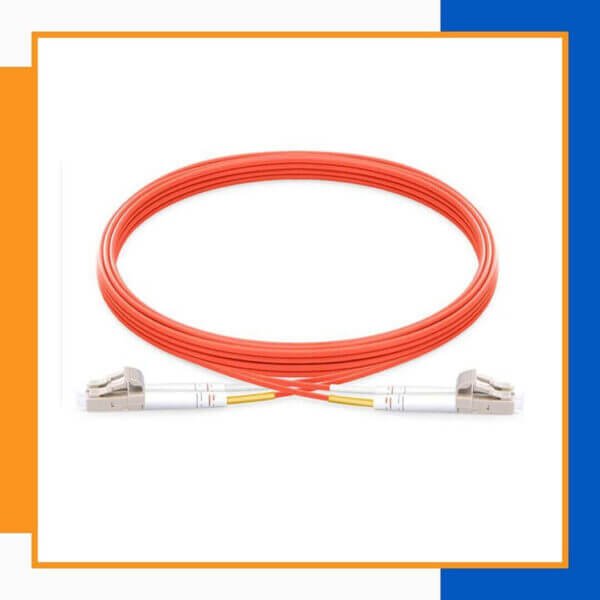

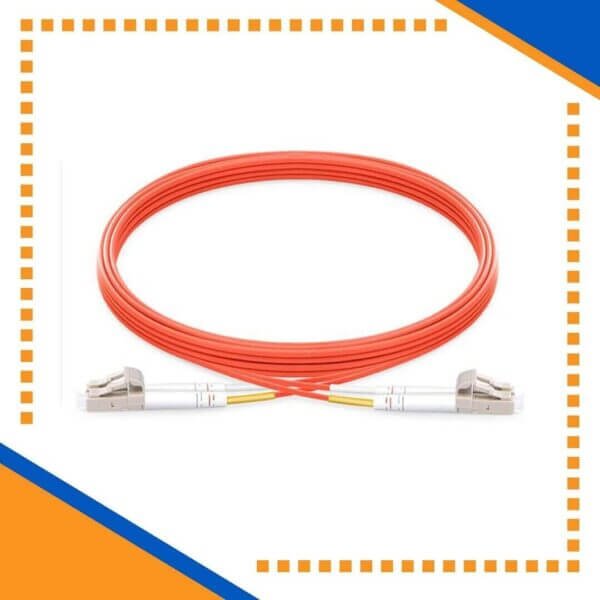

Fiber Optic Patch Cord MM LC-LC-UPC Duplex LSZH OM2 10M
Rated 5.00 out of 5 based on 1 customer rating
General Specification
Mode type : Multi Mode
Cable Type : Duplex
Connector Style : LC-LC
Fiber Type : ITU-T G.652D
Polish type :UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength : SM,1310/1550nm
Length : 10Meter
Model No :FCI-3650
Product ID : TD24410O
Description
FAHAD CABLES Fiber Optic Patch Cord MM LC-LC-UPC Duplex LSZH OM2 10M
FAHAD CABLES 10M High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord
Patch Cords are used to provide optical connection for lc lc patch cord fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting .Fiber Optic Patch Cord MM LC-LC-UPC Duplex LSZH OM2 10M
Optical Specifications
- Mode type: Single mode / multi mode
- Cable Type: Simplex/Duplex
- Connector Style: SC, FC, ST, LC, MTRJ,
- Polish Type: PC,UPC,APC
- Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
- Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
- Strength Member: Aramid Yarn
- Outer Jacket: LSZH/PVC/OFNR/OFNP
- Interchangeability &Vibration: ≤0.2dB
- Minimum Bend radius: 10 -13mm
- Wavelength: SM:1310/1550nm MM:850nm
- Operating temperature: -40~75°C
- Jacket Color
- Single mode: Yellow / Green, Yellow Blue
- Storage temperature: -45~85°C
- Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
- Fiber type: ITU-T G.652D, G.657A1 /A2
PHYSICAL AND MECHANICAL PROPERTIES | |
Mode type | Single-mode |
Cable Type | Simplex |
Connector Style | SC-SC |
Fiber Type | ITU-T G.652D |
Polish type | APC |
Diameter | 2.0mm |
Outer Jacket | LSZH |
Insertion loss | ≤0.3dB |
Return loss | ≥60dB |
Wavelength | SM,1310/1550nm |
Length | 1Meter |
Ordering Information | ||
Model No | Item Code | Description |
FCI-3401 | S51101Y | fiber optic patch cord single mode sc-sc-apc simplex lszh 1meter |
Additional information
Brand |
Fahad Cables |
---|---|
Length |
0.5m ,1m ,2m ,3m ,4m ,5m ,8m ,10m ,15m ,20m ,25m ,40m ,50m ,70m ,100m |
