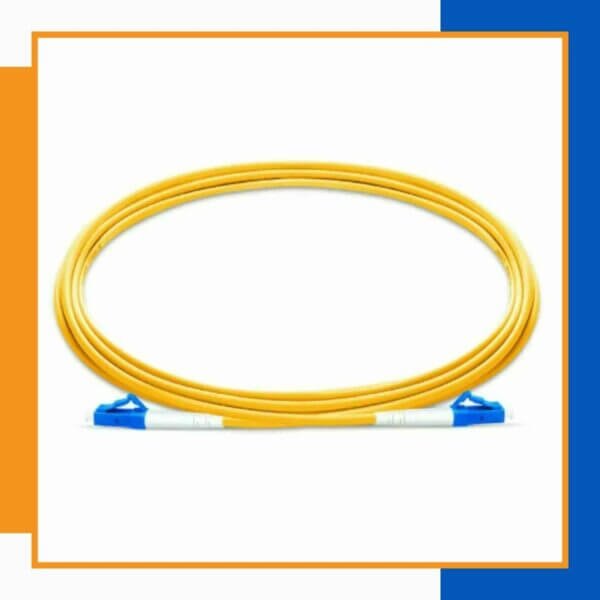

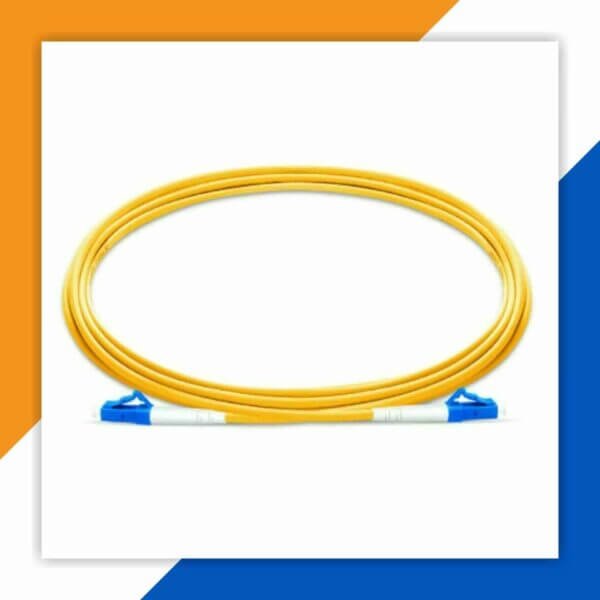

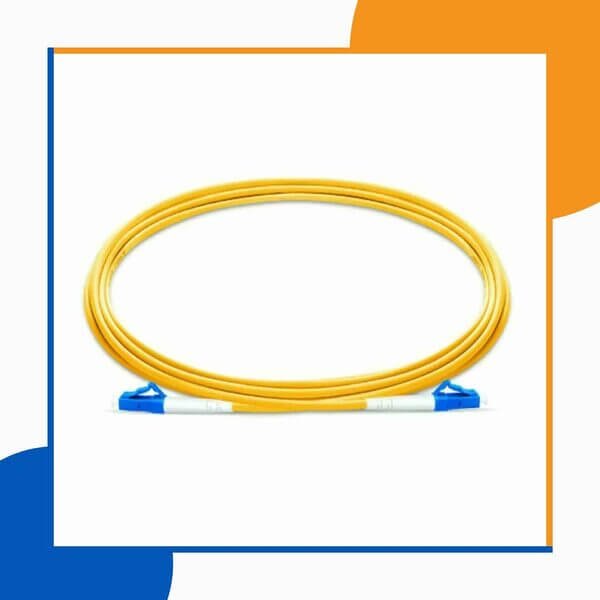

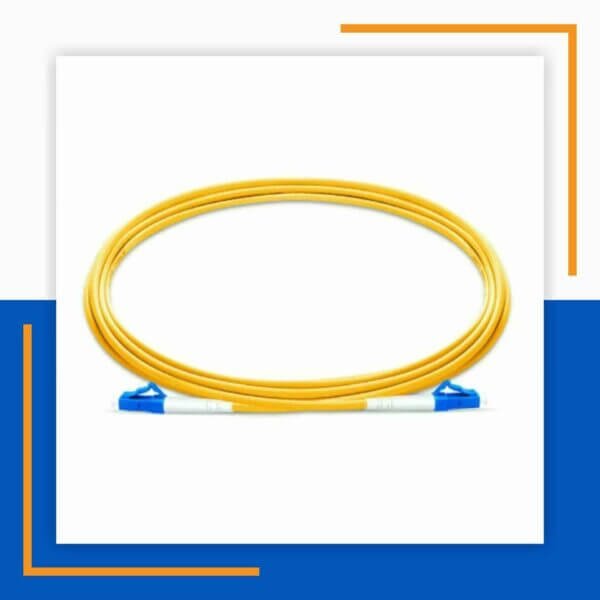

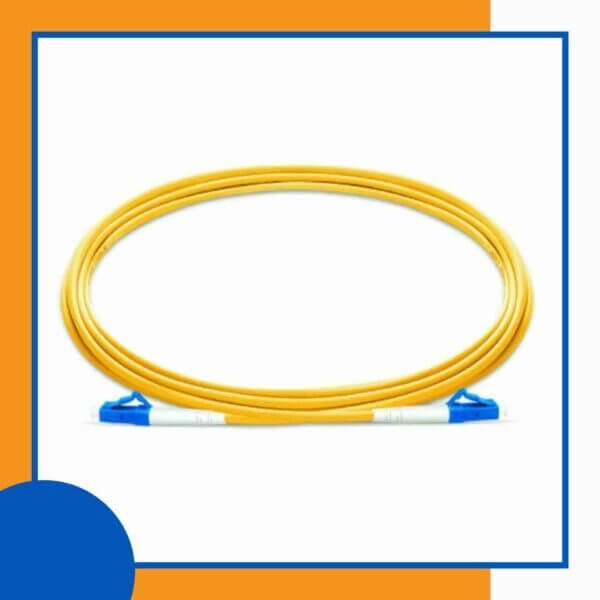

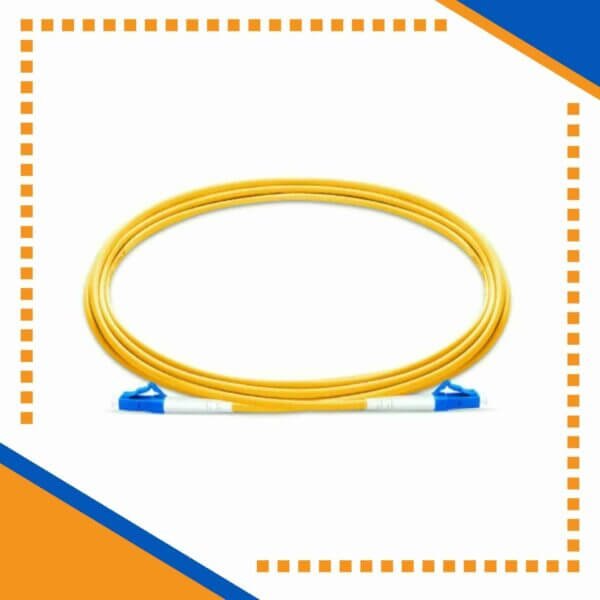

Fiber Optic Patch Cord SM LC-LC-UPC Simplex LSZH
د.إ 10.00
General Specification
Mode type: Single Mode
Cable Type : Simplex
Connector Style: LC-LC
Fiber Type : ITU-T G.652D
Polish type: UPC
Diameter : 2.0mm
Outer Jacket: LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength: SM,1310/1550nm
Length : 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter
Model No:
Product ID:
FAHAD CABLES Fiber Optic Patch Cord SM LC-LC-UPC Simplex LSZH
FAHAD CABLESÂ Fiber Optic Patch Cord SM LC-LC-UPC Simplex LSZHÂ Â 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics.
FCI Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous. parameter test to ensure the highest in network performance. Fahad Cables Industry R Provide Local Manufacturing Facility for Fiber Optic Accessories Patch cord and Pigtail. at UAE, With Made in UAE Coo.
Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.
Optical Specifications
Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type:Â ITU-T G.652D, G.657A1 /A2
Multi mode OM-2Â Â Â Â Â Â Â Â Â Â Multi mode OM-3Â Â Â Â Multi mode OM-4Â Â Â Â Â Â Â
≤0.3dB                      ≤0.3dB                ≤0.3dB
≥30dB                       ≥30dB                 ≥30dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
