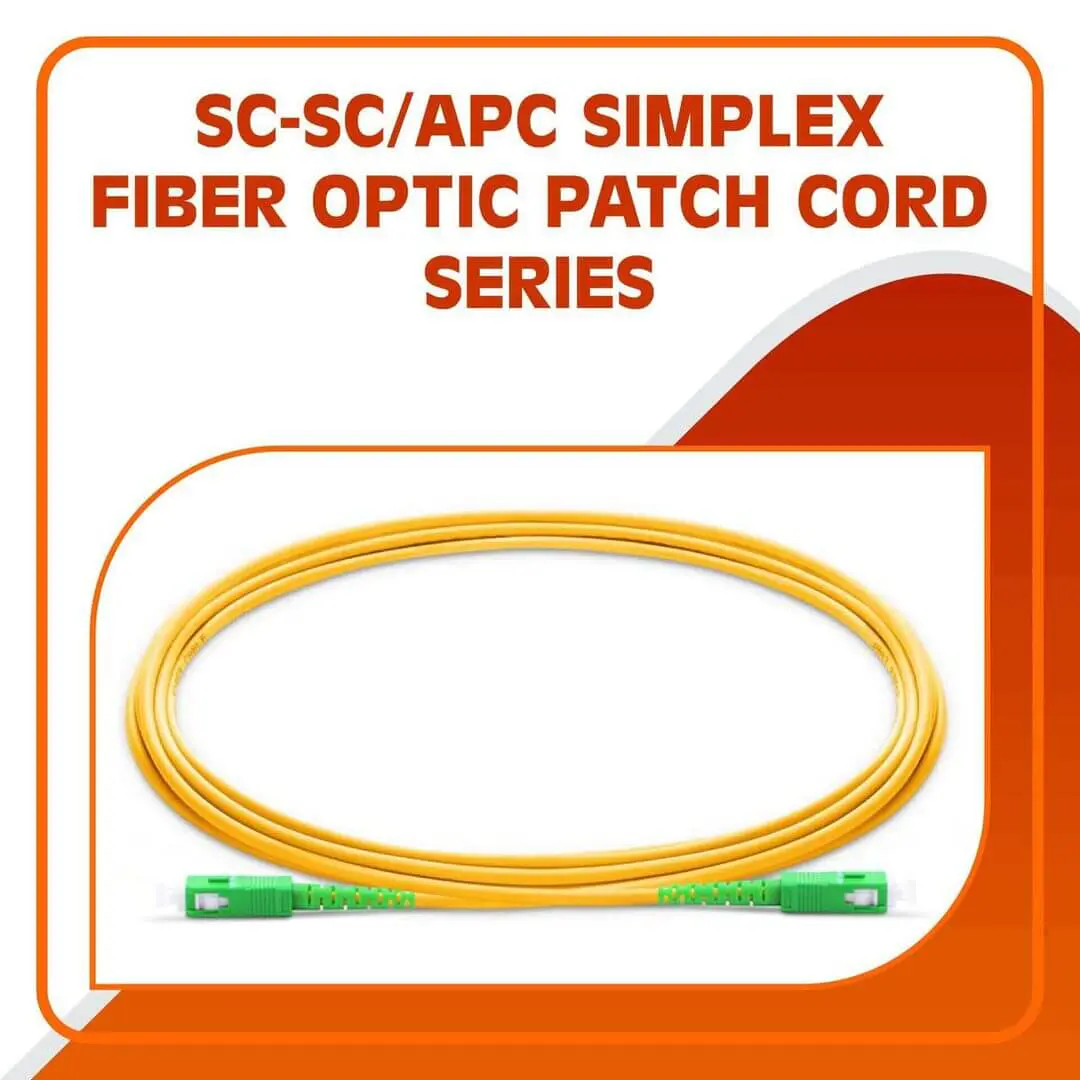

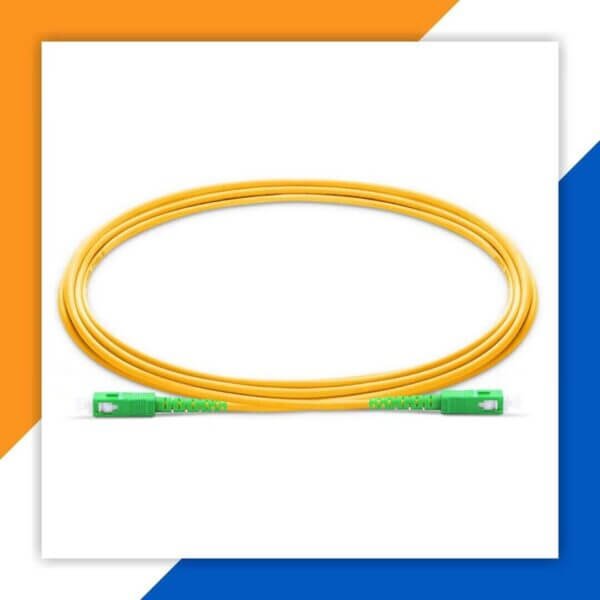

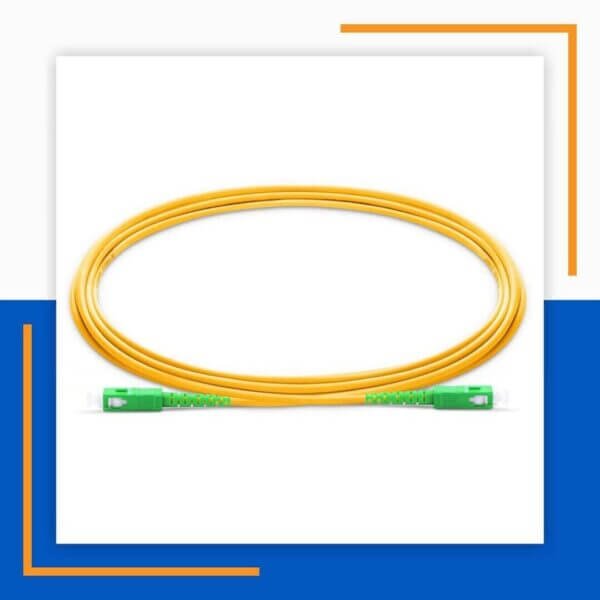

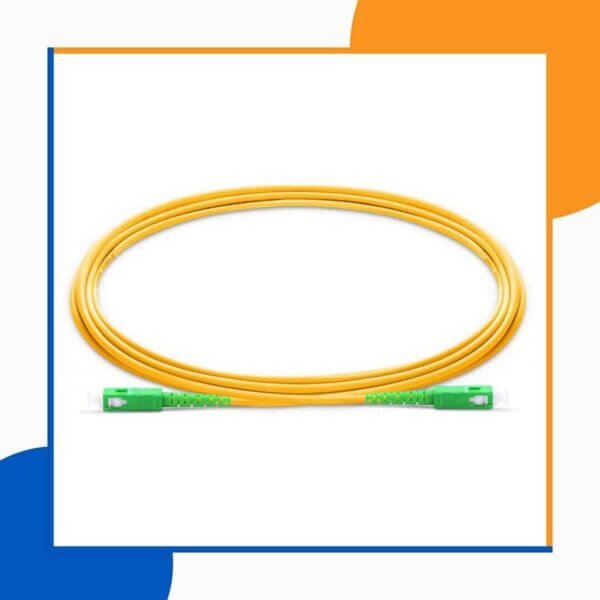

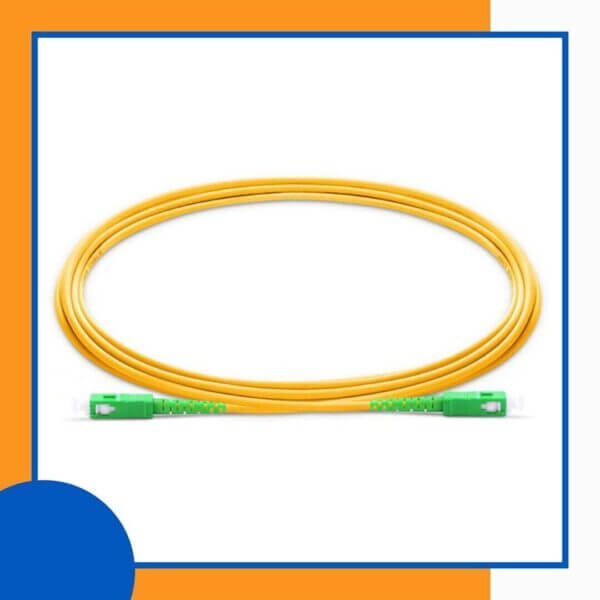

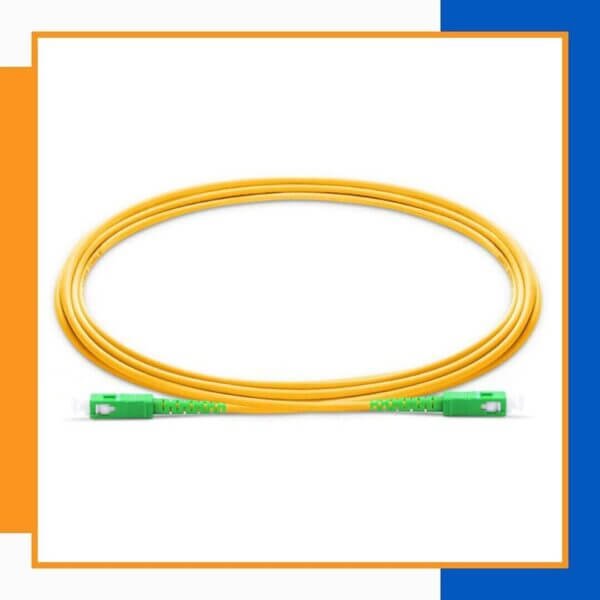

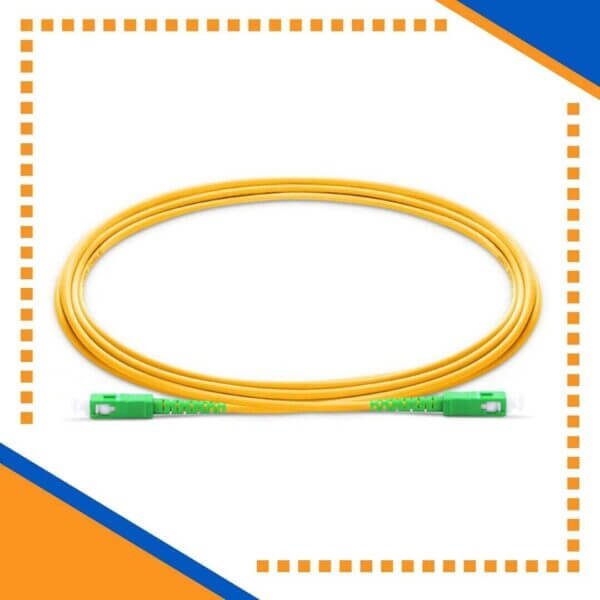

Fiber Optic Patch Cord SM SC-SC-APC Simplex LSZH 3m FCI
Rated 5.00 out of 5 based on 1 customer rating
د.إ 4.00 – د.إ 80.00
General Specification
Mode type: Single mode
Cable Type: Simplex
Connector Style: SC-SC
Fiber Type: ITU-T G.652D
Polish type:APC
Diameter : 2.0mm
Outer Jacket: LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength: SM,1310/1550nm
Length: 3Meter
Model No: FCI-3403
Product ID: S11103Y
Description
Fahad Cables Fiber Optic Patch Cord SM SC-SC-APC Simplex LSZH 3m FCI
FAHAD CABLES 3m FCI High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. .Fiber Optic Patch Cord SM SC-SC-APC Simplex LSZH 3m FCI
FAHAD CABLES Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous.
parameter test to ensure the highest in network performance. Fahad Cables Industry R Provide Local Manufacturing Facility for Fiber Optic Accessories Patch cord and Pigtail. at UAE, With Made in UAE Coo.
Optical Specifications
- Mode type: Single mode / multi mode
- Cable Type: Simplex/Duplex
- Connector Style: SC, FC, ST, LC, MTRJ,
- Polish Type: PC,UPC,APC
- Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
- Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
- Strength Member: Aramid Yarn
- Outer Jacket: LSZH/PVC/OFNR/OFNP
- Interchangeability &Vibration: ≤0.2dB
- Minimum Bend radius: 10 -13mm
- Wavelength: SM:1310/1550nm MM:850nm
- Operating temperature: -40~75°C
- Jacket Color
- Single mode: Yellow / Green, Yellow Blue
- Storage temperature: -45~85°C
- Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
- Fiber type: ITU-T G.652D, G.657A1 /A2
PHYSICAL AND MECHANICAL PROPERTIES | |
Mode type | Single-mode |
Cable Type | Simplex |
Connector Style | SC-SC |
Fiber Type | ITU-T G.652D |
Polish type | APC |
Diameter | 2.0mm |
Outer Jacket | LSZH |
Insertion loss | ≤0.3dB |
Return loss | ≥60dB |
Wavelength | SM,1310/1550nm |
Length | 1Meter |
Ordering Information | ||
Model No | Item Code | Description |
FCI-3401 | S51101Y | Fiber Optic Patch Cord Single Mode SC-SC-APC Simplex LSZH 3m |
Additional information
Length |
1m ,2m ,3m ,4m ,5m ,8m ,10m ,15m ,20m ,25m ,30m ,40m ,50m ,70m ,100m |
---|---|
Brand |
Fahad Cables |
