Control Cable Manufacturer in the UAE
Reliable multicore control cables for industrial automation, machinery, switchgear, control panels, building systems and infrastructure projects, with screened, armoured and OEM configurations available.
Reliable Multicore Cables for Industrial Control Systems
Fahad Cables Industry FZE manufactures control cables for industrial automation, machinery, switchgear, control panels, building management systems and infrastructure projects.
Product configurations may include flexible or stranded copper conductors, numbered or colour-coded cores, screened or unscreened designs, armoured variants and selected PVC or LSZH jacket options.

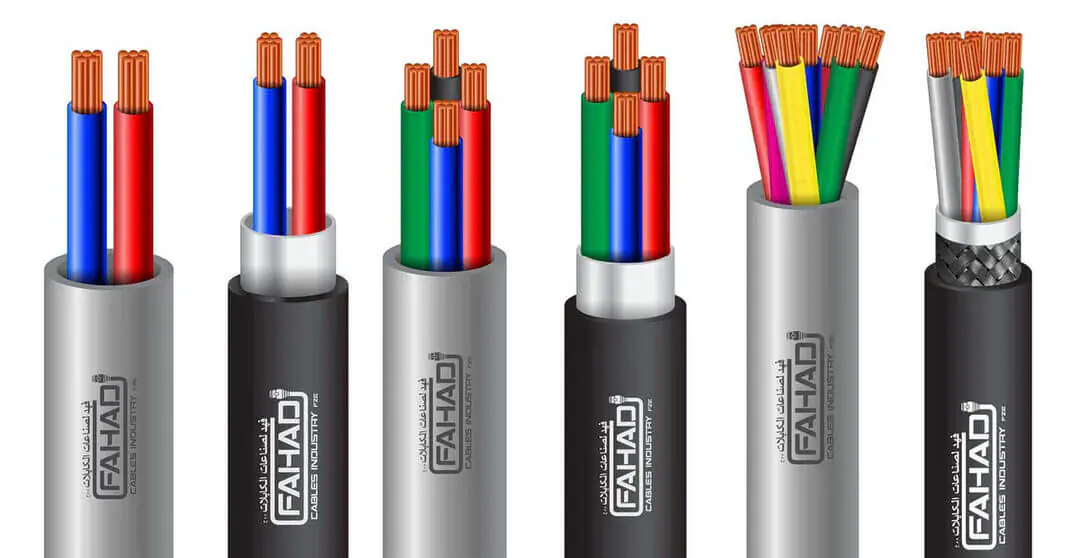

Multicore Construction
Available with multiple insulated cores for control, signalling and auxiliary circuit applications.
Screened Options
Selected configurations may include foil, braid or approved screening for installations requiring additional interference protection.
Armoured Designs
Armoured constructions may be available for applications requiring enhanced mechanical protection.
OEM Manufacturing
Custom printing, core identification, jacket colours, drum labels and private label packaging are available.
Designed for Industrial Control & Signal Transmission
Control cables are engineered for dependable signal transmission between control panels, machinery, instrumentation and industrial automation systems in demanding operating environments.
Key Product Features
Available in multiple core configurations for complex control and signalling circuits.
Manufactured with stranded or flexible copper conductors according to approved specifications.
Foil or braid screening may be available where protection against electrical interference is required.
Optional armouring provides additional protection against mechanical damage.
Selected constructions are suitable for fixed or limited movement industrial installations.
Custom printing, numbering, colour coding and branding options are available.
Typical Applications
Industrial Automation
Signal and control wiring for automated production systems.
Control Panels
Internal and external wiring for electrical control cabinets.
Machinery
Machine control circuits, equipment monitoring and auxiliary wiring.
Instrumentation
Signal transmission between field instruments and controllers.
Power Plants
Auxiliary control systems for industrial power facilities.
Building Management
Control wiring for HVAC, security and automation systems.
Control Cable Specifications
The specifications below represent common control cable configurations. Final conductor size, core count, screening, armouring, insulation and sheath materials should match the approved technical datasheet.
| Product | Industrial Control Cable |
|---|---|
| Conductor Material | Annealed Copper |
| Conductor Construction | Stranded / Flexible, subject to cable design |
| Common Conductor Sizes | 0.5 mm² to 6 mm² or Customer Specification |
| Number of Cores | 2 to 61 Cores or Customer Requirement |
| Core Identification | Numbered Cores / Colour Coded / Customer Specification |
| Insulation | PVC / XLPE / LSZH Compound |
| Screening | Unscreened / Aluminium Foil / Copper Braid |
| Drain Wire | Optional, according to screened construction |
| Inner Sheath | PVC / LSZH, where applicable |
| Armouring | Unarmoured / Steel Wire Armour / Steel Tape Armour |
| Outer Sheath | PVC / LSZH / PE |
| Voltage Grade | According to approved cable specification |
| Operating Temperature | According to insulation and sheath material |
| Jacket Colour | Black, Grey or Customer Requirement |
| Cable Printing | Standard Marking / OEM Custom Printing |
| Packaging | Wooden Drum / Reel / Customer-Specific Packaging |
| OEM Manufacturing | Available |
| Country of Origin | United Arab Emirates |
Need a Specific Core Count or Cable Construction?
Share your conductor size, number of cores, voltage grade, screening, armouring, insulation, sheath material, length and installation environment.
Control Cable Construction Options
Control cables are available in multiple conductor sizes, core counts, insulation systems, screening options, armouring types and outer sheath materials for industrial automation, machinery, panels and process-control installations.
Conductor Sizes
- 0.50 mm²
- 0.75 mm² and 1.00 mm²
- 1.50 mm² and 2.50 mm²
- 4.00 mm² and 6.00 mm²
Core Counts
- 2-Core to 7-Core
- 8-Core to 19-Core
- 20-Core to 37-Core
- Up to 61-Core Options
Conductor Construction
- Stranded Annealed Copper
- Flexible Fine-Stranded Copper
- Tinned Copper Option
- Custom Strand Configuration
Core Identification
- Numbered Black Cores
- Colour-Coded Cores
- Numbered and Colour-Coded
- Custom Identification Sequence
Insulation Options
- PVC Insulation
- XLPE Insulation
- LSZH Insulation
- Project-Specific Compounds
Screening Options
- Unscreened Construction
- Overall Aluminium Foil Screen
- Copper Braid Screen
- Foil and Braid Combination
Armouring Options
- Unarmoured Cable
- Steel Wire Armoured
- Steel Tape Armoured
- Custom Mechanical Protection
Outer Sheath & Packing
- PVC, LSZH or PE Sheath
- Plastic or Wooden Reels
- Wooden Drums
- OEM and Export Packaging
OEM Control Cable Manufacturing
Control cable construction can be customized with selected conductor size, core count, flexibility class, insulation, screening, drain wire, armouring, outer sheath, cable printing, metre marking, drum labels and private-label packaging, subject to approved specifications and minimum order quantity.
Explore Our Control Cable Products
Multicore control cable solutions for machinery, control panels, automation systems, building management, infrastructure and industrial installations.
Unscreened Control Cable
Multicore unscreened cable for general control, signalling, switchgear, panel wiring and auxiliary circuits in industrial and commercial installations.
- Conductor
- Stranded Copper
- Core Count
- 2–61 Cores
- Screening
- Unscreened
- Insulation
- PVC / XLPE
- Outer Sheath
- PVC / LSZH
Screened Control Cable
Screened multicore cable for sensitive control and signal circuits requiring additional protection against electrical noise and electromagnetic interference.
- Conductor
- Stranded Copper
- Core Count
- 2–61 Cores
- Screening
- Foil / Copper Braid
- Drain Wire
- Optional
- Outer Sheath
- PVC / LSZH
Flexible Control Cable
Fine-stranded multicore cable designed for machinery, equipment wiring and installations requiring enhanced flexibility and easier cable routing.
- Conductor
- Fine-Stranded Copper
- Core Count
- Multiple Cores
- Flexibility
- High Flexibility
- Insulation
- PVC / Approved Compound
- Outer Sheath
- PVC / PUR
Armoured Control Cable
Mechanically protected multicore cable for industrial plants, infrastructure, service routes and installations requiring enhanced protection against impact and cable damage.
- Conductor
- Stranded Copper
- Core Count
- 2–61 Cores
- Armouring
- SWA / Steel Tape
- Inner Sheath
- PVC / LSZH
- Outer Sheath
- PVC / LSZH / PE
Outdoor Control Cable
Weather-resistant control cable for external equipment, industrial sites, rooftop systems and outdoor installations requiring a durable protective sheath.
- Conductor
- Stranded Copper
- Core Count
- Multiple Cores
- Screening
- Optional
- Protection
- UV & Weather Resistant
- Outer Sheath
- Outdoor PE
LSZH Control Cable
Low-smoke zero-halogen multicore cable for airports, hospitals, commercial buildings, public facilities and enclosed areas requiring reduced smoke and halogen emissions.
- Conductor
- Stranded Copper
- Core Count
- 2–61 Cores
- Screening
- Optional
- Smoke Level
- Low Smoke
- Outer Sheath
- LSZH
Engineered for Reliable Industrial Control Circuits
Control cable construction may include stranded copper conductors, insulated cores, optional screening, inner sheath, armour and a durable outer sheath according to the approved application and specification.
Copper Conductors
Stranded or flexible annealed copper conductors carry control, signalling and auxiliary circuit currents.
Core Insulation
Each conductor is individually insulated using PVC, XLPE or another approved compound according to the cable design.
Core Identification
Numbered or colour-coded cores support organized installation, maintenance and circuit identification.
Optional Screening
Aluminium foil, copper braid or an approved screen may be included for applications requiring additional interference protection.
Inner Sheath & Armour
Selected constructions may include an inner sheath and steel wire or steel tape armour for enhanced mechanical protection.
Outer Sheath
PVC, LSZH or PE outer sheath options may be available depending on the installation environment and approved cable specification.
Flexible Packaging for Industrial Projects Worldwide
Fahad Cables supplies control cables in customer-specific drum lengths, OEM packaging and export-ready configurations for industrial, infrastructure and international distribution projects.
Wooden Drum Supply
Control cables are supplied on durable wooden drums suitable for transportation, storage and industrial installation.
Custom Drum Lengths
Cable lengths can be produced according to project specifications and customer requirements.
Custom Cable Printing
Company name, cable size, voltage rating, batch number and customer branding can be printed on the cable sheath.
Private Label Packaging
OEM branding, drum labels, product stickers and customized documentation are available for qualified orders.
Export Documentation
Products can be supplied with commercial documentation and export packaging according to destination requirements.
Worldwide Shipping
Industrial control cables can be prepared for regional and international deliveries using suitable export packaging.
Controlled Manufacturing for Reliable Industrial Performance
Fahad Cables Industry FZE applies documented quality checks throughout control cable production, from incoming conductor and compound inspection to insulation, core assembly, screening, armouring, sheathing and final release.
Final electrical, dimensional and mechanical requirements should always match the approved control cable datasheet and confirmed customer specification.
Conductor Inspection
Conductor material, strand construction and nominal size are checked before production.
Insulation Verification
Core insulation thickness, appearance and identification are reviewed during manufacturing.
Core Identification Check
Numbered or colour-coded cores are verified for sequence and legibility.
Screening & Armour Review
Foil, braid, drain wire and armour application are checked where applicable.
Electrical Testing
Applicable continuity, conductor resistance, insulation resistance and voltage tests may be completed.
Dimensional Checks
Cable diameter, sheath thickness and construction dimensions are reviewed.
Printing & Traceability
Product markings, cable size, batch details, metre marking and OEM printing are verified.
Final Drum Inspection
Cable length, drum condition, labels and shipment identification are checked before dispatch.
KNX Cable
Screened twisted-pair cable for KNX lighting, HVAC, energy and smart-building automation networks.
View Product
Instrumentation Cable
Reliable signal transmission cables for instrumentation and process automation.
View Product
Fiber Optic Cable
Indoor and outdoor fiber optic cables for industrial communication networks.
View Product
CAT6 Network Cable
High-performance LAN cable for commercial buildings and industrial Ethernet.
View ProductFrequently Asked Questions
Find answers about control cable construction, conductor sizes, screening, armouring, applications, packaging and OEM manufacturing.
What is a control cable?
A control cable is a multicore electrical cable used to transmit control, signalling and auxiliary circuit connections between machinery, panels, switches and industrial equipment.
Where are control cables commonly used?
Control cables are commonly used in industrial automation, control panels, machinery, switchgear, building management systems, infrastructure projects and process-control installations.
What conductor sizes and core counts are available?
Available conductor sizes and core counts depend on the approved cable design. Common options may range from small multicore control cables to larger configurations for complex industrial systems.
What is the difference between screened and unscreened control cable?
Unscreened cable is suitable for general control circuits, while screened cable includes foil, braid or another screen to help reduce the effect of electrical interference.
Are armoured control cables available?
Yes. Selected control cable constructions may include steel wire armour or steel tape armour where additional mechanical protection is required.
Can control cables be supplied with numbered cores?
Yes. Core identification may include numbered cores, colour-coded cores or a customer-specific identification system according to the approved cable specification.
Can you print our company name on the cable?
Yes. Custom sheath printing, metre marking, batch details, product references and approved OEM branding are available for qualified private label orders.
What packaging options are available?
Control cables may be supplied on wooden drums, reels or approved customer-specific packaging, depending on cable size, length and project requirements.
Need Custom Control Cables for Your Industrial Project?
Share your conductor size, number of cores, voltage grade, screening, armouring, insulation, outer sheath, cable length, printing and delivery destination with our technical sales team.
