Instrumentation Cable Manufacturer in the UAE
Reliable instrumentation cables for process control, industrial automation, measurement systems, oil and gas facilities, power plants and infrastructure projects, with screened, armoured and OEM configurations available.

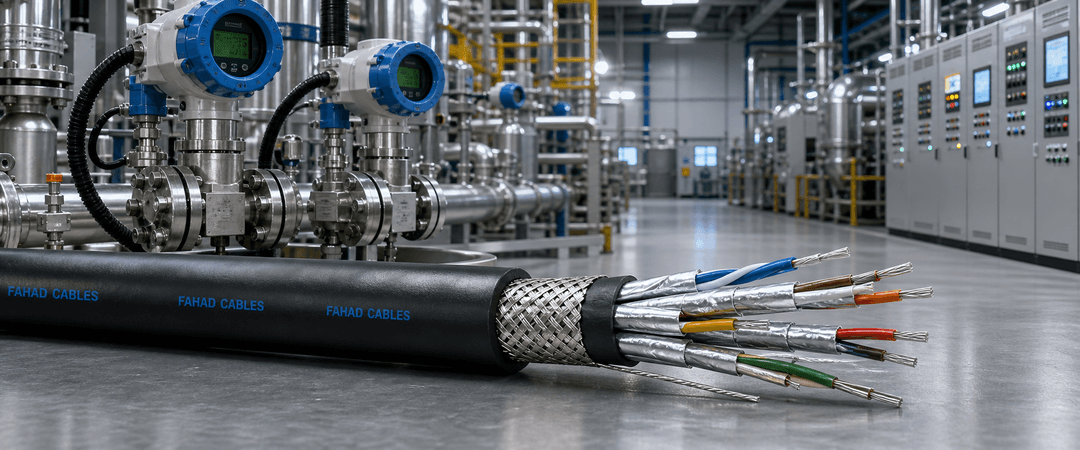

Reliable Instrumentation Cables for Process Control Systems
Fahad Cables Industry FZE manufactures instrumentation cables for transmitting low-level analogue, digital and control signals between field instruments, control rooms, monitoring systems and industrial equipment.
Product configurations may include twisted pairs, triads or multicore constructions with individual screening, overall screening, armouring, drain wires and selected PVC, PE, XLPE or LSZH materials.
Pairs, Triads & Multicore
Available in multiple conductor arrangements for measurement, control and process-signal applications.
Screened Construction
Individual and overall screens help reduce electrical interference in sensitive instrumentation circuits.
Armoured Options
Selected cable variants may include steel wire or steel tape armour for enhanced mechanical protection.
OEM Manufacturing
Custom printing, pair identification, sheath colours, drum labels and private label packaging are available.
Designed for Accurate Signal Transmission in Industrial Systems
Instrumentation cables are designed for low-level analogue, digital and control signals in industrial environments where reliable transmission, clear circuit identification and interference protection are important.
Key Product Features
Available in multiple conductor arrangements for process control, measurement, monitoring and automation systems.
Conductors may be assembled into twisted pairs or triads to support balanced transmission and organized circuit design.
Each pair or triad may include a dedicated foil screen and drain wire for additional signal separation.
An overall foil or braid screen may be applied around the complete cable core to help reduce external electrical interference.
Steel wire or steel tape armour may be available where enhanced mechanical protection is required.
Custom pair numbering, sheath printing, jacket colours, drum labels and private label packaging are available.
Typical Applications
Oil & Gas Facilities
Signal transmission between field instruments, junction boxes and control systems.
Process Plants
Monitoring and control circuits for industrial process equipment.
Power Generation
Instrumentation links for power plants, substations and auxiliary systems.
Industrial Automation
Data and control signals between sensors, transmitters and PLC systems.
Water Treatment
Monitoring and process-control circuits for treatment and pumping facilities.
Building Management
Measurement and control signals for HVAC, security and automation systems.
Instrumentation Cable Screening Options
Instrumentation Cable Specifications
The specifications below represent common instrumentation cable configurations. Final conductor size, pair or triad count, screening, armouring, insulation and sheath materials should match the approved technical datasheet.
| Product | Industrial Instrumentation Cable |
|---|---|
| Conductor Material | Annealed Copper |
| Conductor Construction | Solid / Stranded, subject to cable design |
| Common Conductor Sizes | 0.5 mm² / 0.75 mm² / 1.0 mm² / 1.5 mm² or Customer Specification |
| Construction | Pairs / Triads / Multicore |
| Number of Pairs or Triads | According to approved cable design |
| Core Identification | Colour Coded / Numbered / Customer Specification |
| Insulation | PVC / PE / XLPE / LSZH Compound |
| Individual Screening | Aluminium Foil with Drain Wire, where applicable |
| Overall Screening | Aluminium Foil / Copper Braid / Customer Specification |
| Drain Wire | Tinned Copper / Bare Copper, subject to construction |
| Inner Sheath | PVC / LSZH, where applicable |
| Armouring | Unarmoured / Steel Wire Armour / Steel Tape Armour |
| Outer Sheath | PVC / LSZH / PE |
| Voltage Grade | According to approved product specification |
| Operating Temperature | According to insulation and sheath material |
| Sheath Colour | Black, Grey, Blue or Customer Requirement |
| Cable Printing | Standard Marking / OEM Custom Printing |
| Packaging | Wooden Drum / Reel / Customer-Specific Packaging |
| OEM Manufacturing | Available |
| Country of Origin | United Arab Emirates |
Need a Specific Pair, Triad or Screening Design?
Share your conductor size, number of pairs or triads, screening, armouring, insulation, sheath material, voltage grade, cable length and installation environment.
Instrumentation Cable Construction Options
Instrumentation cables are available in paired, triad and multicore constructions with selected conductor sizes, insulation systems, individual or overall screening, armouring and outer sheath options for process control, measurement and signal transmission.
Conductor Sizes
- 0.50 mm²
- 0.75 mm²
- 1.00 mm²
- 1.50 mm² and Custom Sizes
Cable Configurations
- Single Pair
- Multi-Pair
- Single and Multi-Triad
- Multicore Instrumentation Cable
Conductor Construction
- Solid Annealed Copper
- Stranded Annealed Copper
- Tinned Copper Option
- Custom Strand Configuration
Core Identification
- Colour-Coded Pairs or Triads
- Numbered Core Identification
- Printed Pair Identification
- Custom Identification Sequence
Insulation Options
- PVC Insulation
- PE Insulation
- XLPE Insulation
- LSZH Insulation
Screening Options
- Overall Aluminium Foil Screen
- Overall Copper Braid Screen
- Individually Screened Pairs
- Individual and Overall Screening
Drain Wire & Armour
- Tinned or Bare Copper Drain Wire
- Unarmoured Construction
- Steel Wire Armoured
- Steel Tape Armoured
Outer Sheath & Packing
- PVC, LSZH or PE Sheath
- Plastic or Wooden Reels
- Wooden Drums
- OEM and Export Packaging
OEM Instrumentation Cable Manufacturing
Instrumentation cable construction can be customized with selected conductor size, pair or triad count, insulation, individual and overall screening, drain wire, armouring, outer sheath, cable printing, metre marking, drum labels and private-label packaging, subject to approved specifications and minimum order quantity.
Explore Our Instrumentation Cable Range
Compare available pair, triad, screening, armouring, insulation and sheath configurations for industrial instrumentation and process-control requirements.
Overall Screened Instrumentation Cable
Paired or triad instrumentation cable with an overall foil or braid screen for industrial signal transmission.
- Configuration Pairs / Triads
- Screen Overall Foil / Braid
- Insulation PVC / PE / XLPE
- Sheath PVC / LSZH
Individual Screened Instrumentation Cable
Each pair or triad is individually screened to help reduce interference between sensitive instrumentation circuits.
- Configuration Multi-Pair / Multi-Triad
- Screen Individual Foil
- Drain Wire Tinned Copper
- Application Process Signals
Individual & Overall Screened Cable
Individual pair or triad screens combined with an overall screen for demanding electrically noisy installations.
- Configuration Pairs / Triads
- Screen Individual + Overall
- Conductor Copper
- Sheath PVC / LSZH
Armoured Instrumentation Cable
Screened instrumentation cable with steel wire or steel tape armour for additional mechanical protection.
- Configuration Pairs / Triads
- Armour SWA / STA
- Screen Foil / Braid
- Sheath PVC / LSZH / PE
Need Help Selecting an Instrumentation Cable?
Share your pair or triad count, conductor size, insulation, individual or overall screening, drain wire, armouring, sheath material and required quantity.
Engineered for Accurate and Stable Signal Transmission
Instrumentation cable construction may include copper conductors, insulated pairs or triads, individual screens, an overall screen, inner sheath, armour and a protective outer sheath according to the approved product design.
Copper Conductors
Solid or stranded annealed copper conductors carry low-level analogue, digital and control signals.
Core Insulation
Each conductor is individually insulated using PVC, PE, XLPE or another approved compound according to the cable design.
Twisted Pairs or Triads
Insulated conductors are assembled into pairs or triads to support balanced signal transmission and organized circuit identification.
Individual Screening
Each pair or triad may include foil screening with a drain wire to help reduce pair-to-pair interference.
Overall Screening
An overall aluminium foil or copper braid screen may surround the cable core to help reduce external electrical interference.
Inner Sheath, Armour & Outer Sheath
Selected cable variants may include an inner sheath, steel wire or steel tape armour and a PVC, LSZH or PE outer sheath.
Flexible Packaging for Industrial & Export Projects
Fahad Cables supplies instrumentation cables in customer-specific drum lengths, OEM packaging and export-ready configurations for industrial automation, oil & gas, process plants and international projects.
Wooden Drum Supply
Instrumentation cables are supplied on durable wooden drums for safe storage, transportation and installation on industrial sites.
Custom Drum Lengths
Cable lengths can be manufactured according to customer specifications and project requirements.
Custom Cable Printing
Cable sheath printing may include company name, cable type, pair count, batch number, voltage rating and customer branding.
Private Label Packaging
OEM branding, drum labels, barcode stickers and customized packaging are available for approved production runs.
Export Documentation
Commercial documentation and export packaging can be supplied according to destination country requirements.
Worldwide Shipping
Instrumentation cables are prepared for regional and international deliveries using suitable export packaging methods.
Controlled Manufacturing for Reliable Signal Performance
Fahad Cables Industry FZE applies documented quality controls throughout instrumentation cable production, from conductor and compound inspection to pair assembly, screening, armouring, sheathing and final product release.
Final electrical, dimensional and mechanical requirements should always match the approved instrumentation cable datasheet and confirmed customer specification.
Conductor Inspection
Conductor material, strand construction and nominal size are checked before production.
Insulation Verification
Core insulation thickness, appearance and identification are reviewed during manufacturing.
Pair & Triad Assembly
Twisting, lay arrangement and pair or triad identification are checked.
Screening Verification
Individual foil screens, drain wires and overall shielding are reviewed where applicable.
Electrical Testing
Applicable continuity, conductor resistance, insulation resistance and voltage tests may be completed.
Dimensional Checks
Cable diameter, insulation thickness, sheath thickness and construction dimensions are reviewed.
Printing & Traceability
Product markings, pair count, batch details, metre marking and OEM printing are verified.
Final Drum Inspection
Cable length, drum condition, labels and shipment identification are checked before dispatch.
Control Cable
Reliable multicore control cables for automation systems, control panels and industrial machinery.
View Product
KNX Cable
Screened twisted-pair cable for KNX lighting, HVAC, energy and smart-building automation networks.
View Product
Fiber Optic Cable
Indoor and outdoor optical fiber cables for industrial and enterprise networks.
View Product
CAT6 Network Cable
High-performance LAN cable for commercial buildings, data centers and industrial Ethernet.
View ProductFrequently Asked Questions
Find answers about instrumentation cable construction, pairs and triads, screening, armouring, applications, packaging and OEM manufacturing.
What is an instrumentation cable?
An instrumentation cable is designed to carry low-level analogue, digital and control signals between field instruments, control systems, monitoring equipment and industrial process devices.
Where are instrumentation cables commonly used?
They are commonly used in oil and gas facilities, process plants, power stations, water-treatment systems, industrial automation, building management and monitoring applications.
What is the difference between pairs, triads and multicore cables?
Pair cables use two insulated conductors, triad cables use three, and multicore cables contain several individually insulated conductors. The correct arrangement depends on the connected instruments and system design.
Why are instrumentation cables screened?
Screening helps reduce the effect of electromagnetic interference on sensitive signals. Cables may use individual screens, an overall screen, or a combination of both.
What is the difference between individually screened and overall screened cable?
Individually screened cable has a dedicated screen around each pair or triad, while overall screened cable has one screen around the complete cable core.
Are armoured instrumentation cables available?
Yes. Selected cable designs may include steel wire armour or steel tape armour for installations requiring additional mechanical protection.
Can the cable be customized with our company name?
Yes. Custom sheath printing, pair identification, metre marking, product references, drum labels and approved OEM branding are available for qualified private label orders.
What packaging options are available?
Instrumentation cables may be supplied on wooden drums, reels or approved customer-specific packaging according to cable size, project length and shipment requirements.
