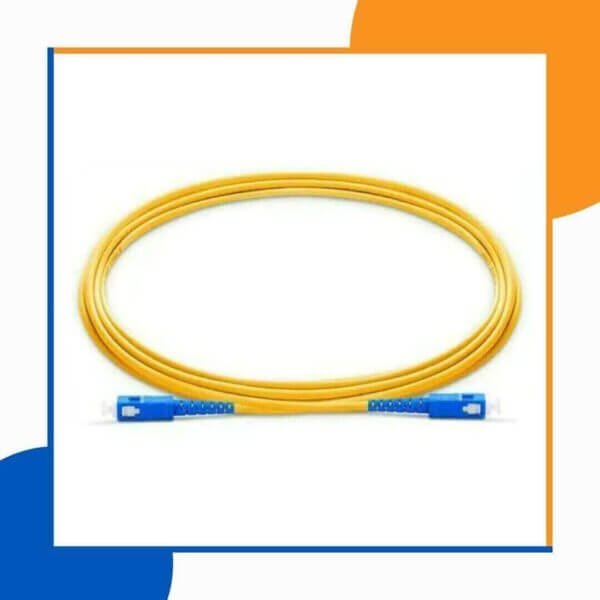

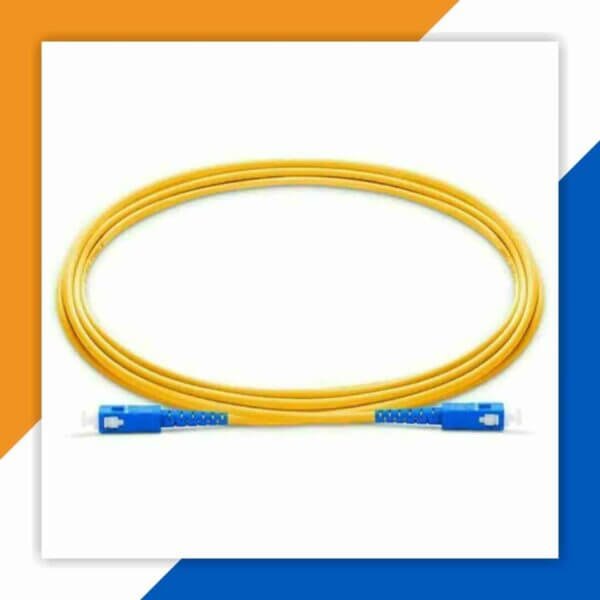

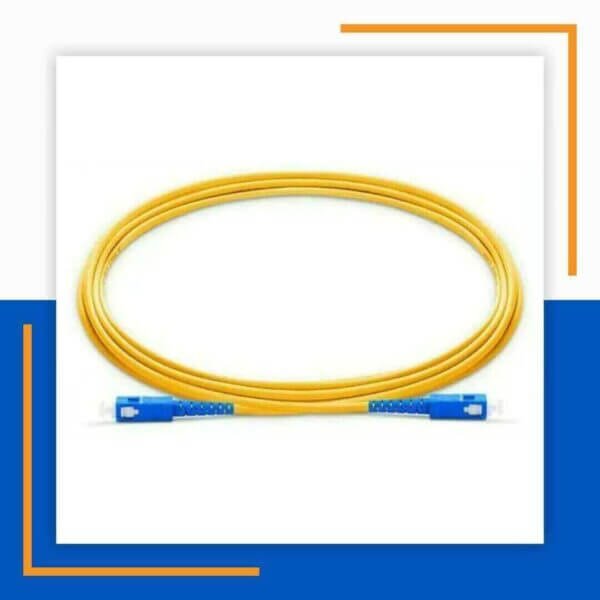

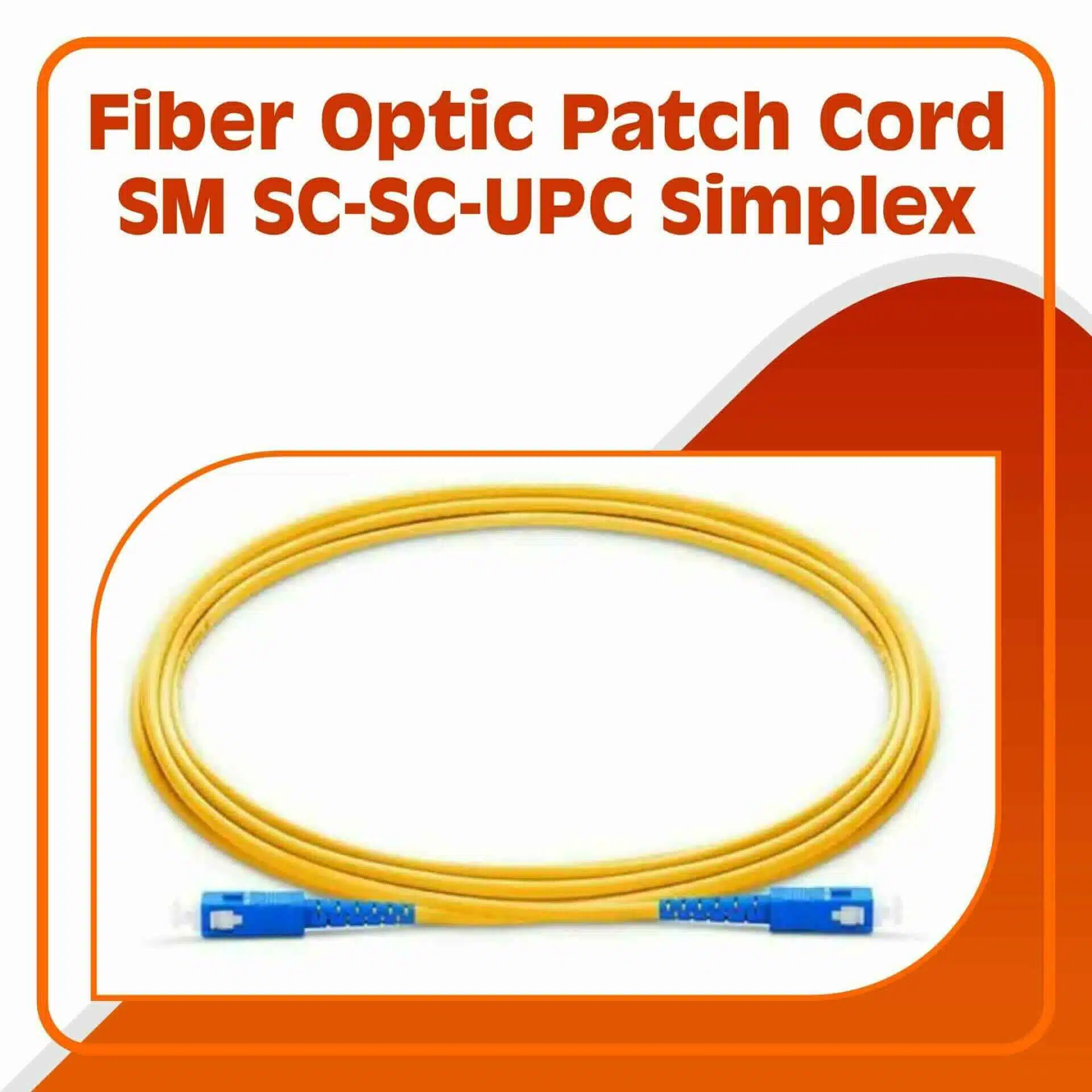

Fiber Optic Patch Cord SM SC-SC-UPC SX LSZH 10M

FAHAD CABLES Fiber Optic Patch Cord SM SC-SC-UPC Simplex LSZH 10 Meter

FAHAD CABLES SM SC-SC-UPC Simplex SM fiber patch cord lszh Fiber Optic Patch Cord SM SC-SC-UPC SX LSZH 10M 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the Fiber Optic Patch Cord SM SC-SC-UPC SX LSZH 10M

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

Optical Specifications
Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2

Multi mode OM-2                   Multi mode OM-3        Multi mode OM-4
≤0.3dB                                            ≤0.3dB                               ≤0.3dB
≥30dB                                             ≥30dB                                 ≥30dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
