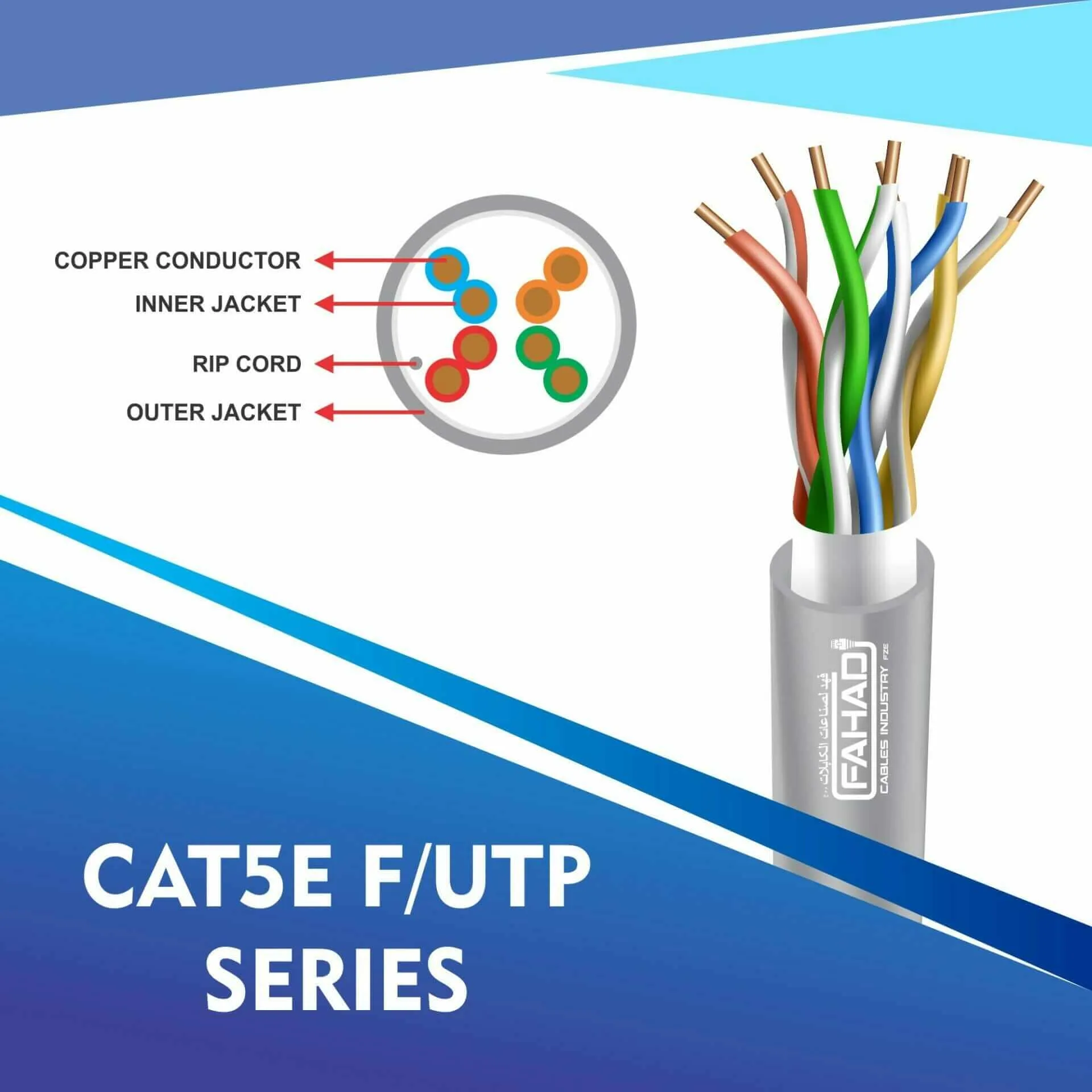

cat5e f/utp cable 305m

FAHAD CABLES cat5e f/utp cable 305m are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat5e f/utp cable 305m

Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails and optical communication for the past 20 Years.  Founded an ultra high-speed multimedia world with  full flash production facility in Sharjah Hamriya Free Zone (United Arab Emirates) to facilitate you throughout the telecommunication world.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: LSZH
Overall Coverage: Aluminum Foil Polyester Tape
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes fci P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: Cat5e f utp 5xxx5B LSZH Cable 24 awg 4 pair 305m
Item Code:
