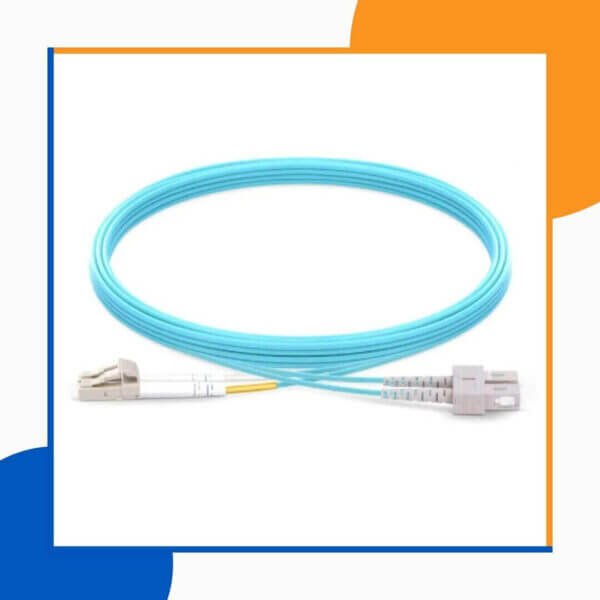

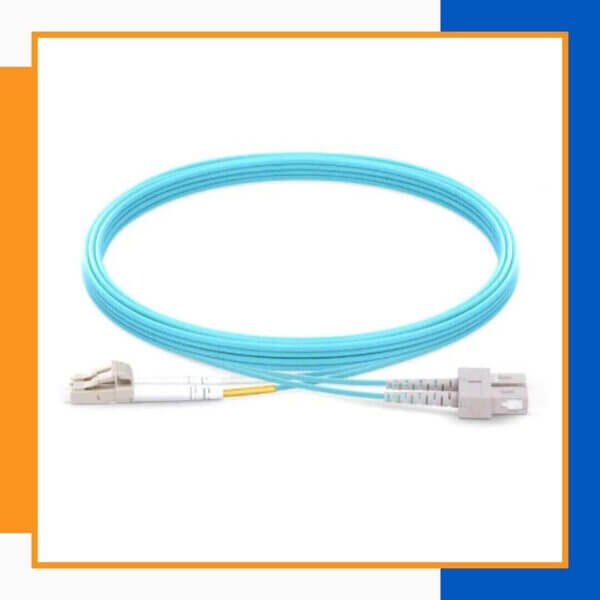

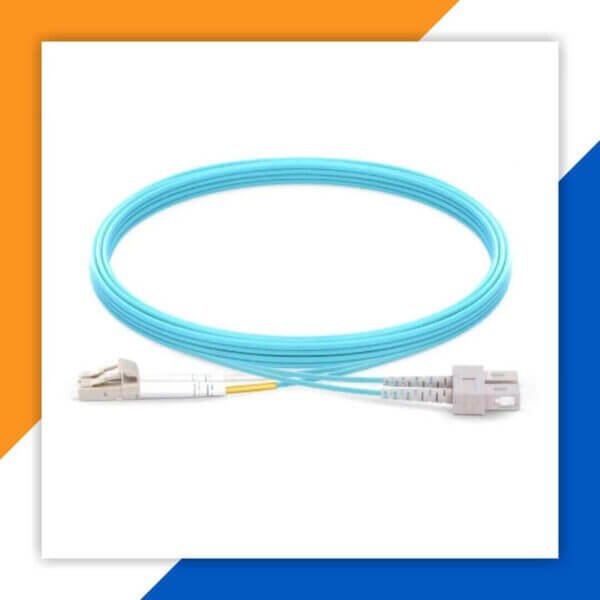

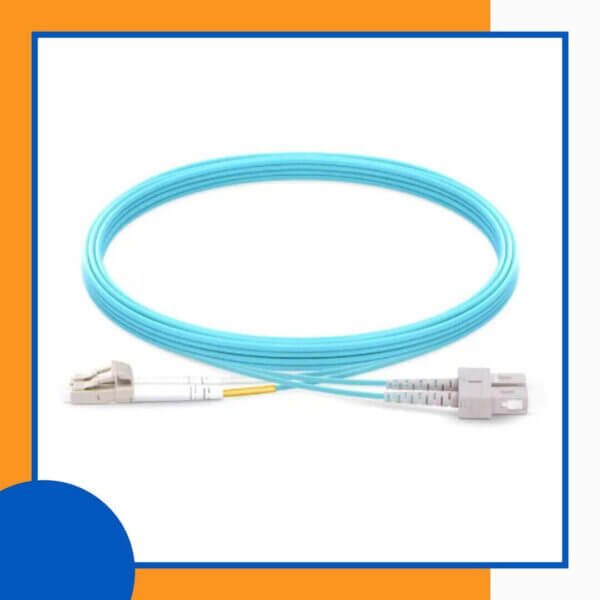

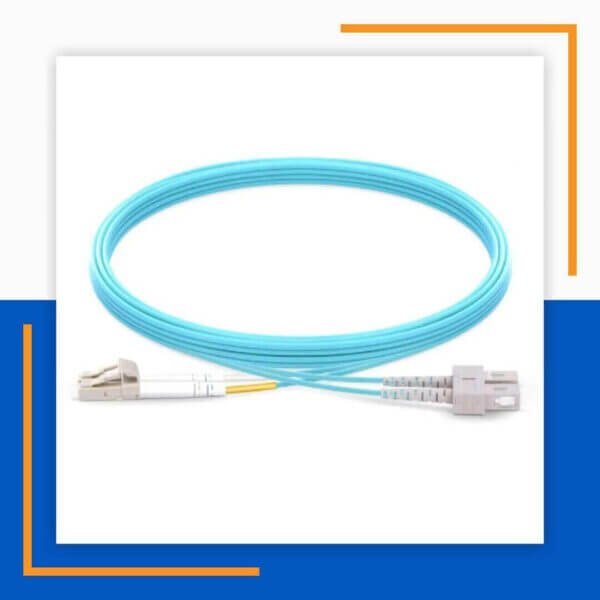

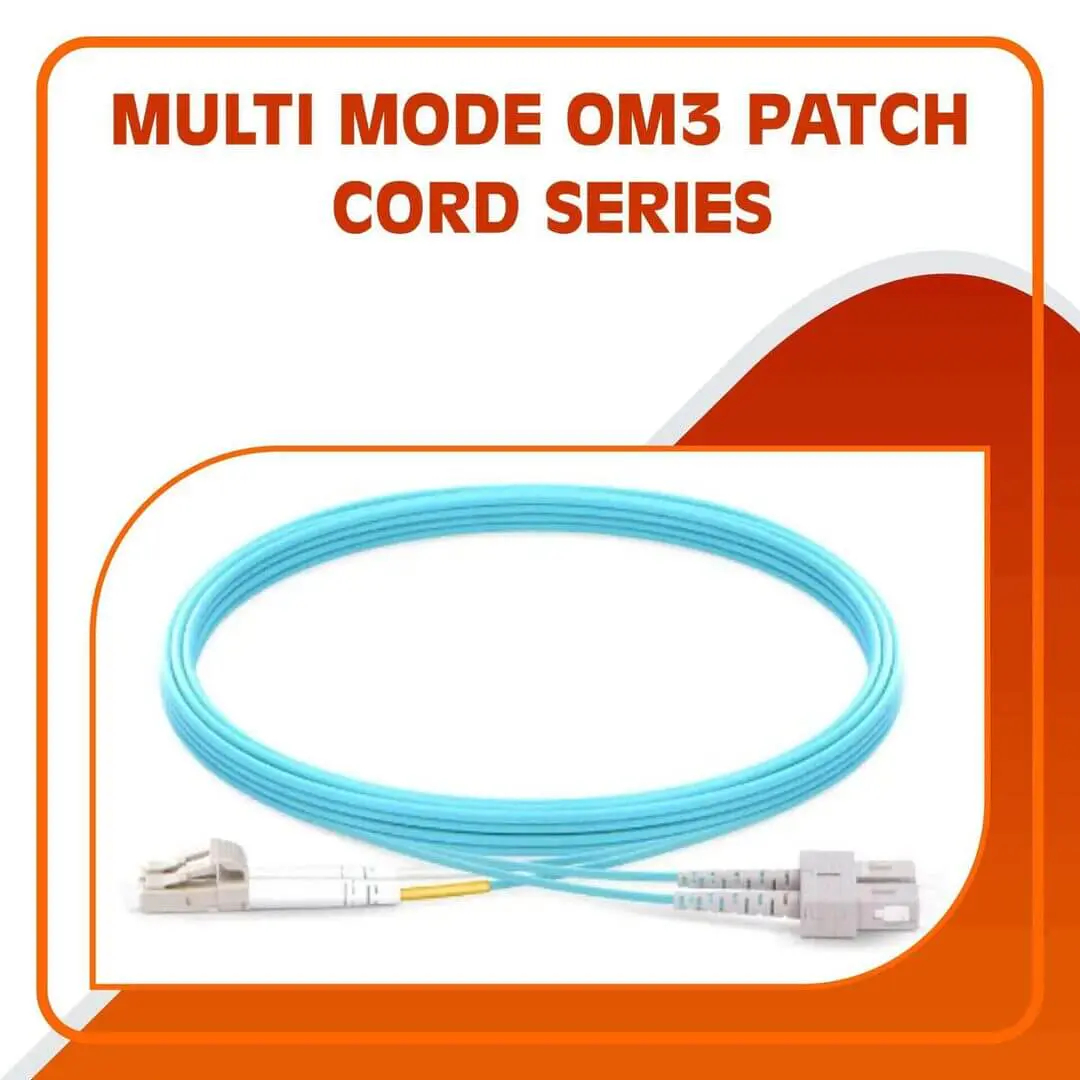

MultiMode SC to LC UPC Duplex LSZH om3 fiber patch cord
د.إ 30.00
General Specification
Mode type: Multi-Mode
Cable Type: Duplex
Connector Style: SC-LC
Fiber Type: OM3 50/125μm
Polish type :UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥30dB
Wavelength : 50/1300nm
Length : 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter
Model No :
Product ID :
FAHAD CABLES fiber patch cord MM SC to LC UPC Duplex LSZH om3
FAHAD CABLES fiber patch cord MM SC to LC UPC Duplex LSZH om3 10m High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing MultiMode SC to LC UPC Duplex LSZH om3 fiber patch cord 10m patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect
Optical General Specifications
Mode type: Single mode / multimode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100 Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2
