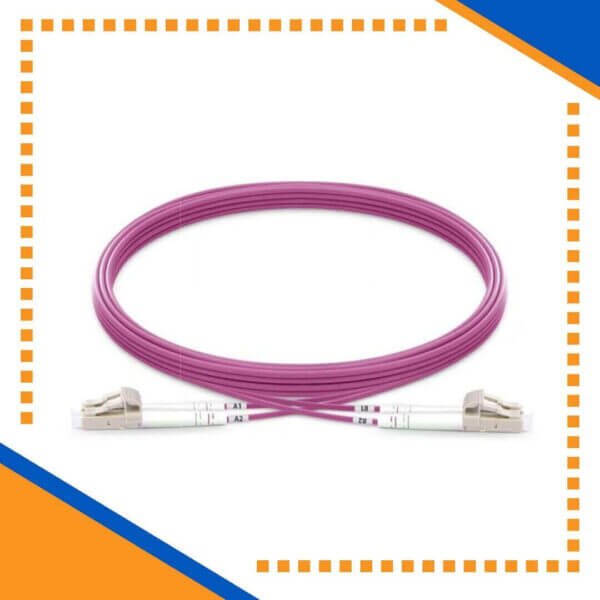

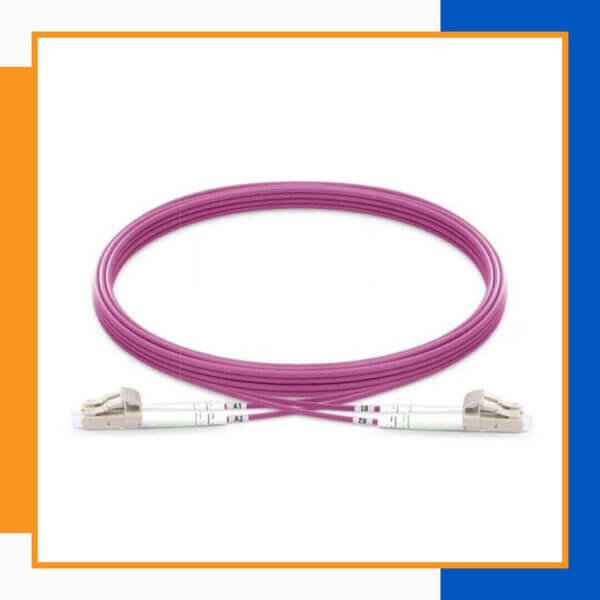

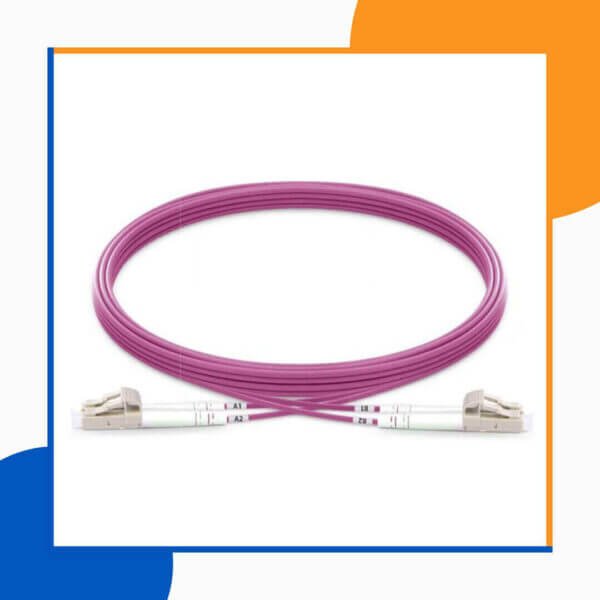

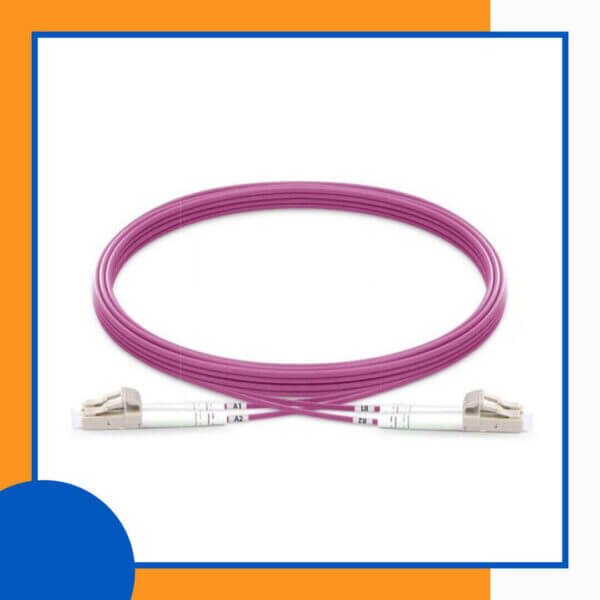

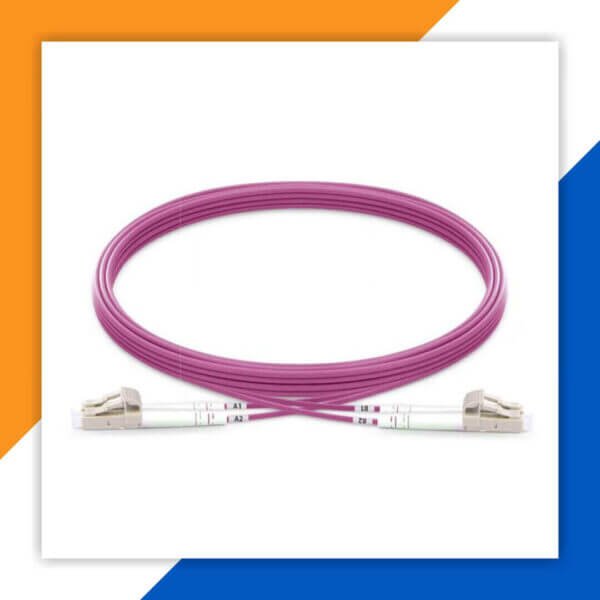

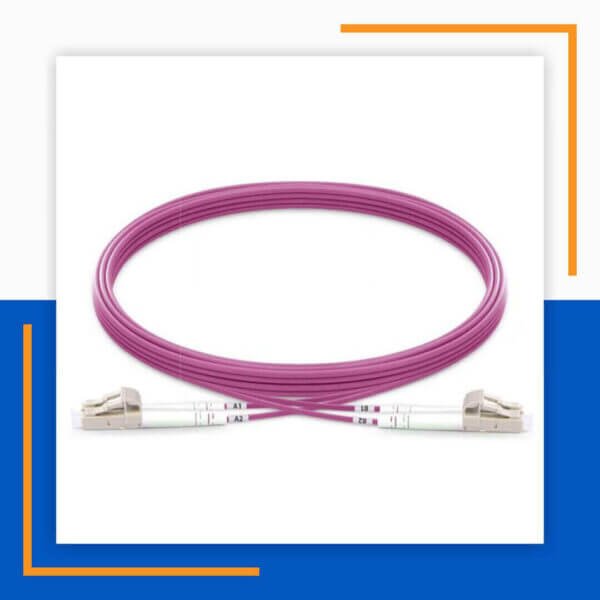

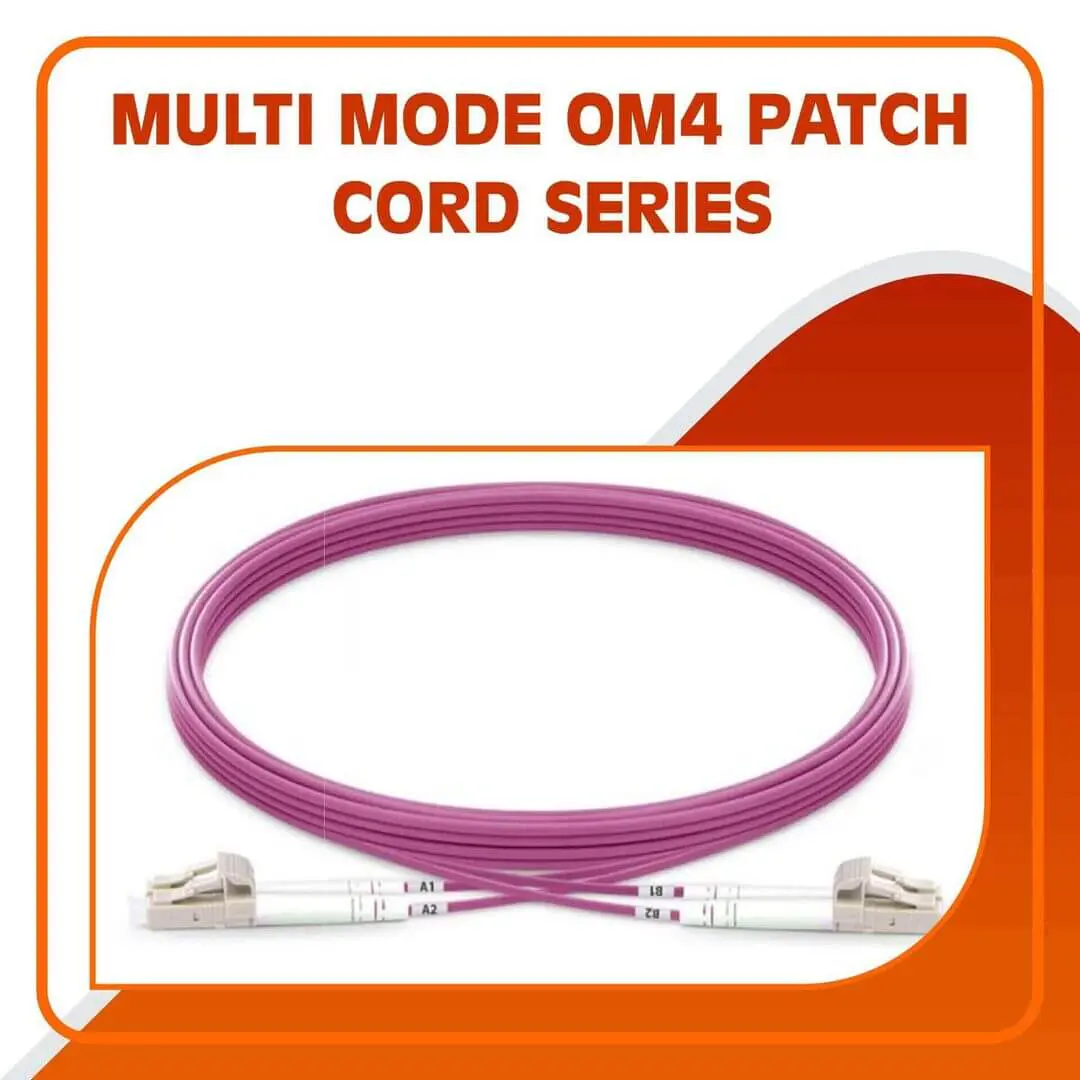

multimode fiber patch cord lc to lc upc duplex lszh om4 1M

FAHAD CABLES multimode lc-lc/upc duplex fiber cable lszh om4 1 meter

FAHAD CABLES multimode fiber patch cord lc to lc upc duplex lszh om4 1M are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, workstations fiber switches and servers fiber ,simplex cables, duplex fiber optic cables, multimode fiber single mode and multimode transmits data cable consists strand of glass cellular hubs and central offices. multimode lc lc fiber upc duplex fiber cable lszh om4 1M

FCI  Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous.
parameter test to ensure the highest in network performance. Fahad Cables Industry R Provide Local Manufacturing Facility for Fiber Optic Accessories Patch cord and Pigtail. at UAE, With Made in UAE Coo.

Optical Specifications

• Mode type: Single mode / multi mode
• Cable Type: Simplex/Duplex
• Connector Style: SC, FC, ST, LC, MTRJ,
• Polish Type: PC,UPC,APC
• Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
• Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
• Strength Member: Aramid Yarn
• Outer Jacket: LSZH/PVC/OFNR/OFNP
• Interchangeability &Vibration: ≤0.2dB
• Minimum Bend radius: 10 -13mm
• Wavelength: SM:1310/1550nm MM:850nm
• Operating temperature: -40~75°C
• Jacket Color
• Single mode: Yellow / Green, Yellow Blue
• Storage temperature: -45~85°C
• Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
• Fiber type: ITU-T G.652D, G.657A1 /A2
