Name: SC to LC UPC fiber optic patch cord Multimode Duplex -fci
Brand: Fahad Cables
SKU: FCI-3725
Rating: 5.00 (1 reviews)

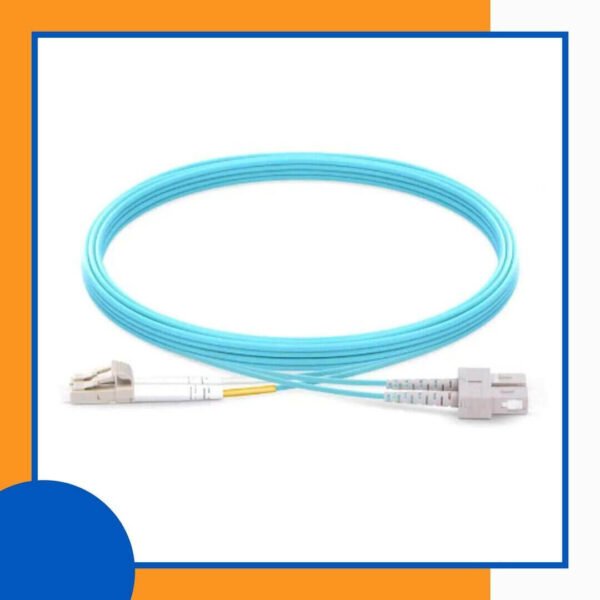

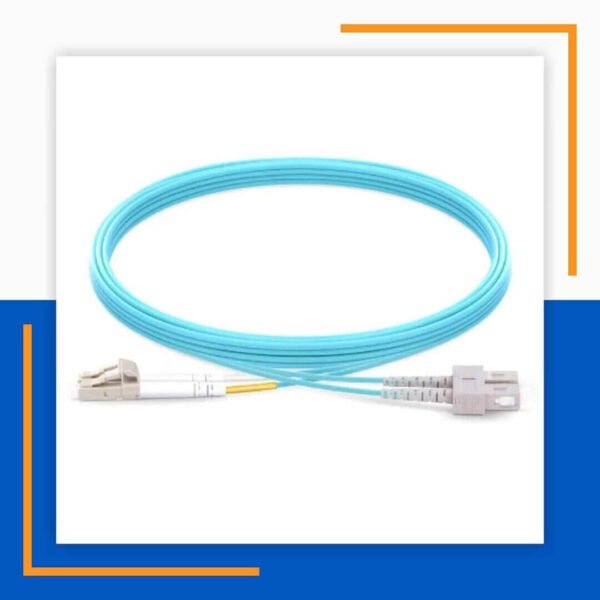

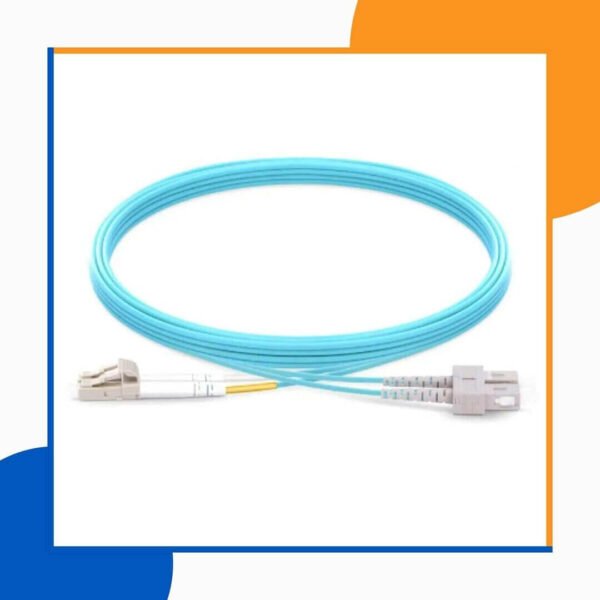

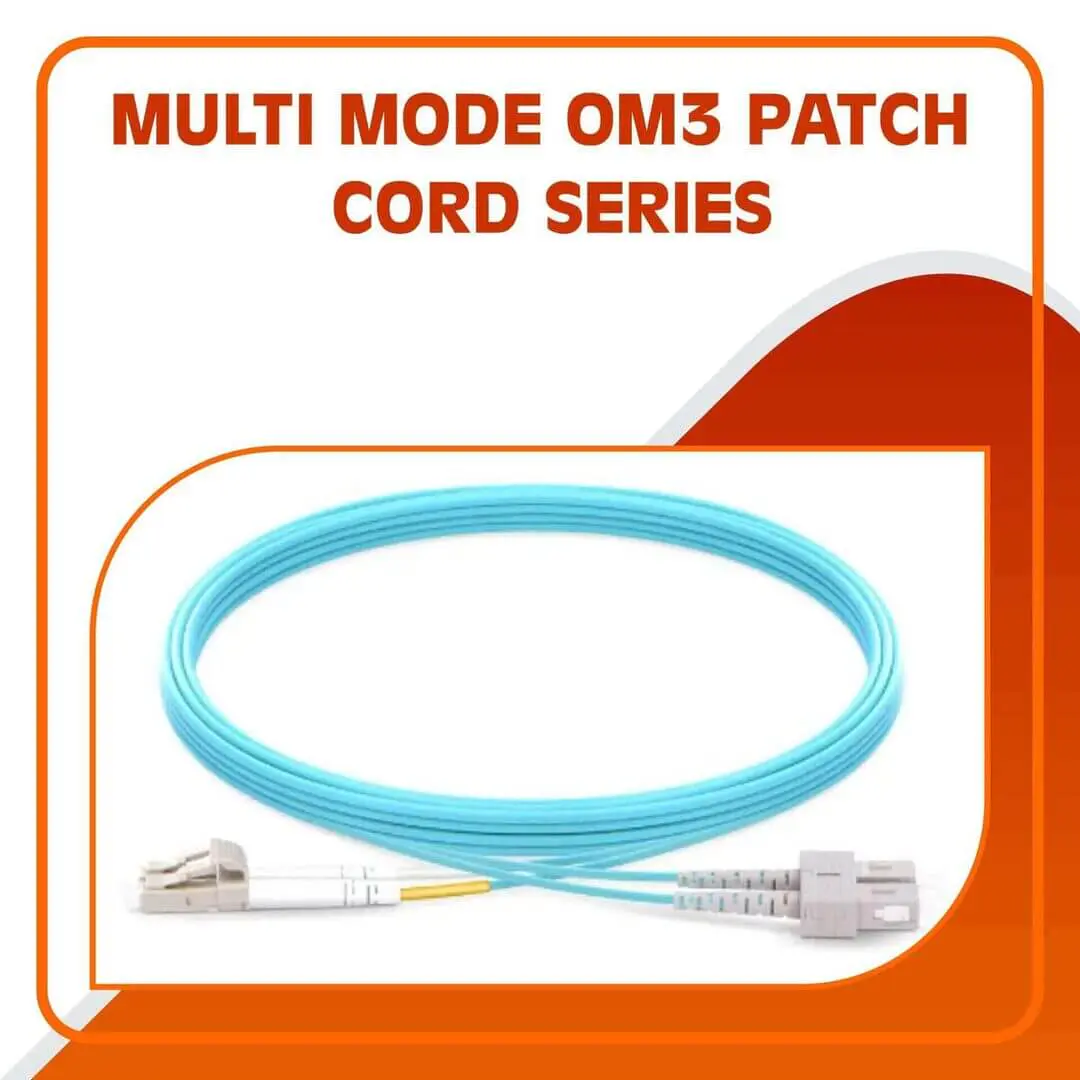

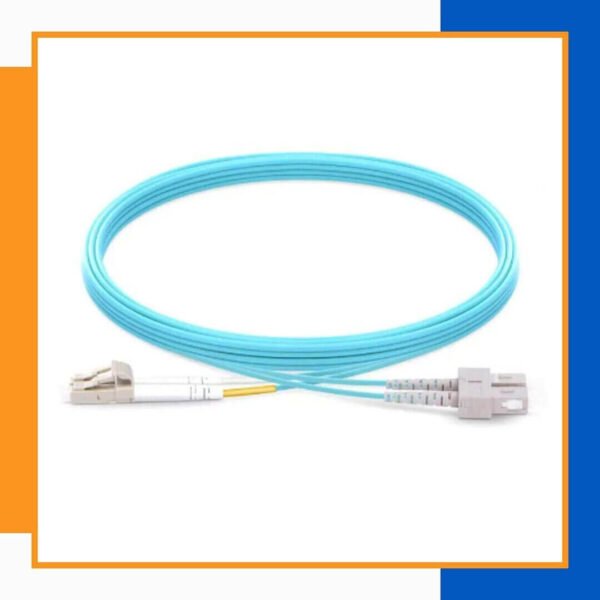

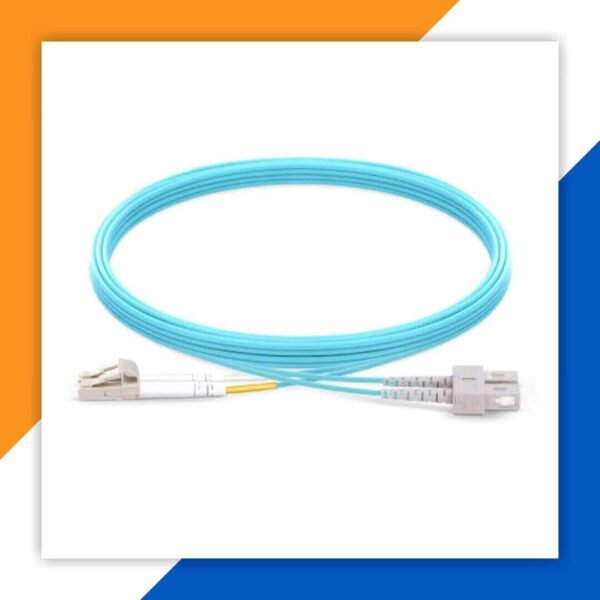

SC to LC UPC fiber optic patch cord Multimode Duplex LSZH om3 5m

Rated 5.00 out of 5 based on 1 customer rating

General Specification
Mode type : Multi-Mode
Cable Type : Duplex
Connector Style: SC-LC
Fiber Type : OM3 50/125μm
Polish type :UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥30dB
Wavelength : 50/1300nm
Length : 5Meter
Model No : FCI-3725
Product ID : D33405A

Description

FAHAD CABLES fiber optic patch cord MM SC to LC UPC Duplex LSZH om3 5m

FAHAD CABLES SC to LC UPC fiber optic patch cord Multimode Duplex LSZH om3 5m High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber
patches in data centers, head-ends, cellular hubs and central offices.

FAHAD CABLES Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous.
parameter test to ensure the highest in network performance.

Optical Specifications

Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2

PHYSICAL AND MECHANICAL PROPERTIES
Mode type	Single-mode
Cable Type	Simplex
Connector Style	SC-SC
Fiber Type	ITU-T G.652D
Polish type	APC
Diameter	2.0mm
Outer Jacket	LSZH
Insertion loss	≤0.3dB
Return loss	≥60dB
Wavelength	SM,1310/1550nm
Length	1Meter

Ordering Information
Model No	Item Code	Description
FCI-3401	S51101Y	fiber optic patch cord single mode sc-sc-apc simplex lszh 1meter

Additional information

Brand	Fahad Cables
Length	1m , 2m , 3m , 4m , 5m , 8m , 10m , 15m , 20m , 25m , 30m , 40m , 50m , 70m , 100m
