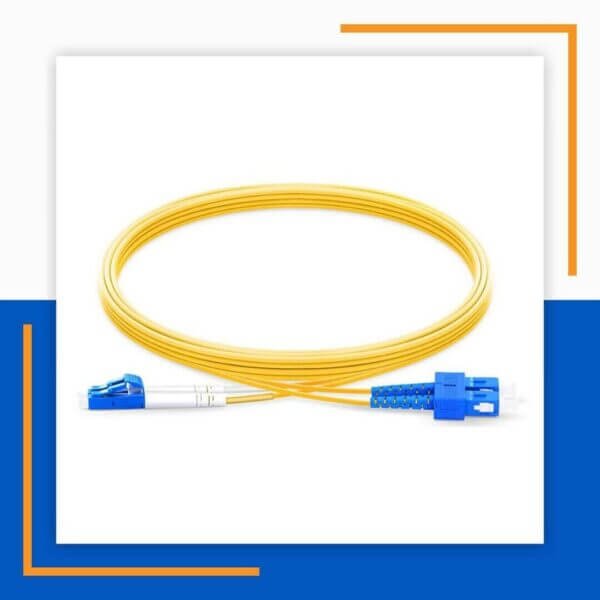

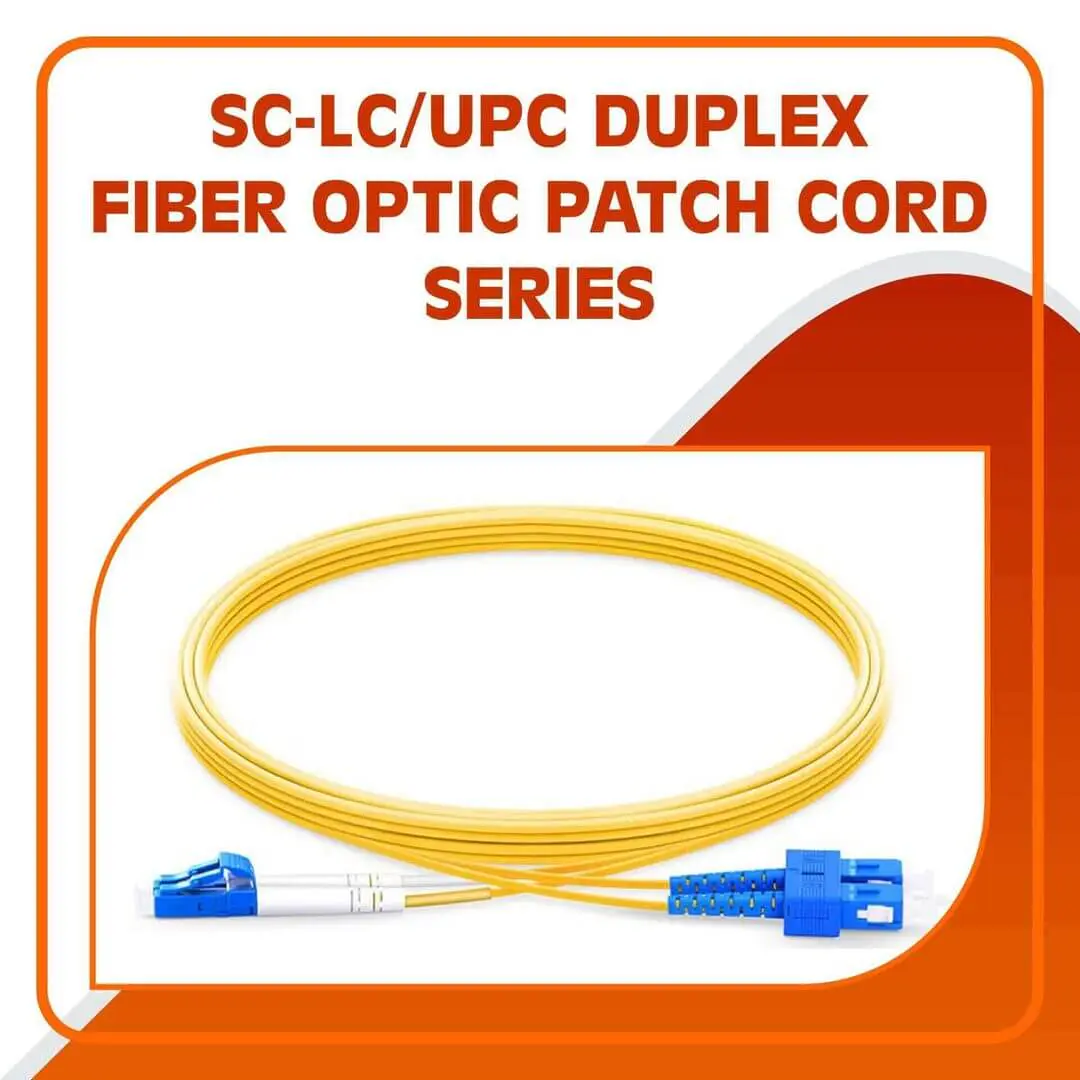

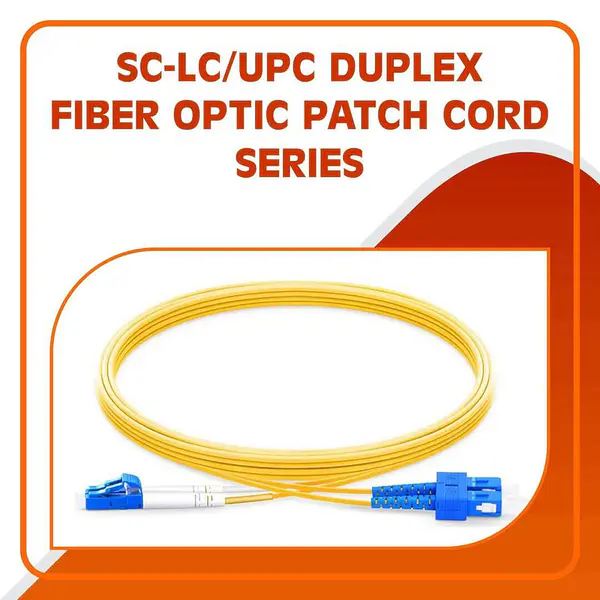

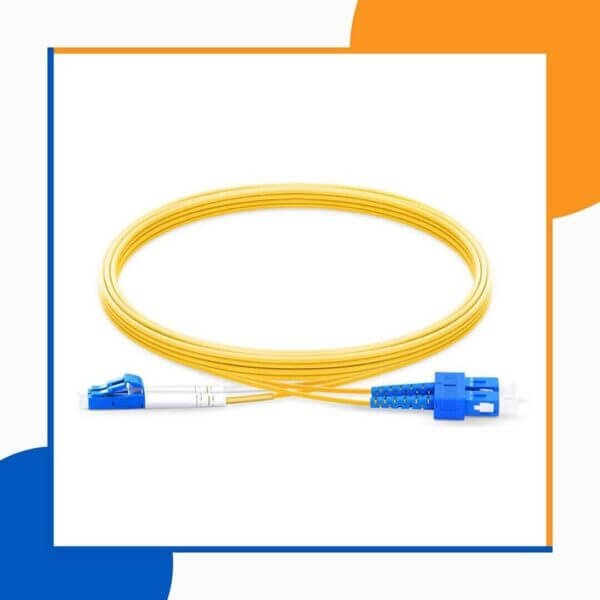

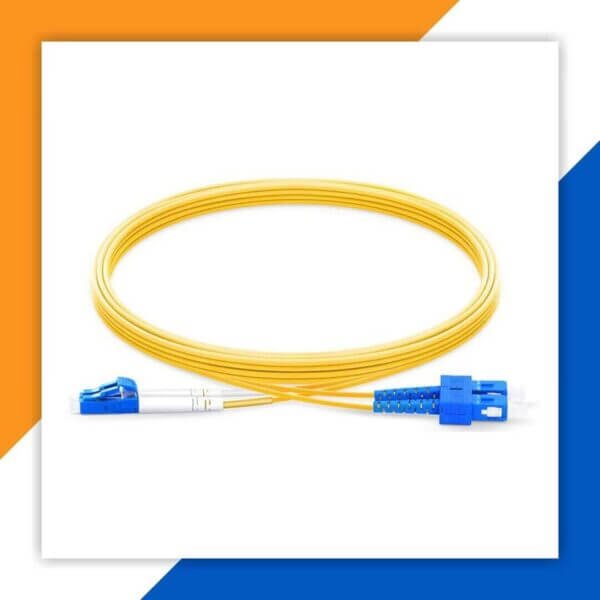

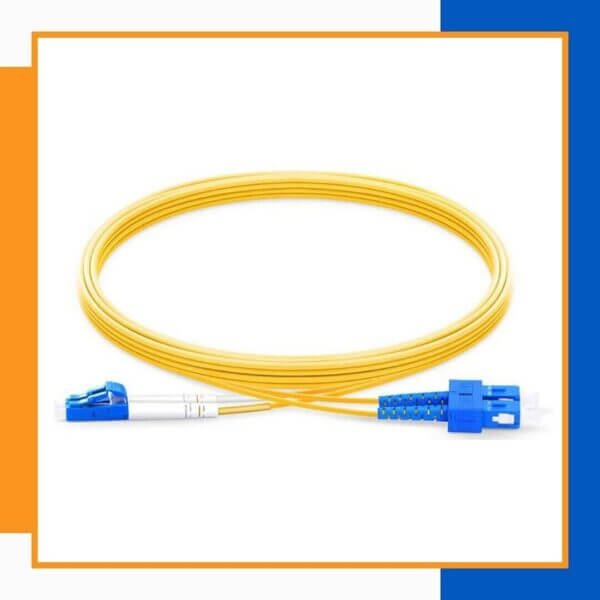

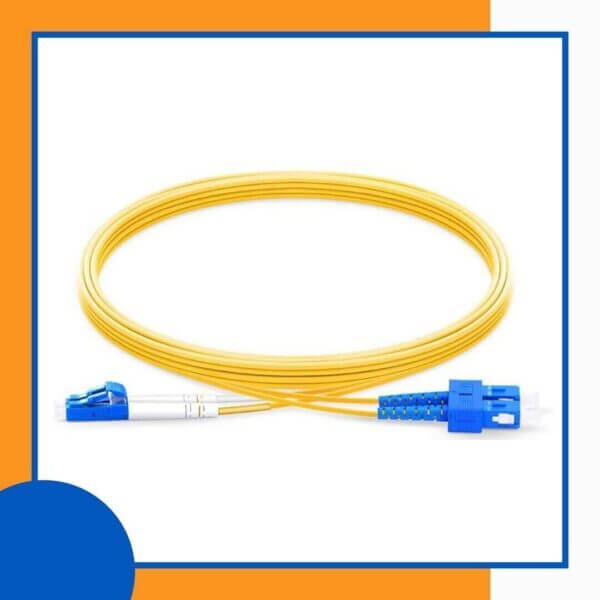

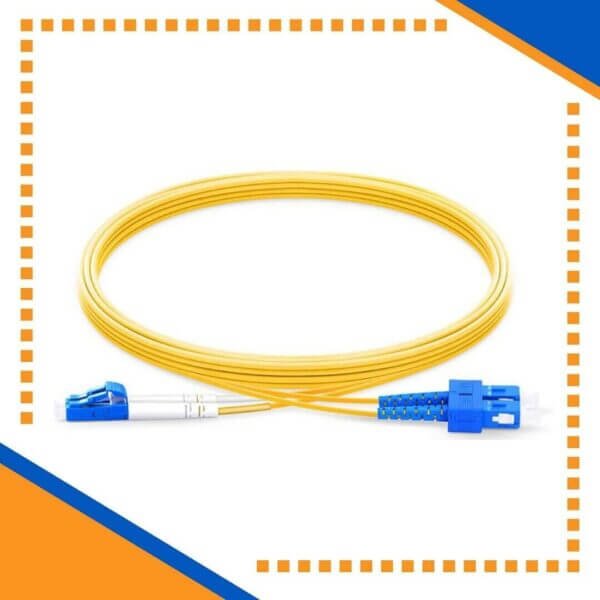

Fiber Optic Patch Cord SM SC-LC-UPC Duplex LSZH 10m

Rated 5.00 out of 5 based on 1 customer rating

د.إ 12.00 – د.إ 80.00

General Specification
Mode type : Single Mode
Cable Type : Duplex
Connector Style : SC-LC
Fiber Type : ITU-T G.652D
Polish type :UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥50dB
Wavelength : SM,1310/1550nm
Length : 10Meter
Model No : FCI-3580
Product ID : D13410B

Description

FAHAD CABLES Fiber Optic Patch Cord Single Mode SC-LC-UPC Duplex LSZH

10meter High Quality and Cost-effective Fiber Optic Patch Cord SM SC-LC-UPC Duplex LSZH 10m Cords are used to provide optical connection for fiber optic patch chord electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

FAHAD CABLES Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, lc to sc patch cord Fiber Optic Patch Cord lc to lc patch cord SM SC-LC-UPC Duplex LSZH 10m OM5 or OS2 fiber parameter test to ensure the highest in network performance. Fahad Cables Industry R Provide Local Manufacturing Facility for Fiber Optic Accessories Patch cord and Pigtail. at UAE, With Made in UAE Coo.

Optical Specifications

Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2

PHYSICAL AND MECHANICAL PROPERTIES
Mode type	Single-mode
Cable Type	Simplex
Connector Style	SC-SC
Fiber Type	ITU-T G.652D
Polish type	APC
Diameter	2.0mm
Outer Jacket	LSZH
Insertion loss	≤0.3dB
Return loss	≥60dB
Wavelength	SM,1310/1550nm
Length	1Meter

Ordering Information
Model No	Item Code	Description
FCI-3401	S51101Y	Fiber Optic Patch Cord Single Mode SC-LC-UPC Duplex LSZH 10meter

Additional information

Brand	Fahad Cables
Length	1m , 2m , 3m , 4m , 5m , 8m , 10m , 15m , 20m , 25m , 30m , 40m , 50m , 70m , 100m
