CAT5E F/UTP SERIES
Standards:CAT5e ANSI/TIA/568.2-D 100 MHz CENELEC EN 50288-3 CAT5e IEC 61156-5 (ISO/IEC-11801 Class D)
| PHYSICAL AND MECHANICAL PROPERTIES | |
| Basic Conductor | Copper |
| Conductor Size | 24AWG |
| Insulation | HDPE |
| Number of insulated conductors | 8, twisted in 4 pairs |
| Color Code of Pairs | Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown |
| Outer Jacket | LS0H Halogen free flame retardant or PVC compound |
| Standard Jacket Color | Black/Blue /Grey/Violet/Orange |
| Standard Surface Marking | Includes TMT GLOBAL P/N, cable description, Meter mark and Batch Number |
| Pulling force | 50 N/mm2 max. |
| Short Term Bend Radius | 6xOD (mm) |
| Storage Temperature | -20 to 80C |
| Temperature operating range | -20 to 60C |
| Installation temperature range | 0 to 50C |
| Flame Test | IEC 60332-1 |
| ELECTRICAL SPECIFICATIONS | |||
| Characteristic Impedance | 100―6 Ohm @ 1-100 MHz | Dielectric strength | 1500 Volts/1 minute min rms |
| DC Resistance | 93 Ohm/Km max. | Velocity of Propagation (NVP) | 67-69% |
| Resistance unbalance | 2% max. | Insulation Resistance | 5000 Mega Ohm•Km min. @ 500 Vdc |
| Mutual Capacitance | 5.6 nF/100m Max. @ 1 KHz | Coupling attenuation | 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz |
| Cap. Unbalance (wire to ground) | 1500 pF/Km max. @ 1 KHz. | ||
| Voltage rating | 72 Vdc max. | ||
| Ordering Information | ||
| Item Code | Description | |

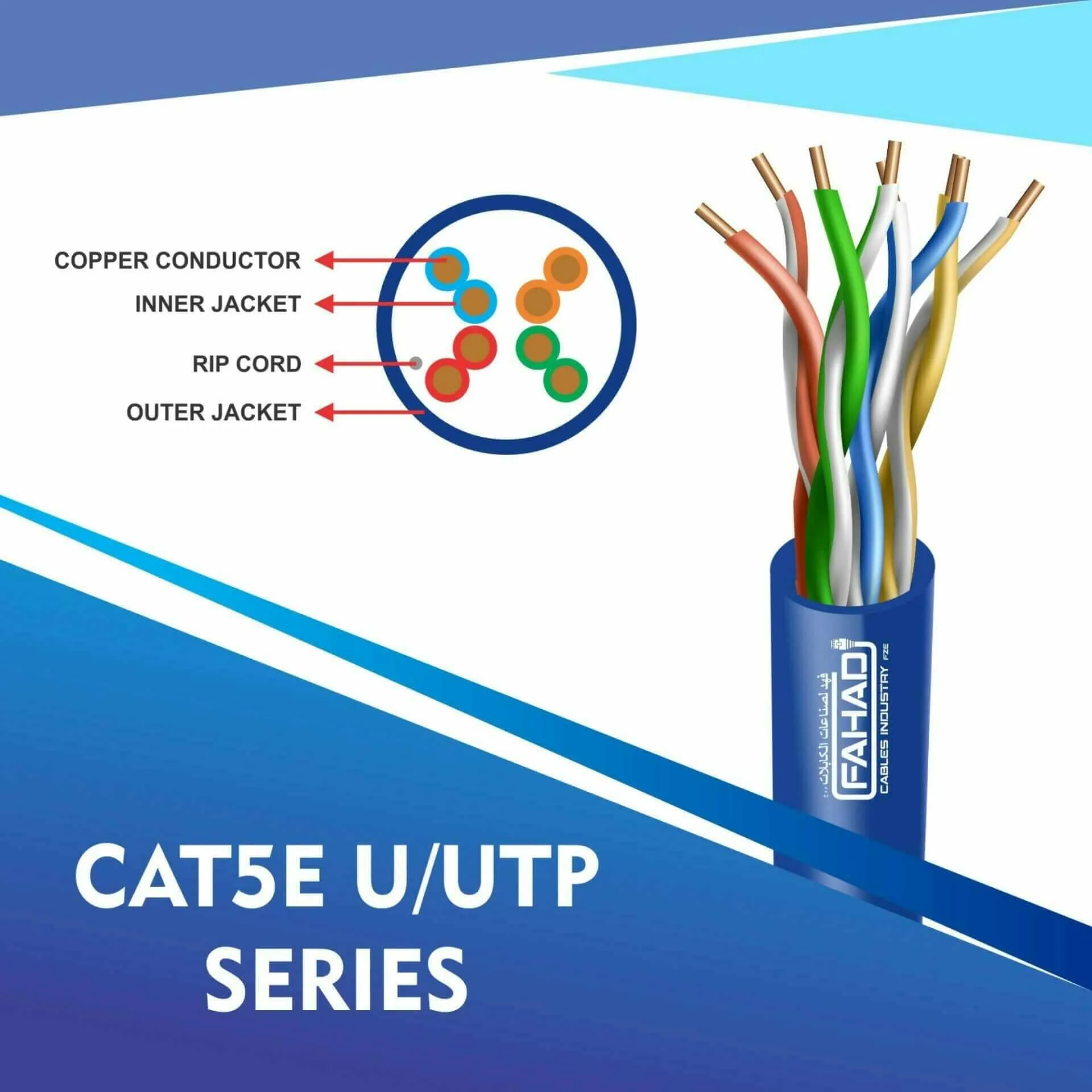

| 5X142MPB | CAT5E U/UTP SERIES | |
