2 core FTTH fiber optic cable LSZH
د.إ 2.00
General Specification
Products : FTTH Fiber optic cable single mode
Fiber Count : 2
Fiber Type :ITU-T G.657A1/A2,G.652D
Outer Jacket : LSZH, WHITE
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±
Product ID : FCI-025TLW
Description

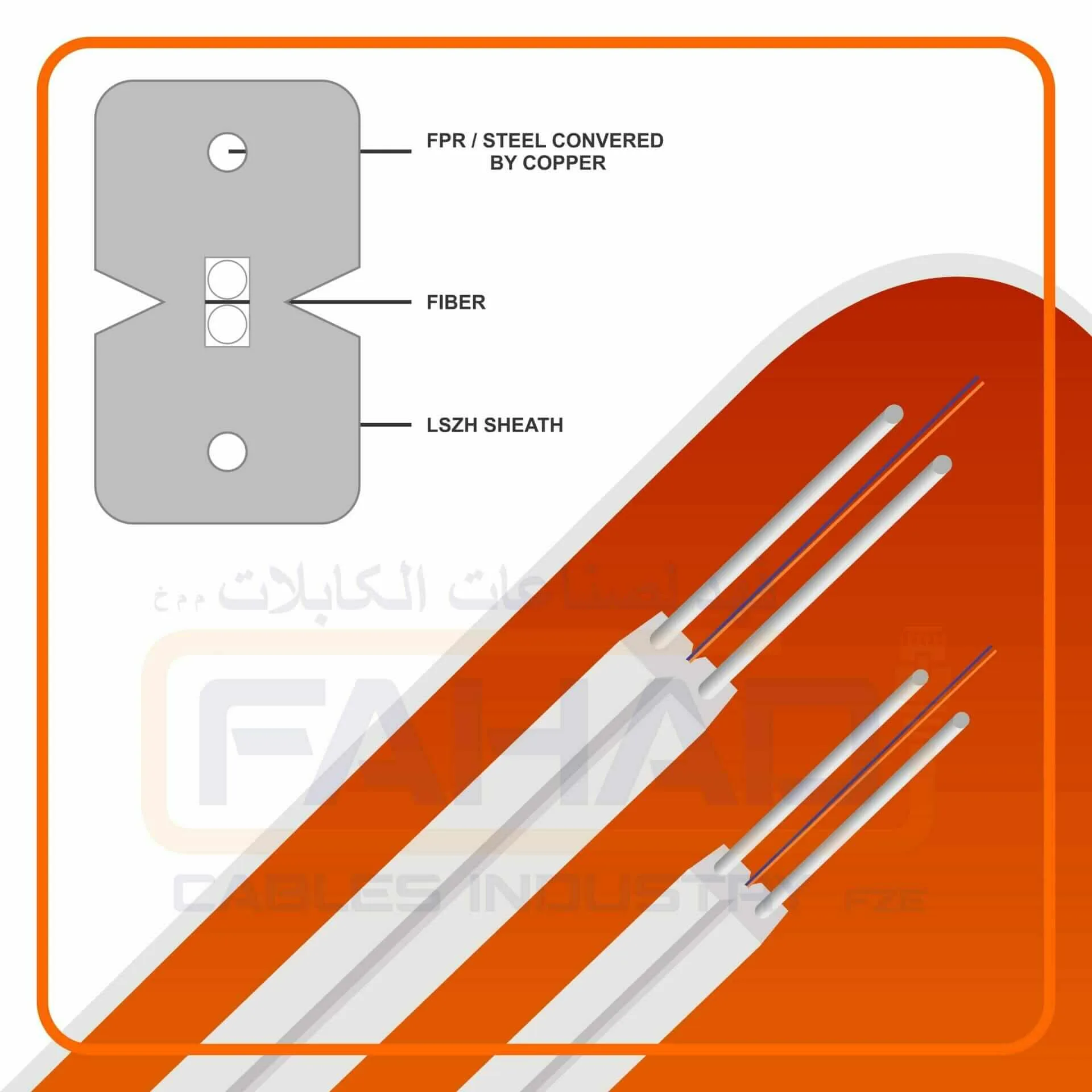

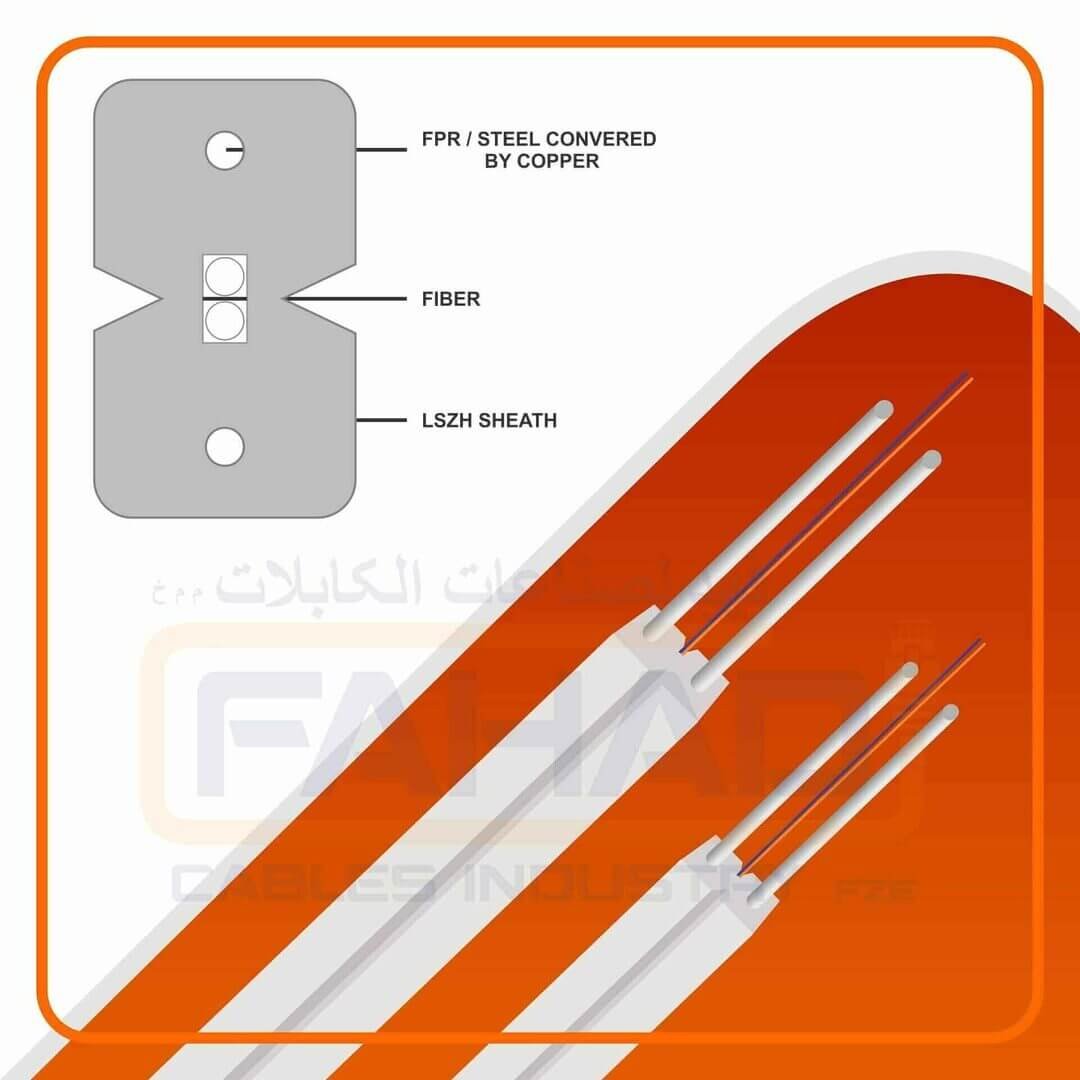

FAHAD CABLES Single mode Indoor Optical Fiber Cable Tight Buffered 2,4-Core LSZH
FAHAD CABLES provides high-strength 2 core FTTH fiber optic cable LSZH optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. FAHAD CABLES optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard.2 core FTTH fiber optic cable LSZH
| DESCRIPTION | Packing Detail | ||
| Products | FTTH Fiber optic cable single mode | Fiber Count | 2,4 |
| Applications | The specifications are suitable for the general requirements of fiber optic telecommunicating and FTTH application | Cable Diameter(mm) | 3.0/2.0 ± |
| Fiber Type | ITU-T G.657A1/A2,G.652D | Cable Weight(kg/km) | 9± |
| Outer Jacket | LSZH, WHITE | Length/ Drum | 2000 m Drum ± |
| Specification | |||
| Fiber type | ITU-T G.652D | ITU-T G.657/A1 | ITU-T G.657/A2 |
| Attenuation (max/KM) | 0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm) | 0.35 dB/km (1310 nm) 0.22 dB/km (1550 nm) | 0.35 dB/km (1310 nm) 0.22 dB/km (1550 nm) |
| Tensile Load | 40 – 100 N | 40 – 100 N | 40 – 100 N |
| Cladding diameter | 125 ± 0.3 μm | 125 ± 0.7 μm | 125 ± 0.7 μm |
| Core/Clad Concentricity error | ≤ 0.5 μm | ≤ 0.5 μm | ≤ 0.5 μm |
| Zero dispersion wavelength | 1300nm≤ ≤1324nm | 1300nm≤ ≤1324nm | 1302nm≤ ≤1322nm |
| Cladding non-circularity | ≤ 0.7 % | ≤ 0.7 % | 1% |
| Coating diameter | 245 ± 10 μm | 242 ± 7 μm | 240 ± 5 μm |
| Cut Off Wavelength | ≤ 1260nm | ≤ 1260nm | ≤ 1260nm |
| Proof Test | ≥ 1% (100kpsi or 0.7GPa) | ≥ 1% (100kpsi or 0.7GPa) | ≥ 1% (100kpsi or 0.7GPa) |
| Macro bending Attenuation : (10 turn on a 15 mm radius mandrel) | ≤ 0.25 dB @1550 nm | ≤ 0.5dB @1550 nm | |
| Crush Resistance | 220 N/cm | L,1000 N/cm, | IEC 60794-1-2-E3 |
| Temperature Range | -20 to +60 C | -20 to +60 C | IEC 60794-1-2-F1 |
| Model No | Product ID | Ordering Information |
| FCI-3002 | FCI-025TLW | 2 COR SINGLE MODE INDOOR TIGHT BUFFERED FTTH FIBER OPTIC CABLE LSZH G.657 A1/A2 |
