Name: SC-SC UPC fiber optic patch cord - FCI
Brand: Fahad Cables
SKU: FCI-3710
Rating: 5.00 (1 reviews)

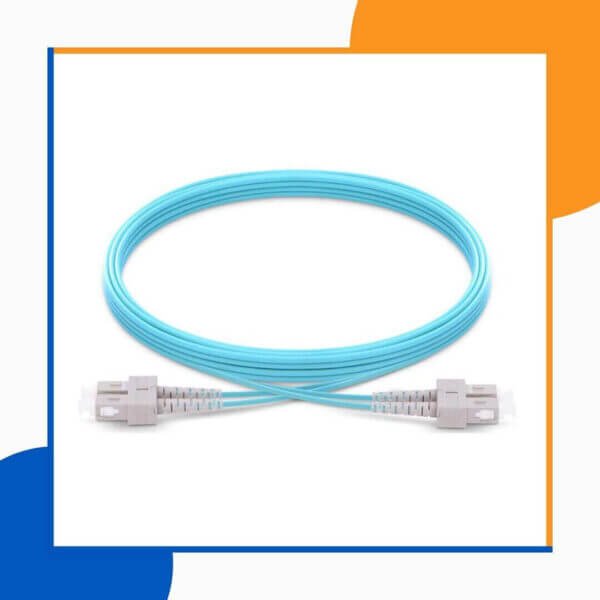

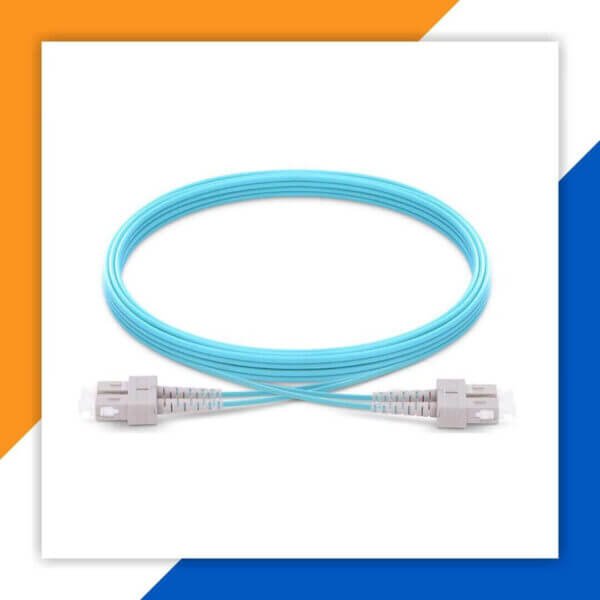

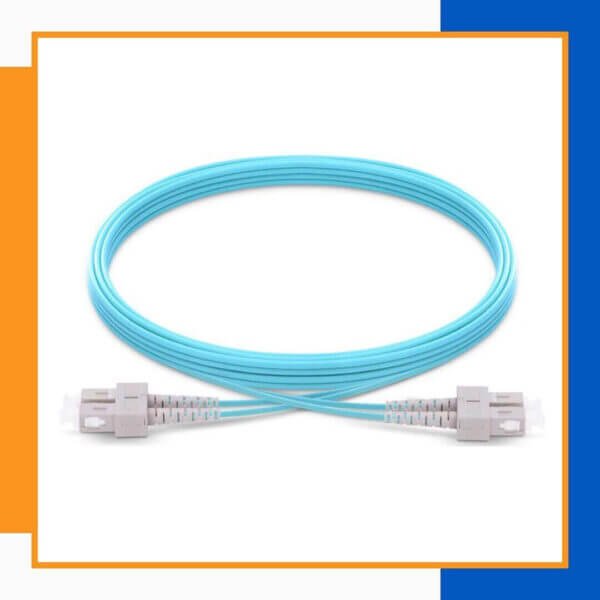

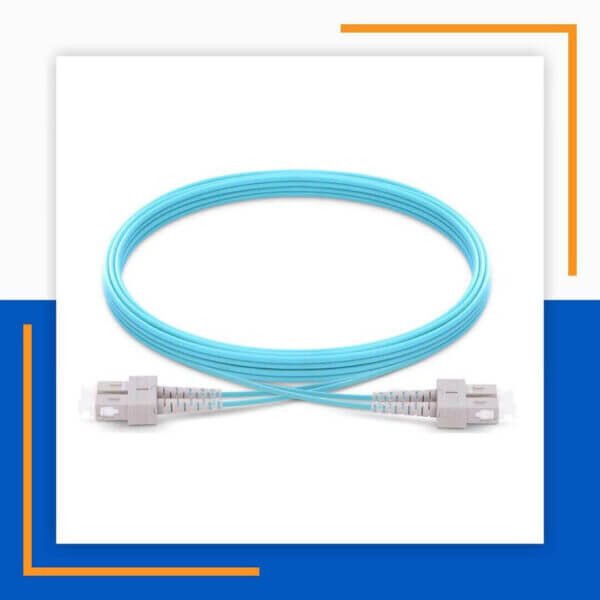

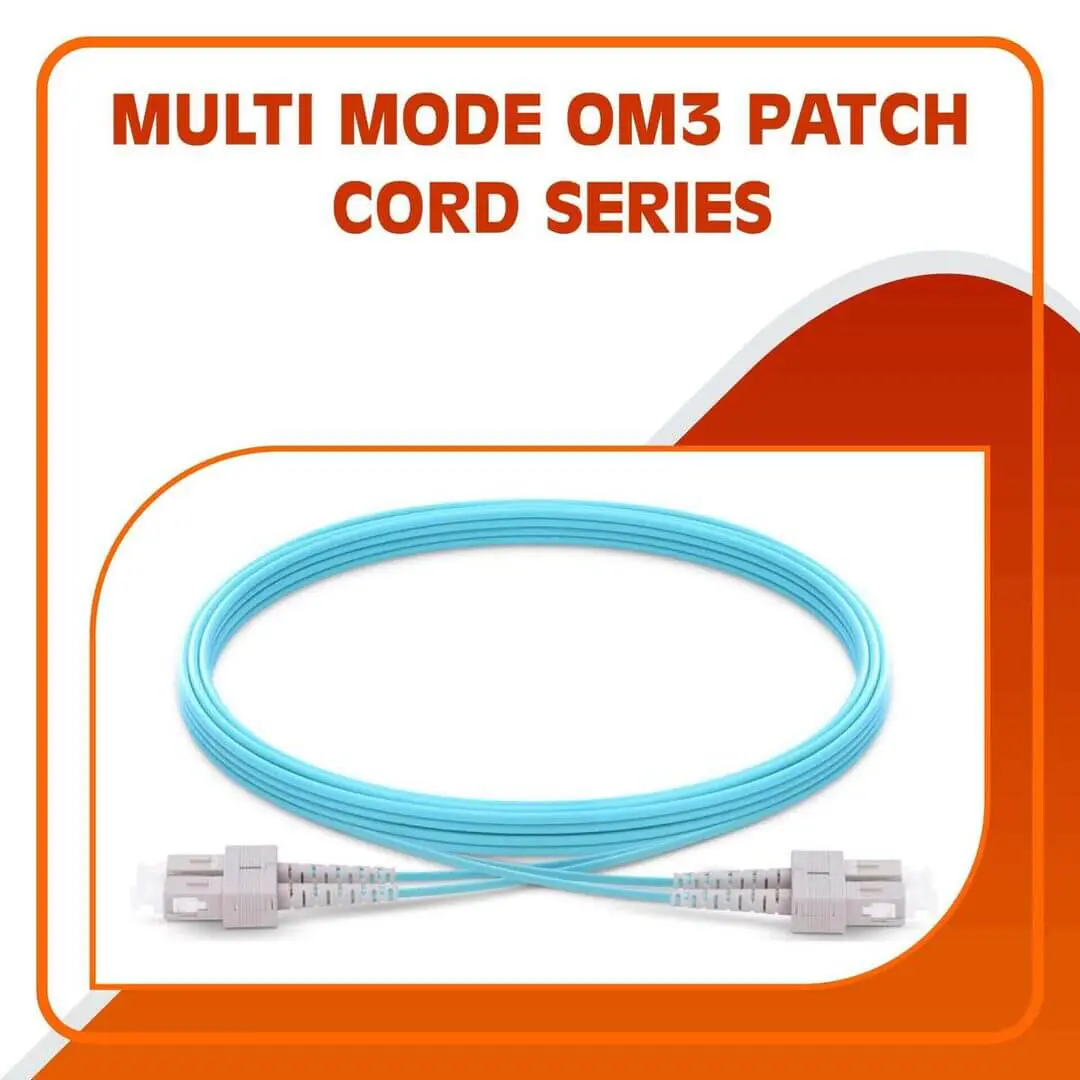

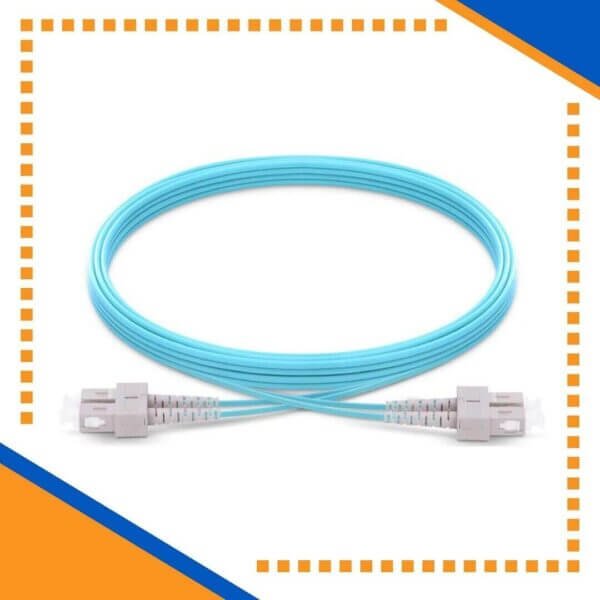

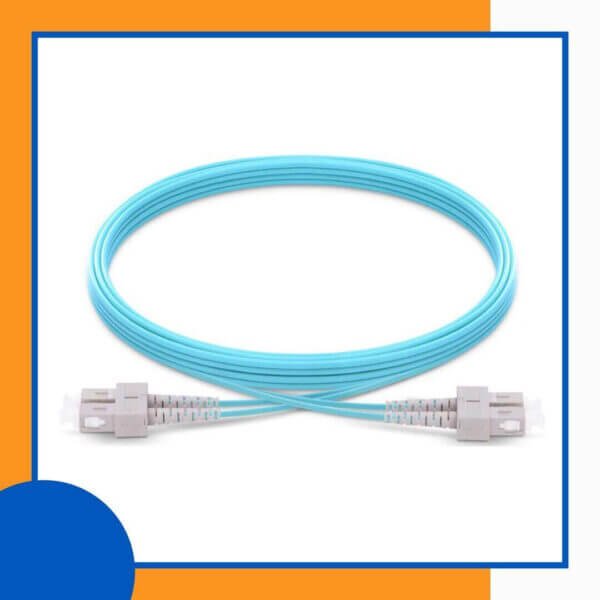

SC-SC UPC fiber optic patch cord mm Duplex LSZH om3 10m

Rated 5.00 out of 5 based on 1 customer rating

General Specification
Mode type: Multi-Mode
Cable Type: Duplex
Connector Style: SC-SC
Fiber Type: OM3 50/125μm
Polish type: UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥30dB
Wavelength: 850/1300nm
Length: 10Meter
Model No: FCI-3710
Product ID : D33310A

Description

FAHAD CABLES SC-SC UPC fiber optic patch cord mm Duplex LSZH om3 10m

FAHAD CABLES High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. .SC-SC UPC fiber optic patch cord mm Duplex LSZH om3 10m

FAHAD CABLES Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber

Optical Specifications

Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2

PHYSICAL AND MECHANICAL PROPERTIES
Mode type	Single-mode
Cable Type	Simplex
Connector Style	SC-SC
Fiber Type	ITU-T G.652D
Polish type	APC
Diameter	2.0mm
Outer Jacket	LSZH
Insertion loss	≤0.3dB
Return loss	≥60dB
Wavelength	SM,1310/1550nm
Length	1Meter

Ordering Information
Model No	Item Code	Description
FCI-3401	S51101Y	fiber optic patch cord single mode sc-sc-apc simplex lszh 1meter

Additional information

Brand	Fahad Cables
Length	1m , 2m , 3m , 4m , 5m , 8m , 10m , 15m , 20m , 25m , 30m , 40m , 50m , 70m , 100m
