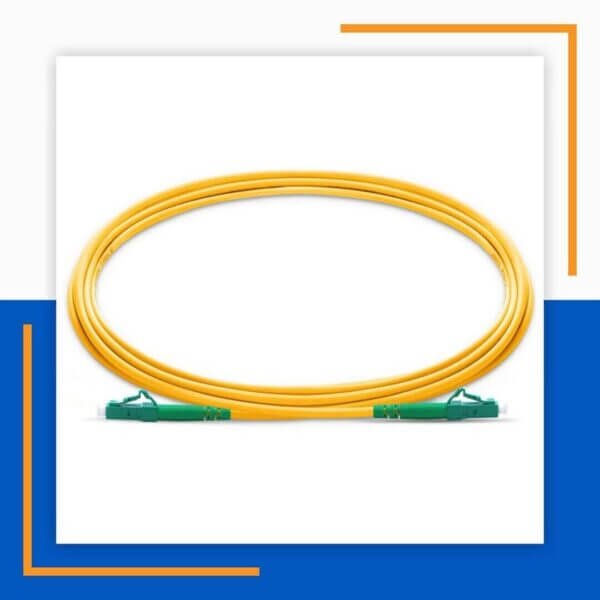

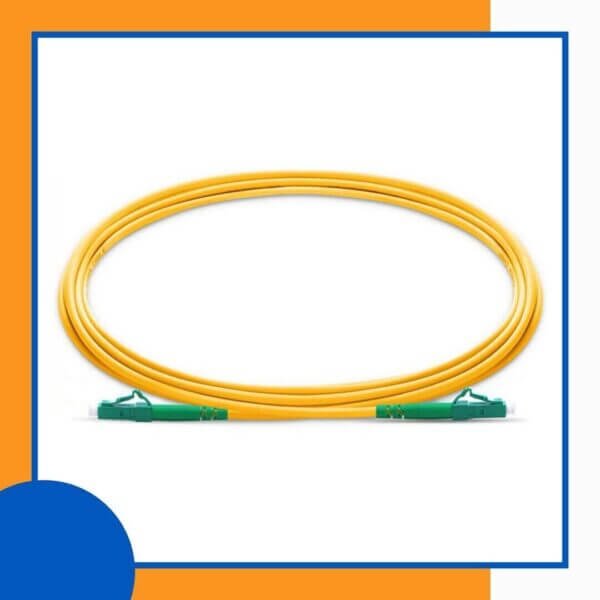

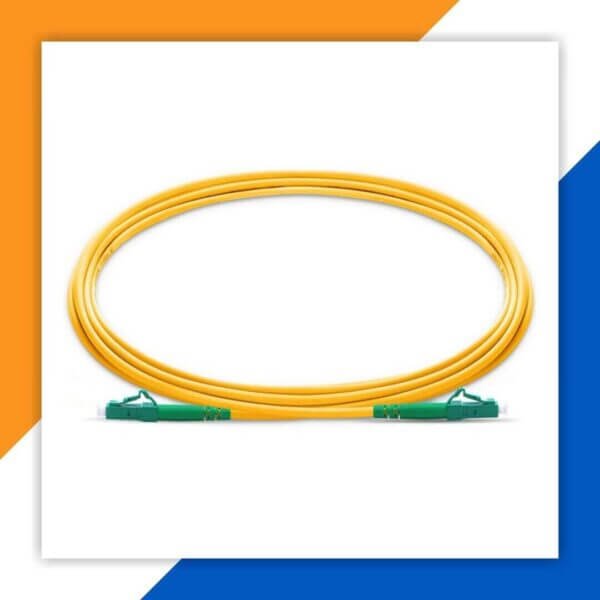

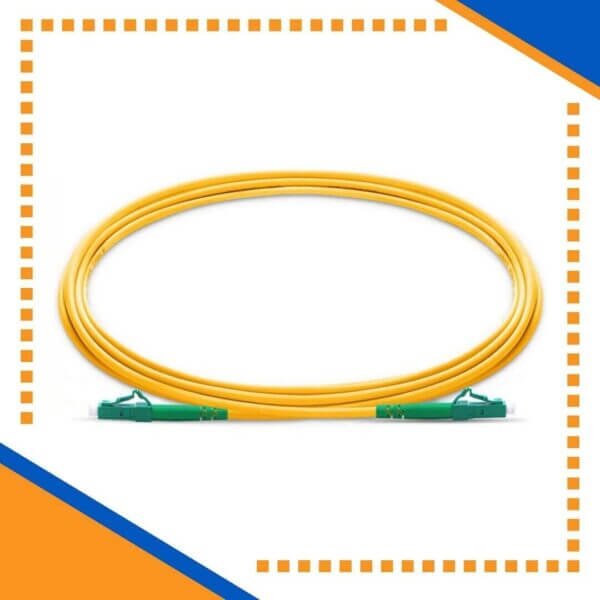

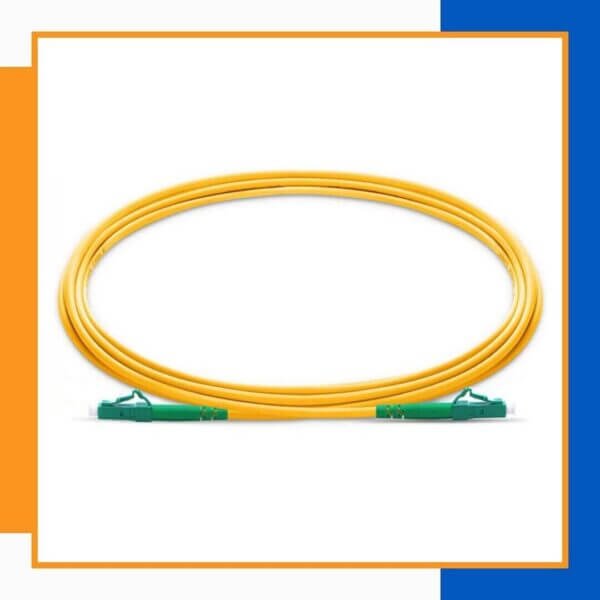

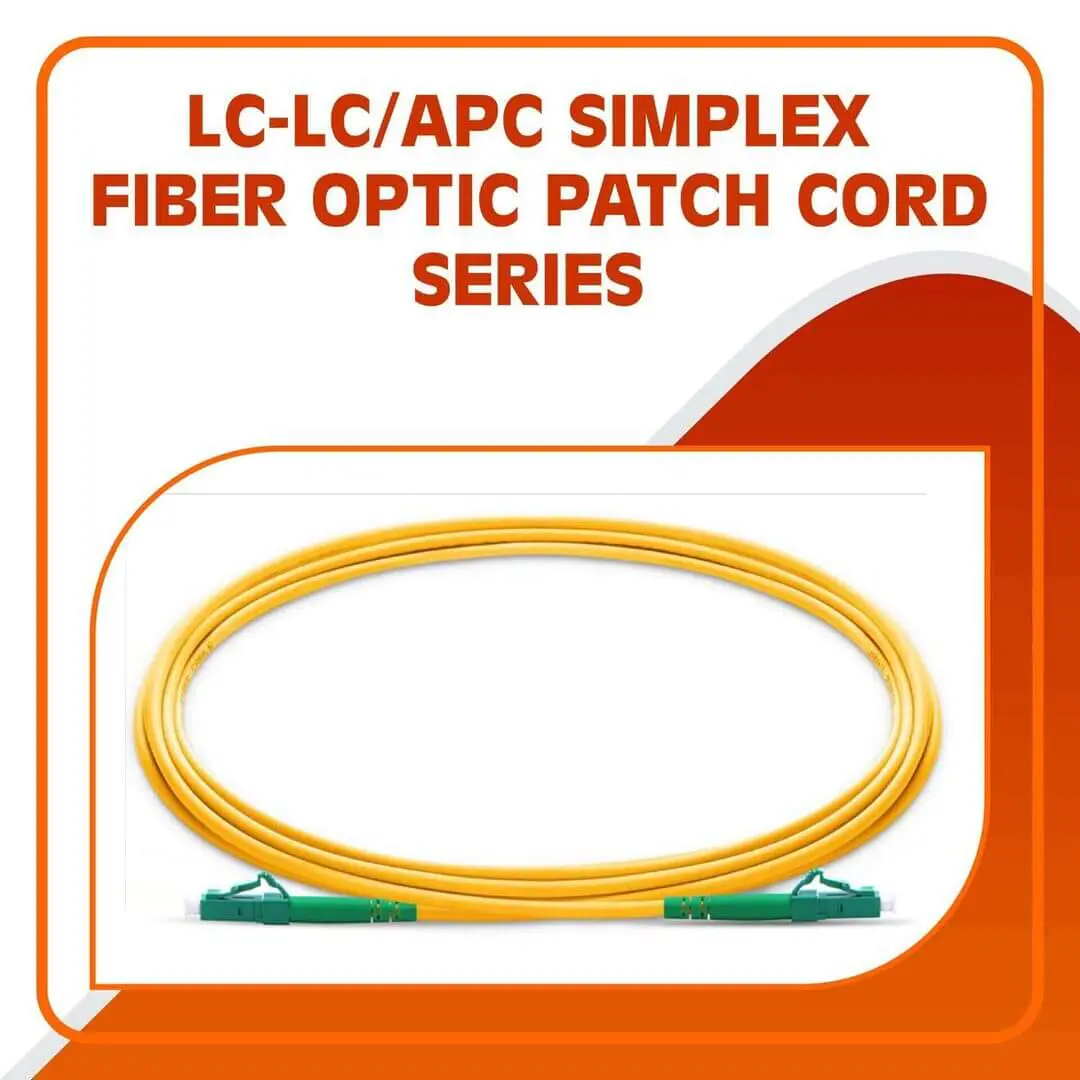

lc cables Patch Cord Single Mode simplex LSZH 1m

Rated 5.00 out of 5 based on 1 customer rating

د.إ 3.00 – د.إ 80.00

General Specification
Mode type: Single mode
Cable Type: Simplex
Connector Style: LC-LC
Fiber Type: ITU-T G.652D
Polish type: APC
Diameter : 2.0mm
Outer Jacket: LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength: SM,1310/1550nm
Length: 1Meter
Model No : FCI-3411
Product ID: S12201Y

Description

Fahad cables lc patch cord

FAHAD CABLES Patch Cord Fiber Optic Single Mode LC-LC-UPC simplex LSZH 1m High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. lc cables Patch Cord Single Mode simplex LSZH 1m

FAHAD CABLES Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous.
parameter test to ensure the highest in network performance. Fahad Cables Industry R Provide Local Manufacturing Facility for Fiber Optic Accessories Patch cord and Pigtail. at UAE, With Made in UAE Coo.

Optical Specifications

Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2

PHYSICAL AND MECHANICAL PROPERTIES
Mode type	Single-mode
Cable Type	Simplex
Connector Style	SC-SC
Fiber Type	ITU-T G.652D
Polish type	APC
Diameter	2.0mm
Outer Jacket	LSZH
Insertion loss	≤0.3dB
Return loss	≥60dB
Wavelength	SM,1310/1550nm
Length	1Meter

Ordering Information
Model No	Item Code	Description
FCI-3401	S51101Y	Patch Cord Fiber Optic Single Mode LC-LC-UPC simplex LSZH 1m

Additional information

Brand	Fahad Cables
Length	1m , 2m , 3m , 4m , 5m , 8m , 10m , 15m , 20m , 25m , 30m , 40m , 50m , 70m , 100m
