Description

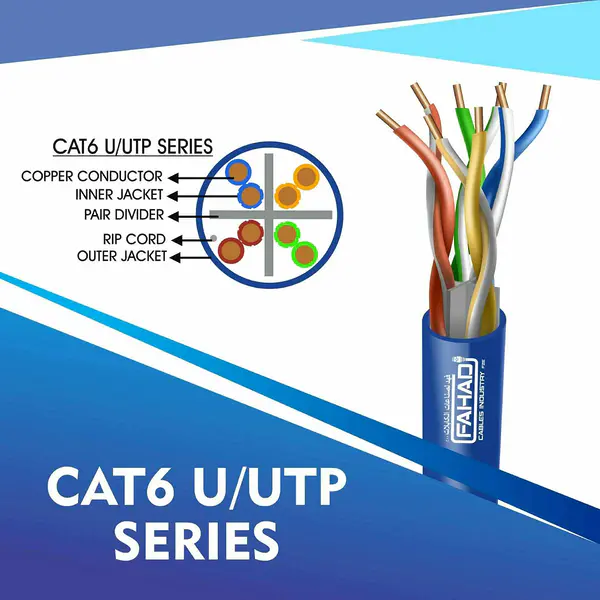

FAHAD CABLES cat 6 cable color code & LSZH cable 305m Box

FAHAD CABLES cat 6 cable color code & LSZH cable 305m Boxare Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat 6 cable color code

Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails .

PHYSICAL AND MECHANICAL PROPERTIES

Basic Conductor: 23AWG TMT Copper
Insulation: HDPE
Number of insulated conductors: 8 twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: LSZH
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 100 N MAX
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range: -20 to +60C
Installation temperature range: 0 to +50C
Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: IEC 61156-5 TYPE III

Additional information

Brand	Fahad Cables
Color	Blue , Black , Green , Grey , Orange , Red , Violet , Yellow , White , Aqua

About brand

Discovering Fahad Cables: Quality and Innovation in the UAE

Introduction to Fahad Cables

Fahad Cables, a leading manufacturer in the UAE, stands at the forefront of cable production. Founded by Fahad Cables Industry FZE, the brand has consistently set benchmarks in quality and innovation across the Middle East region.

Unmatched Quality and Standards

At Fahad Cables, our commitment to quality is paramount. Each product is designed and manufactured under stringent quality control measures. Our cables meet international standards, ensuring safety and reliability for various applications, from construction to electrical engineering. Whether it is low voltage or high voltage cables, our extensive product range caters to diverse industry needs.

Innovation and Technology

Innovation is deeply ingrained in Fahad Cables' ethos. By utilizing the latest technology and manufacturing processes, we continually enhance our offerings. Our research and development team works tirelessly to introduce new solutions that provide efficiency and performance, thereby helping us maintain our competitive edge in the market. Moreover, our dedication extends beyond the production floor. Fahad Cables places great emphasis on customer service, ensuring that our clients receive expert guidance throughout their purchasing journey. In summary, Fahad Cables Industry FZE is not just a manufacturer; we are a partner in progress, committed to delivering exceptional value and excellence in cable production. Experience the Fahad difference today!

Click to enlarge

cat 6 cable color code & LSZH cable 305m Box

Rated 5.00 out of 5 based on 2 customer ratings

د.إ 200.00

Conductor Size: 24AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: LSZH
Jacket Color: Blue/Black/Grey/Violet/Orange/White/Red/Green/Aqua/Yellow
Packing: 305m Box
Item Code: 6X145MLB
