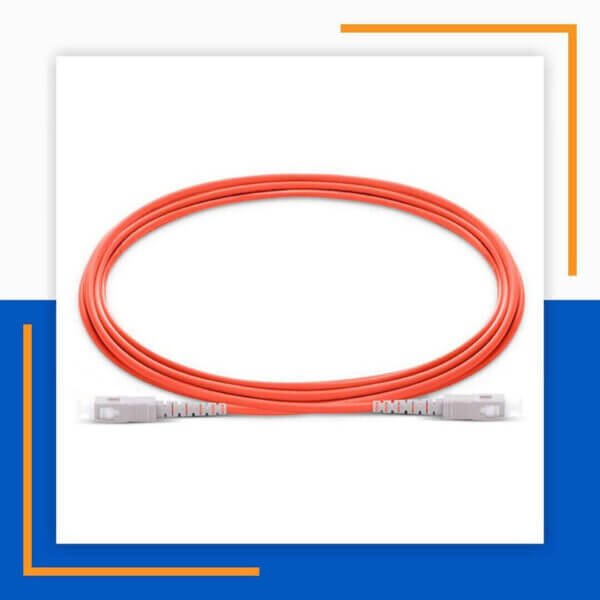

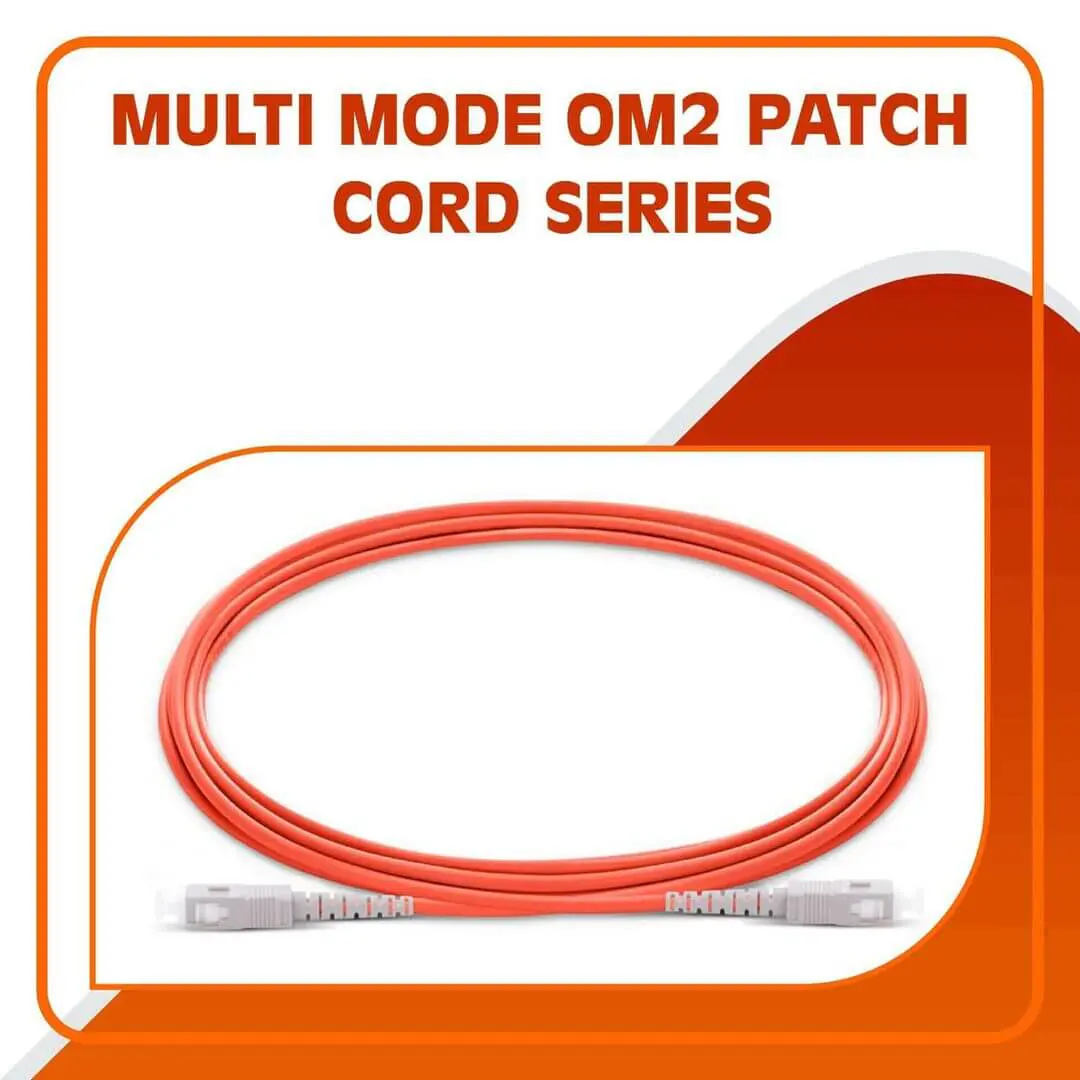

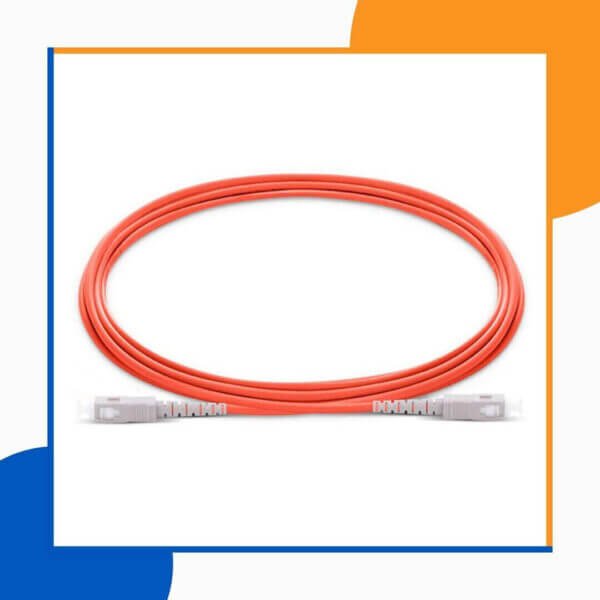

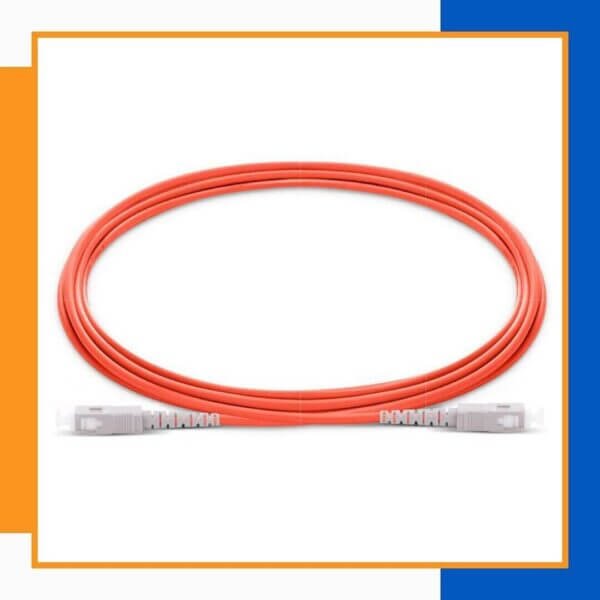

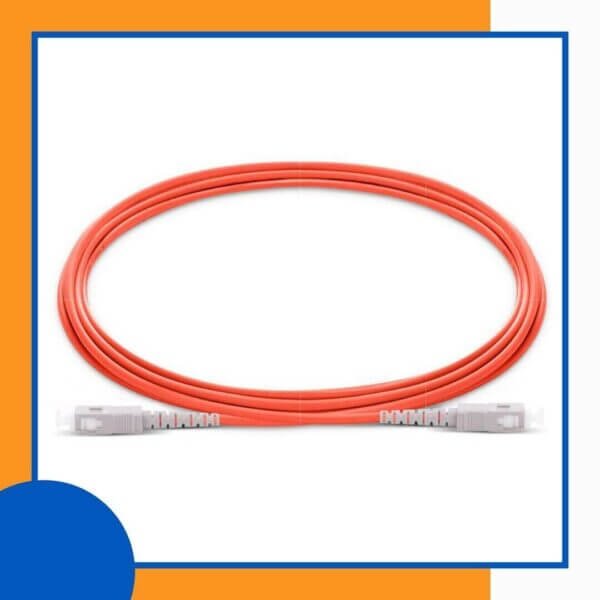

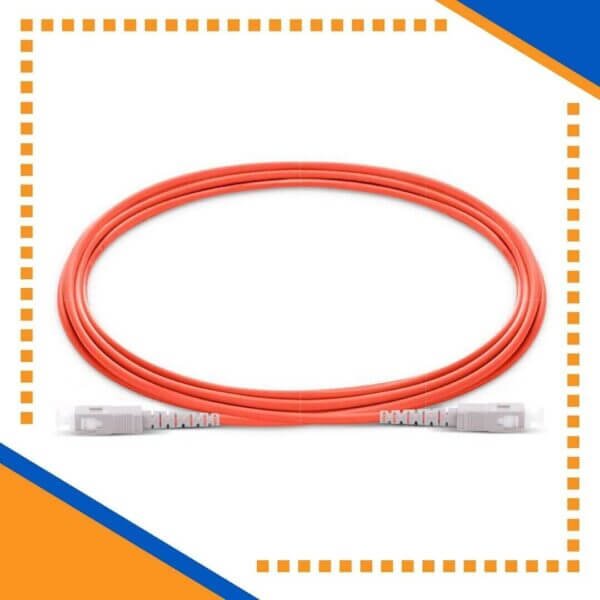

Fiber Patch Cord MM SC-SC-UPC Simplex LSZH OM2 10M

General Specification
Mode type : Multi Mode
Cable Type : Simplex
Connector Style : SC-SC
Fiber Type : OM2 50/125μm
Polish type :UPC
Diameter : 2.0mm
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥30dB
Wavelength : 850/1300nm
Length : 10Meter
Model No : FCI-3610
Product ID : S23310O

Description

FAHAD CABLES Fiber Patch Cord MM SC-SC-UPC Simplex LSZH OM2 – 10M

FAHAD CABLES  10M High Quality and Cost-effective SM,MM Simplex Fiber Patch Cord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. Fiber Patch Cord MM SC-SC-UPC Simplex LSZH OM2 10M

Optical Specifications

  • Mode type: Single mode / multi mode
  • Cable Type: Simplex/Duplex
  • Connector Style: SC, FC, ST, LC, MTRJ,
  • Polish Type: PC,UPC,APC
  • Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
  • Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
  • Strength Member: Aramid Yarn
  • Outer Jacket: LSZH/PVC/OFNR/OFNP
  • Interchangeability &Vibration: ≤0.2dB
  • Minimum Bend radius: 10 -13mm
  • Wavelength: SM:1310/1550nm MM:850nm
  • Operating temperature: -40~75°C
  • Jacket Color
  • Single mode: Yellow / Green, Yellow Blue
  • Storage temperature: -45~85°C
  • Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
  • Fiber type: ITU-T G.652D, G.657A1 /A2
PHYSICAL AND MECHANICAL PROPERTIES
Mode type  Single-mode
Cable Type Simplex
Connector Style SC-SC
 Fiber Type  ITU-T G.652D
Polish type APC
Diameter  2.0mm
Outer Jacket  LSZH
Insertion loss  ≤0.3dB
Return loss  ≥60dB
Wavelength SM,1310/1550nm
Length 1Meter
Ordering Information
Model No Item Code Description
FCI-3401 S51101Y  fiber optic patch cord single mode sc-sc-apc simplex lszh 1meter



Additional information
Brand

Fahad Cables

Length

1m

,

2m

,

3m

,

4m

,

5m

,

8m

,

10m

,

15m

,

20m

,

25m

,

30m

,

40m

,

50m

,

70m

,

100m
