cat8 network cable 23awg 4 Twisted pair S-FTP 305m

Fahad Cable Cat8 Network Cable 23awg twisted Pair s-ftp LSZH 305m

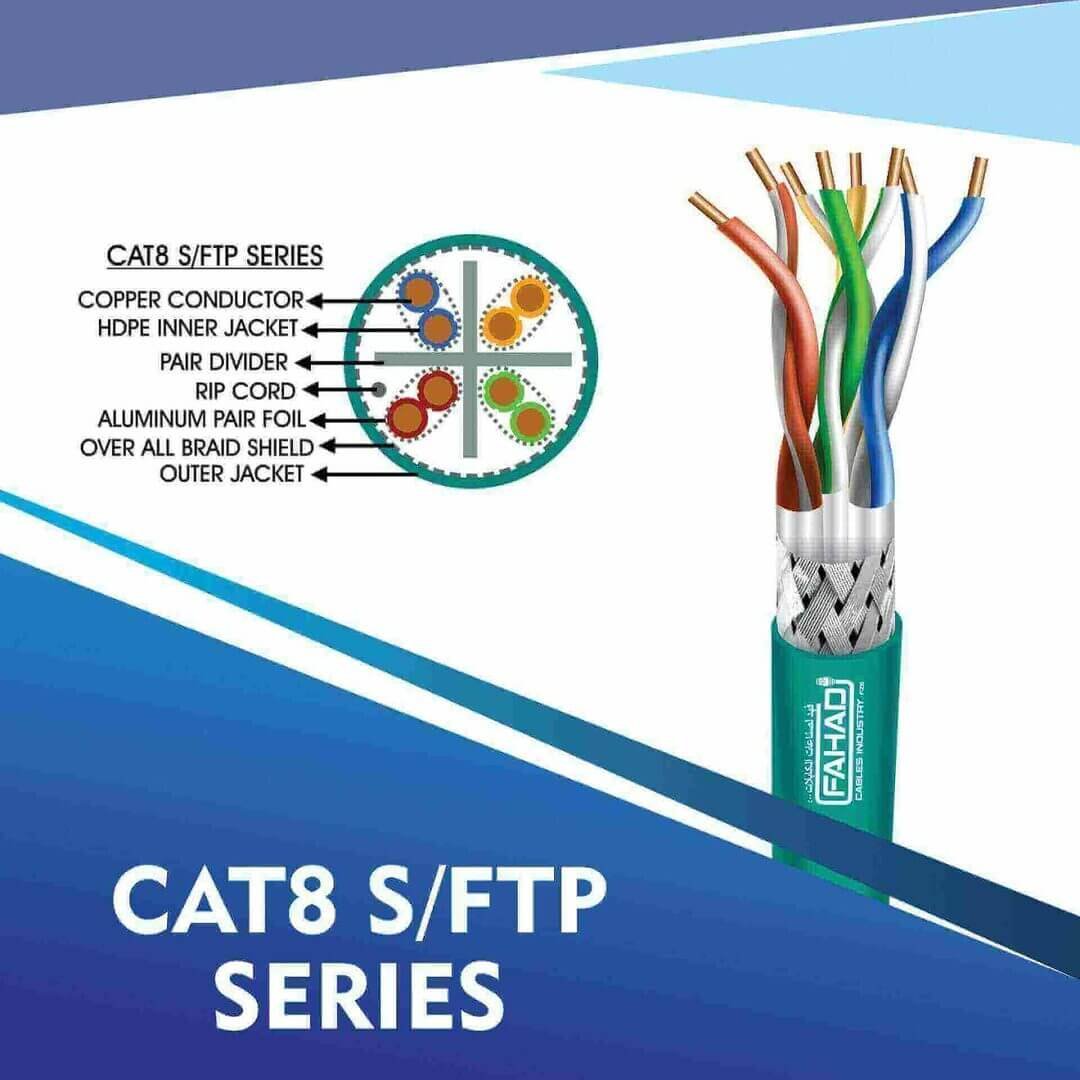

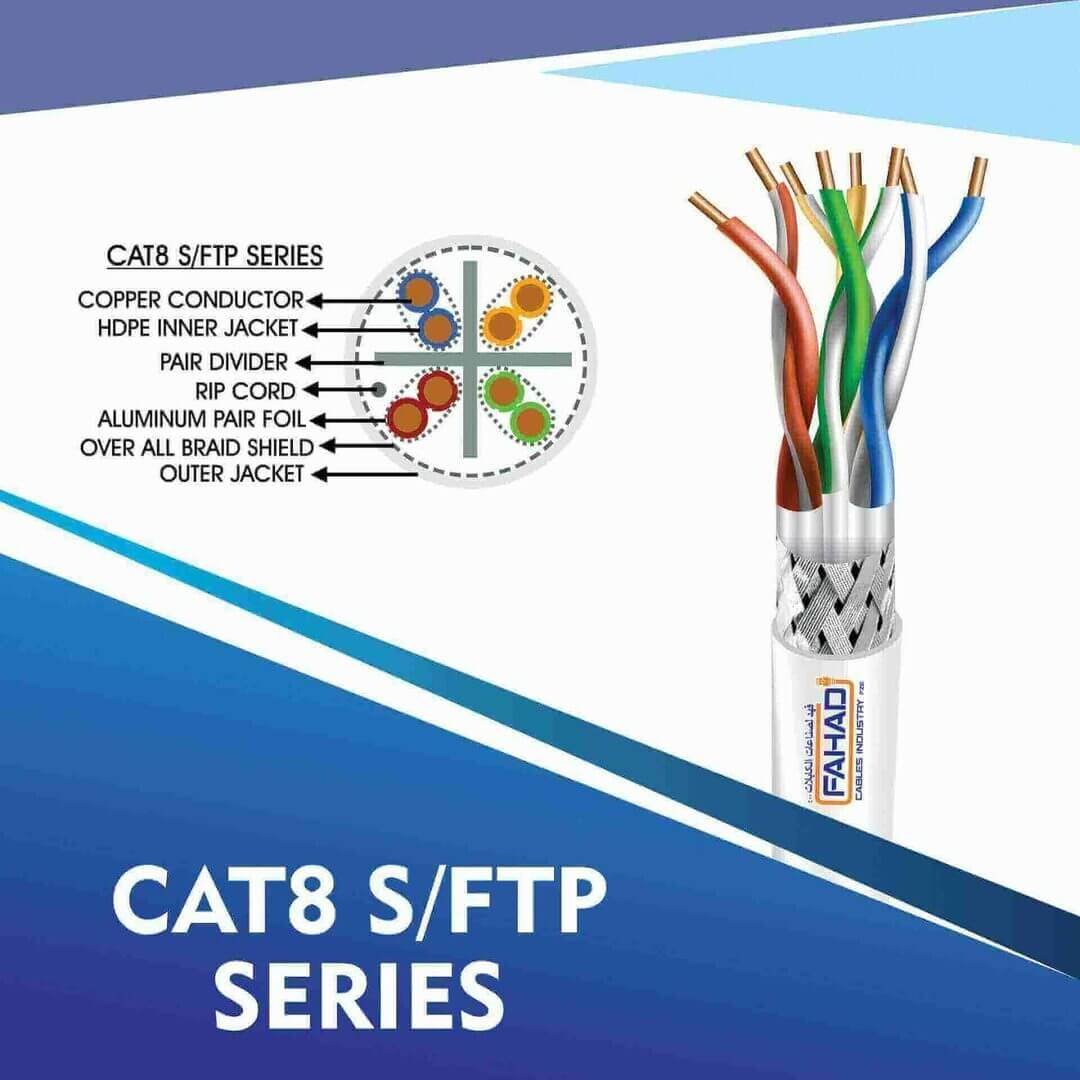

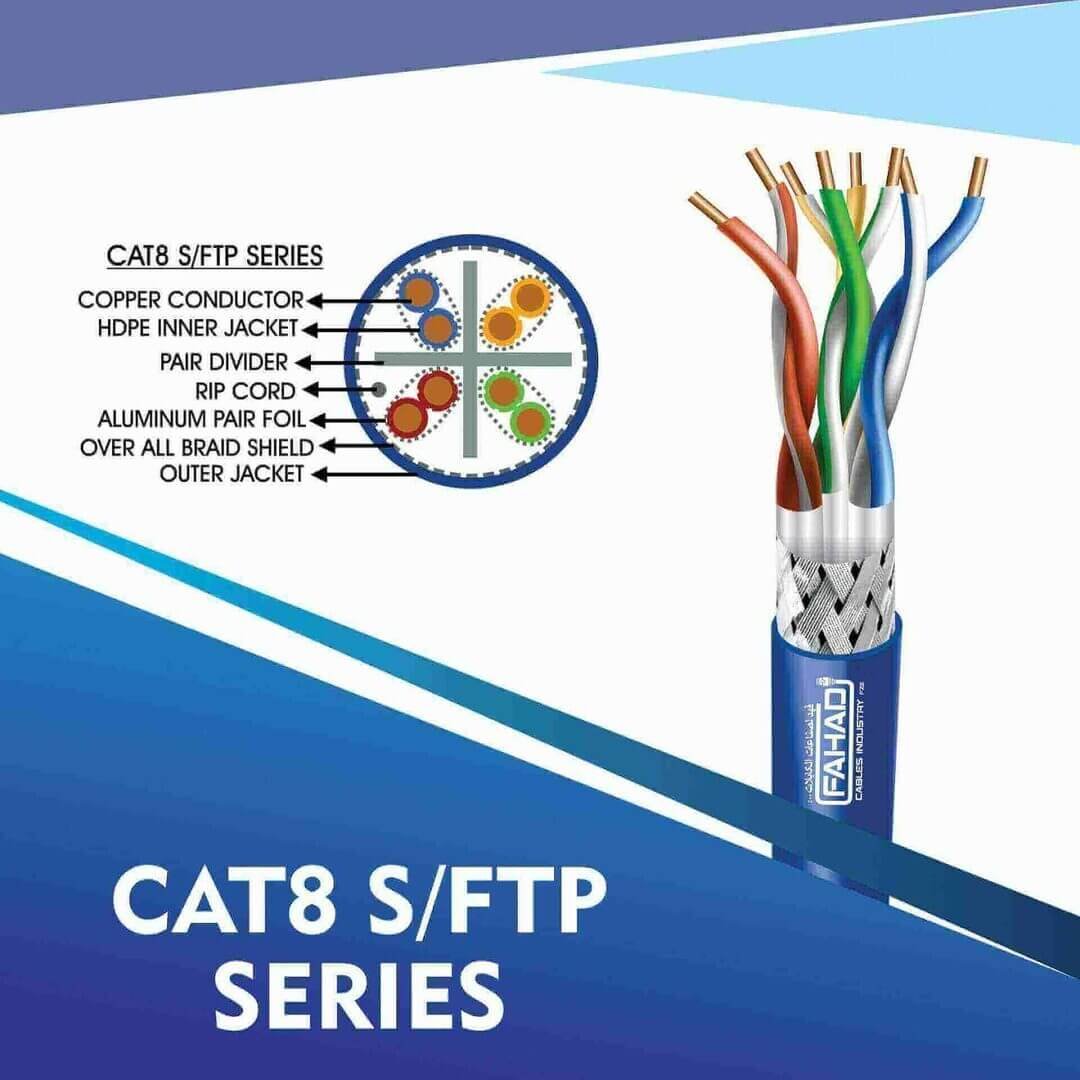

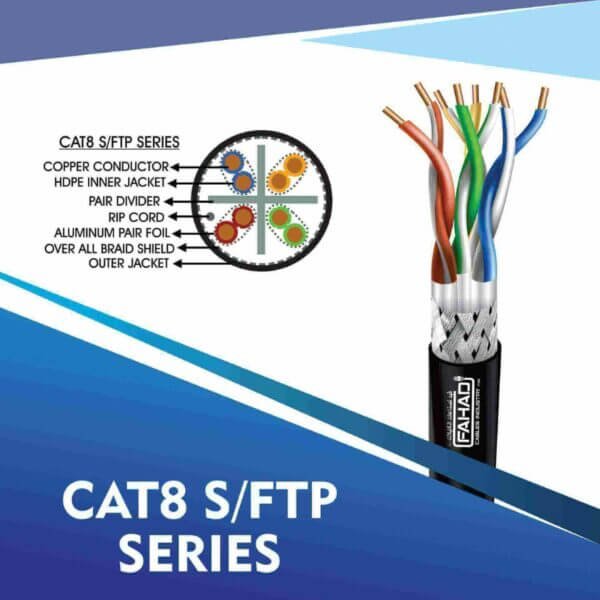

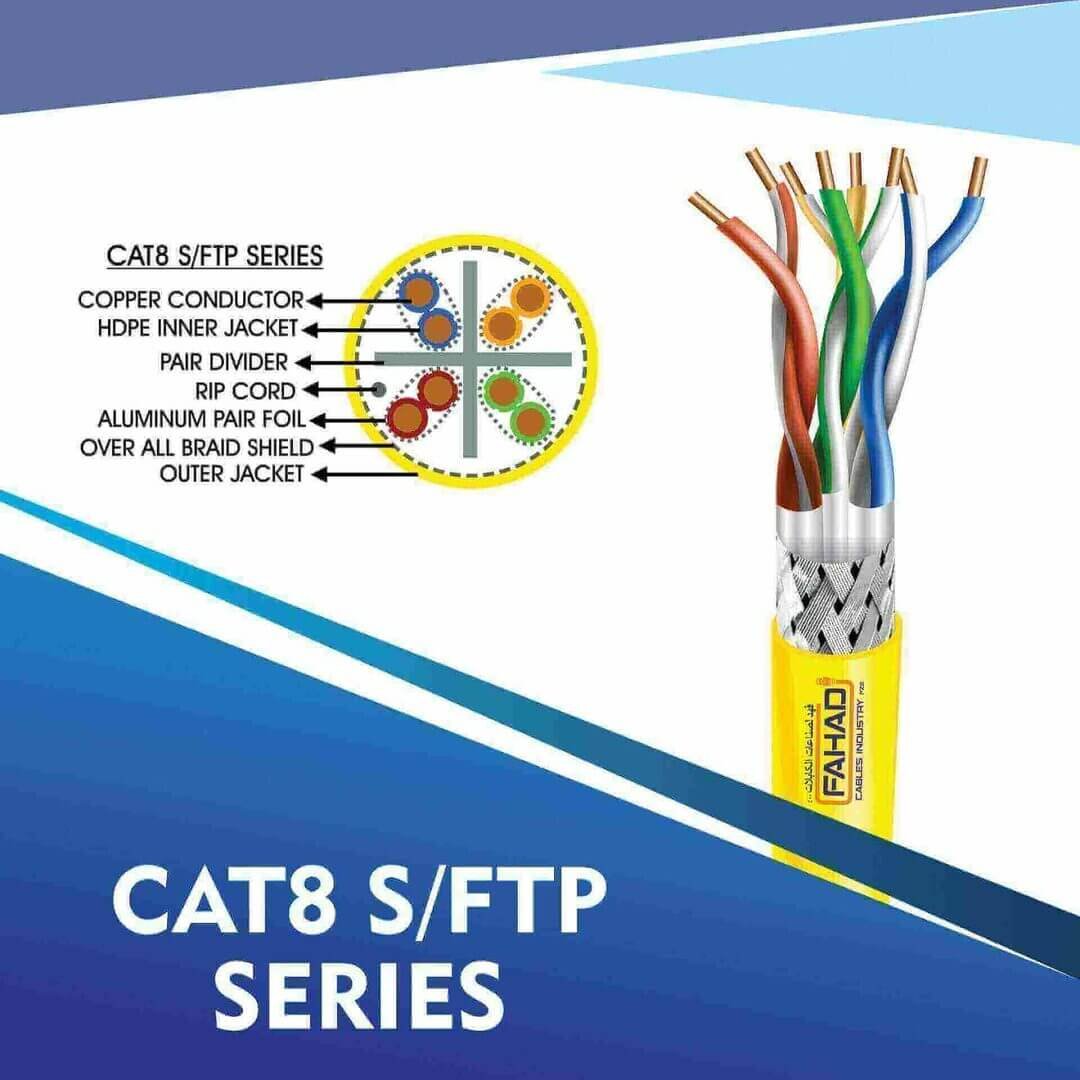

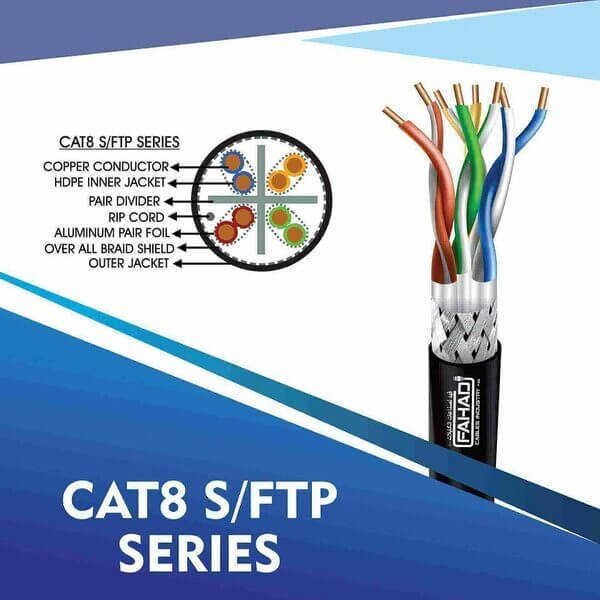

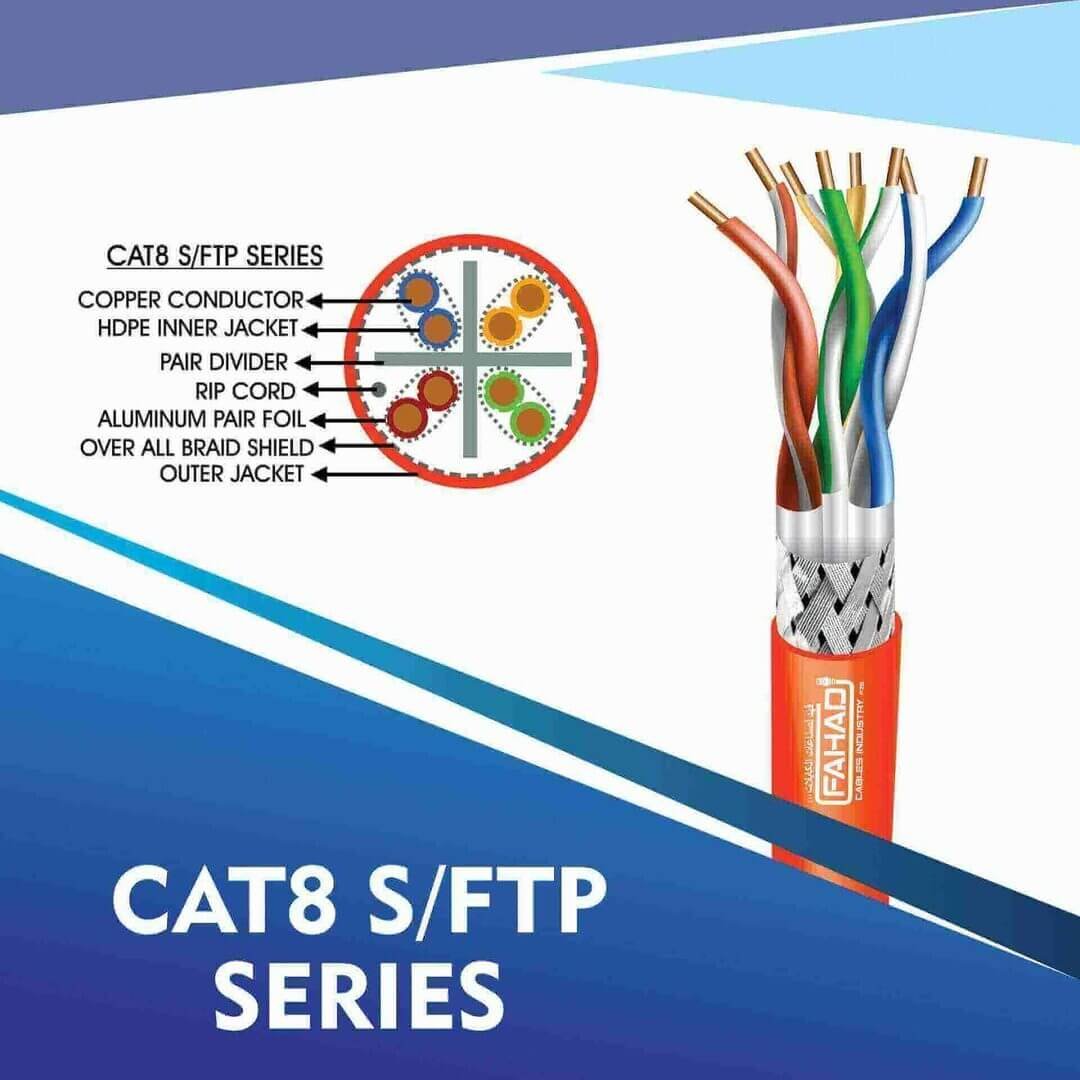

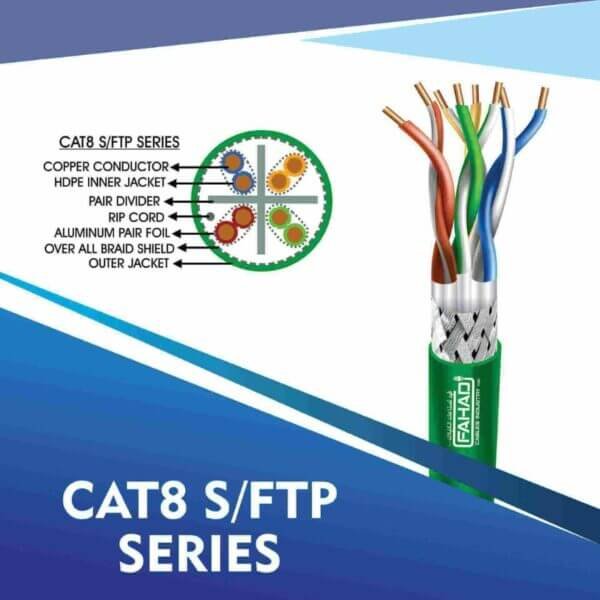

The Fahad Cable Cat8 Network Cable is a high-performance networking solution designed for demanding data transmission needs. Featuring 23AWG twisted pair conductors with S-FTP (Shielded Foiled Twisted Pair) construction, this cable ensures superior protection against electromagnetic interference and crosstalk. With a robust LSZH (Low Smoke Zero Halogen) jacket and a generous 305-meter length, it is ideal for professional installations requiring reliable, high-speed connectivity and enhanced safety in sensitive environments.

PHYSICAL AND MECHANICAL PROPERTIES

Basic Conductor: 23AWG BARE Copper
Insulation: Polyolefin
Number of insulated conductors: 8 twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: LSZH
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking: Includes FAHAD CABLES P/N, cable description, Meter mark and Model Number
Pulling force: 110 N MAX
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range: -20 to +60C
Installation temperature range: 0 to +50C
Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: IEC 61156-5 TYPE III
