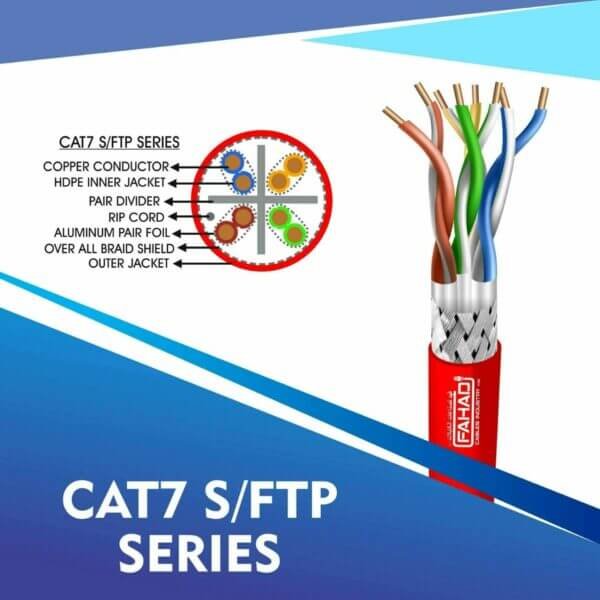

cable ethernet cat 7 sftp 23awg 4pair 305m Reel

Rated 5.00 out of 5 based on 1 customer rating

د.إ 1,050.00

GENERAL SPECIFICATION
Conductor: Bare Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: Aluminum Foiled
Outer Jacket: LSZH

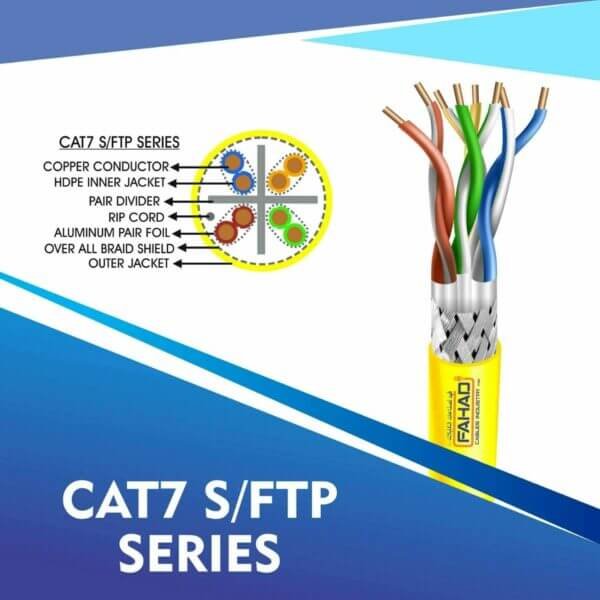

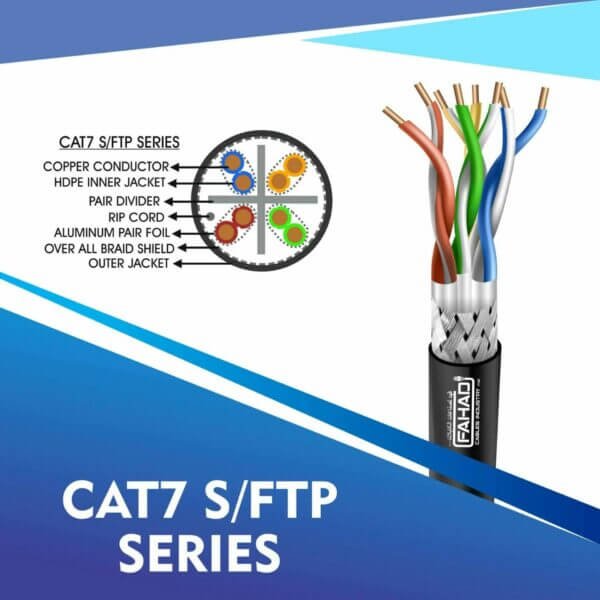

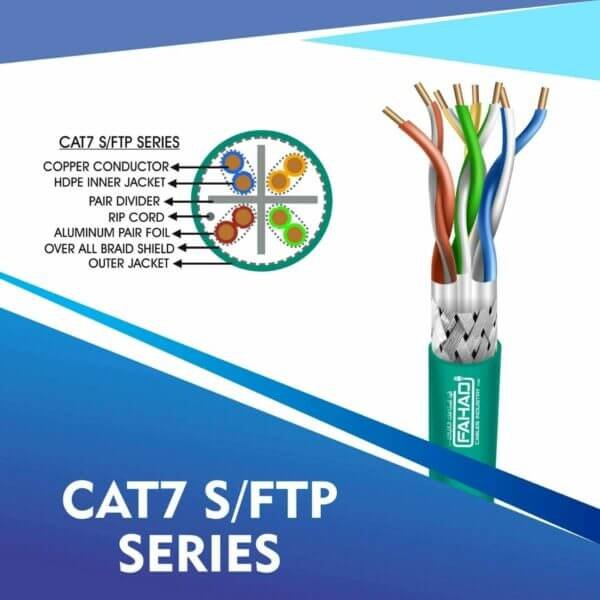

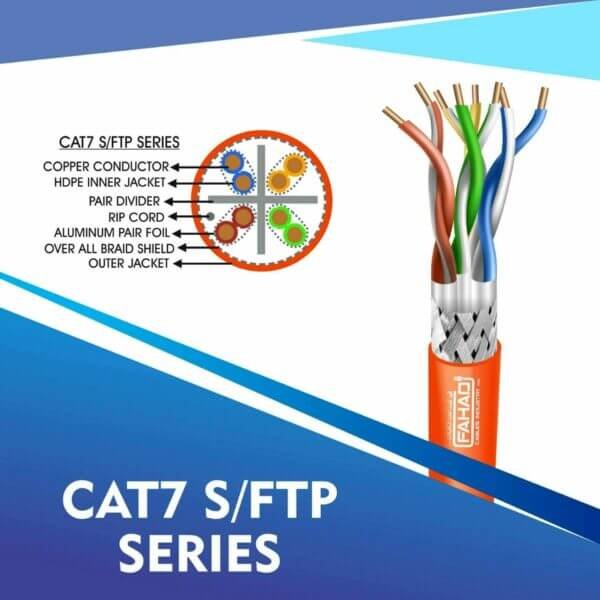

Jacket Color: Blue/Black/Grey/Violet/Orange/White/Red/Green/Aqua/Yellow
Packing: 305m / Box
Item Code: 7X536BLB

Fahad Cables cable ethernet cat 7 sftp 23awg 4pair 305m Reel

FAHAD CABLES cable ethernet cat 7 sftp 23awg 4pair 305m Reel are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -F). Cat6a Series is Designed to Ensure the Highest levels of Performance reliability and longevity and are ideal for Large Enterprise and small business.

Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails.

PHYSICAL AND MECHANICAL PROPERTIES

Basic Conductor: 23AWG, Bare Copper
Insulation: Polyolefin
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Shield: Braiding + Aluminum Foil On Pairs
Outer Jacket: LSZH Halogen free flame retardant Standard Jacket Color: Blue/Gray /Black
Standard Surface Marking: Includes FAHAD CABLES P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Storage Temperature: -20 to +80C
Temperature operating range: -20 to +60C

ELECTRICAL SPECIFICATIONS
Characteristic Impedance : 100±6 Ohm @ 1600 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/m max. @ 1 KHz.
Voltage rating : 72 Vdc max.
Dielectric strength : 700 Volts/1 minute min rms
Velocity of Propagation (NVP): 74-78%
Propagation Delay Skew: 25 nS/100m max @ 1-600 MHz
Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: 85 dB min @ 30-100 MHz 85-20Log(f/100) @100-500 MHz
Transfer Impedance:10 mOhm/m Max @ 1-30 MHz 30 MOhm/m Max @ 30-100 MHz
