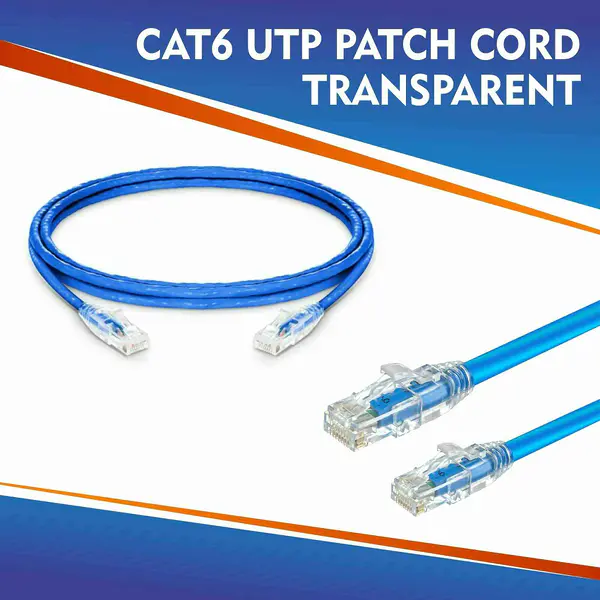

cat6 23awg data patch cord u-utp 25meter
د.إ 21.80
FEATURES
Snag less design prevents locking tabs breaking off
4 pairs twisted pair cable
Provides enhanced EMC protection and improved alien crosstalk performance
Pre-terminated with 8W plugs
Available in variety of lengths and colors
Backwards compatible
Model No: 6X3RMB25
Description
FAHAD CABLES cat6 23awg data patch cord u-utp 25meter
Fahad Cables Industry FZE cat6 23awg data patch cord u-utp 25meter are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 Including Amendment A1:2010 Requirements for patch cord Assemblies and provide high Performance levels for Structured Cabling Systems.
Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails.
APPLICATION
- 10BASE-T, 100BASE-TX Fast Ethernet,
- 1000BASE-T (IEEE802.3
- 100VG-AnyLAN (IEEE802.12)
- 550 MHz Broadband Video
- Voice, T1, ISDN
- 155/ 622 Mbps ATM
- Power over Ethernet (POE)
GENERAL SPECIFICATION
4 Pairs shielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0
PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
Additional information
| Brand |
Fahad Cables |
|---|---|
| Color |
Blue ,Black ,Green ,Grey ,Orange ,Red ,Violet ,Yellow ,White ,Aqua |
| Length |
0.15m ,0.5m ,1m ,2m ,3m ,4m ,5m ,10m ,15m ,20m ,25m ,30m ,40m ,50m |
