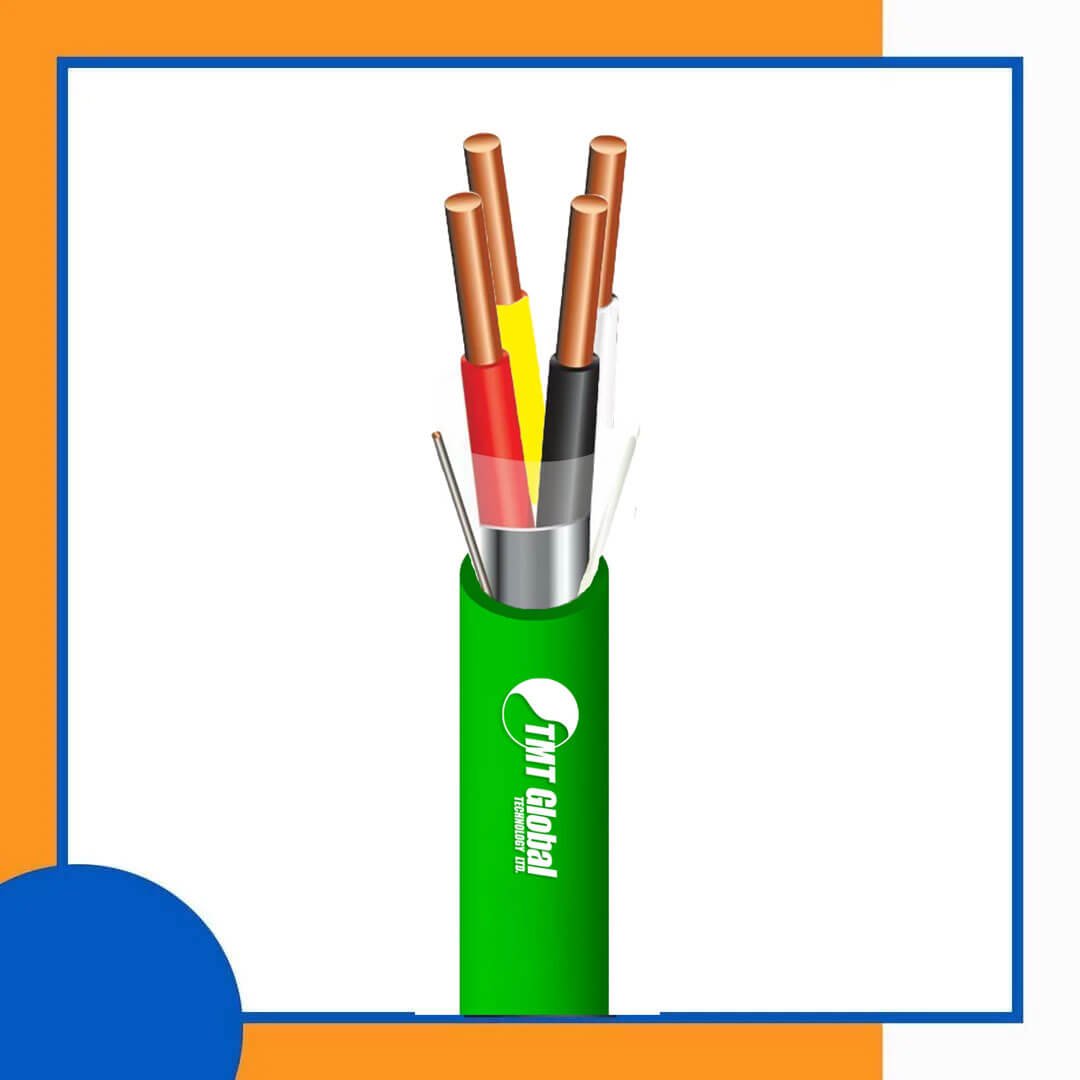

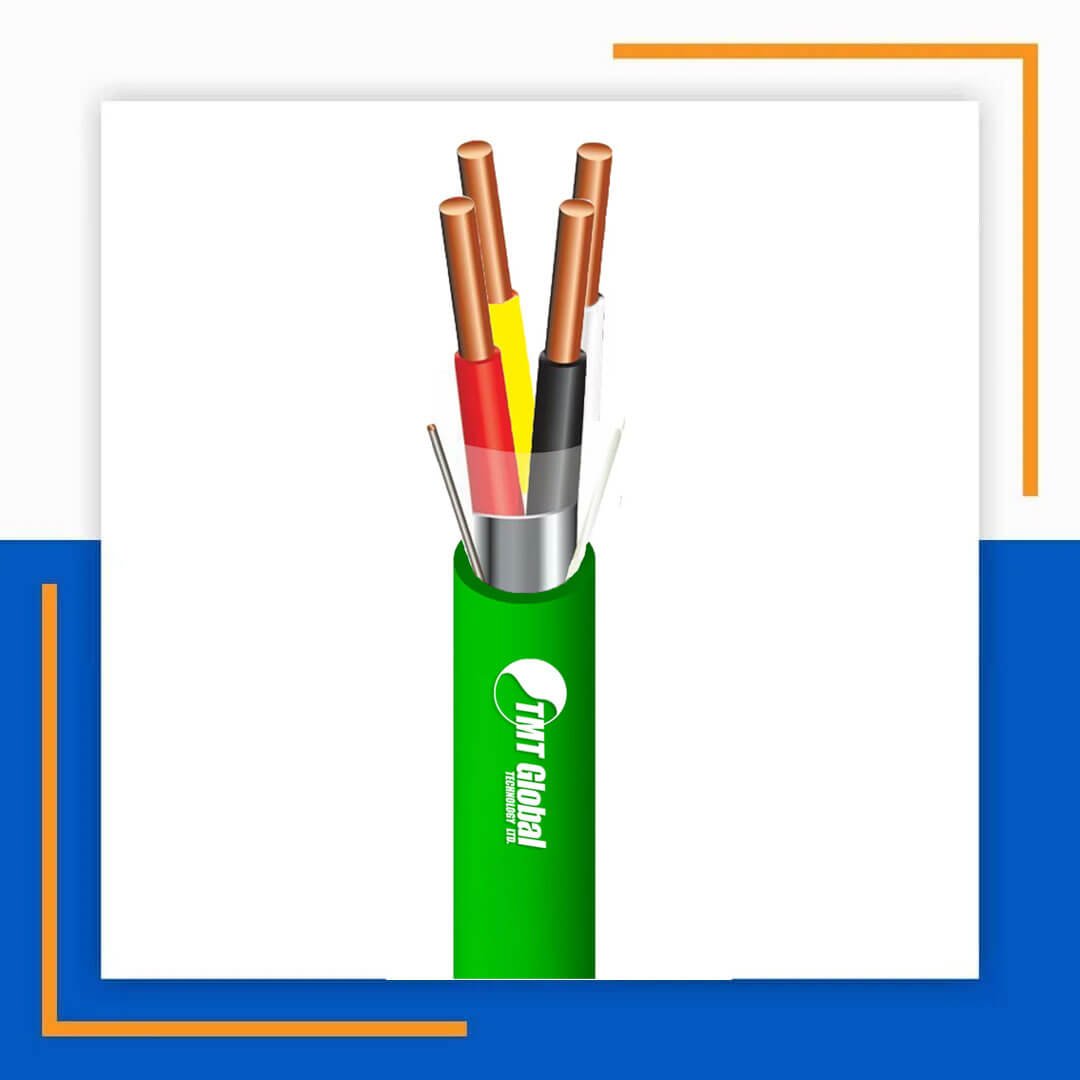

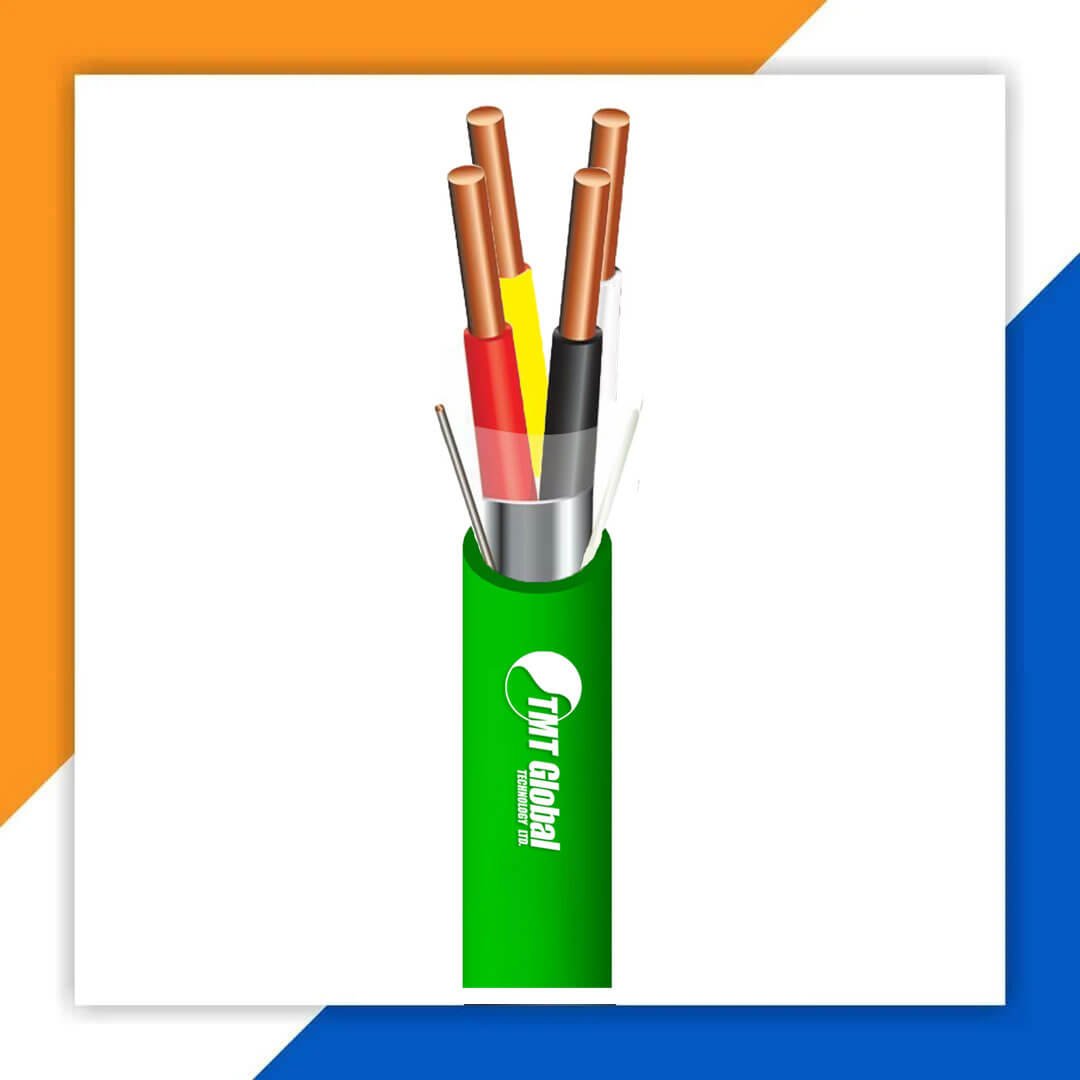

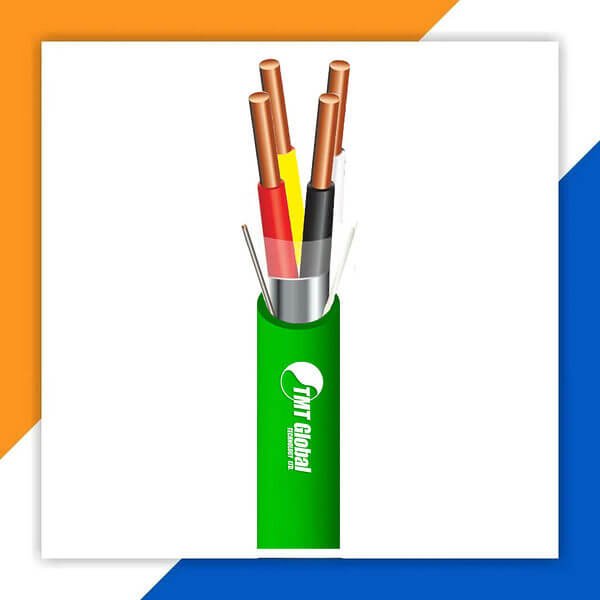

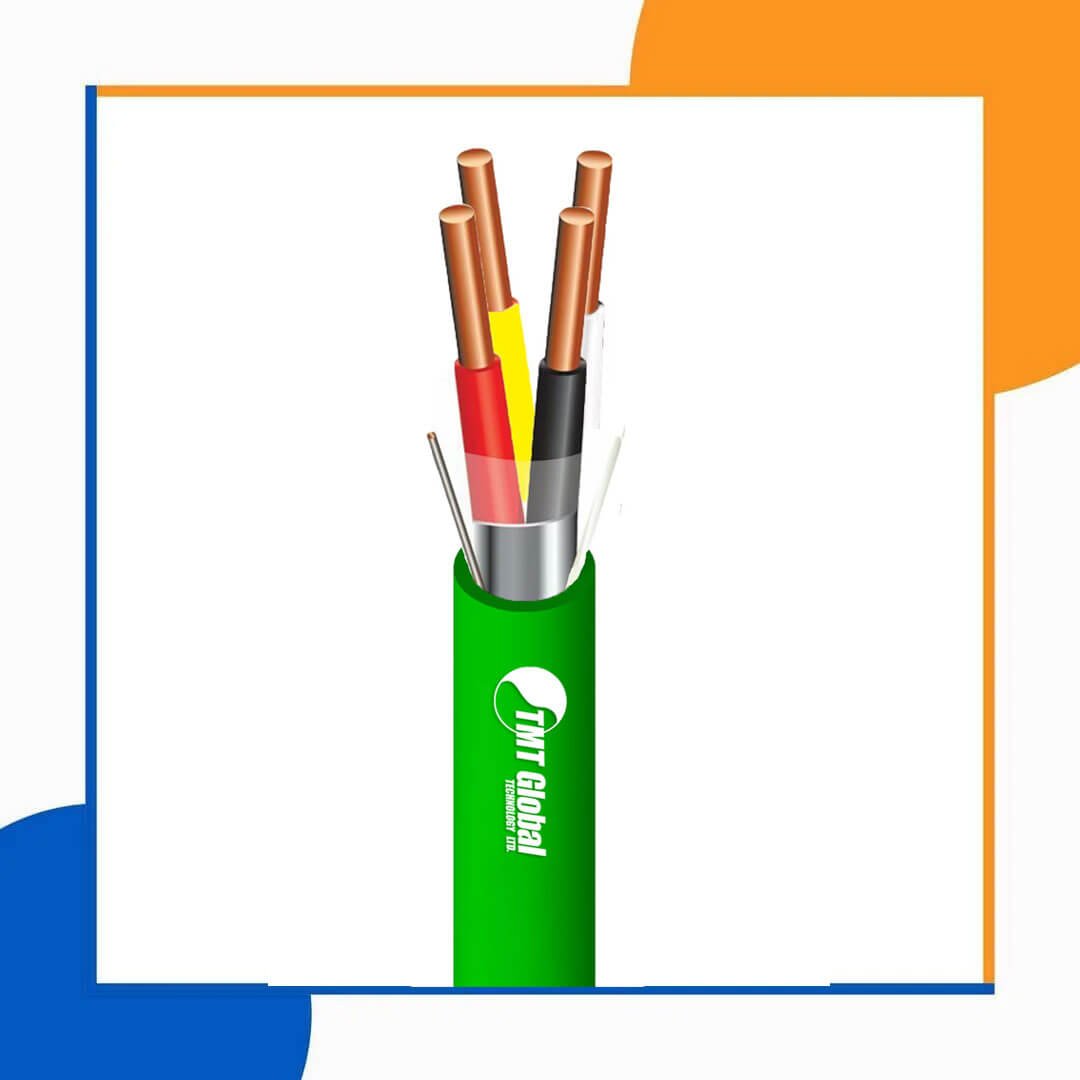

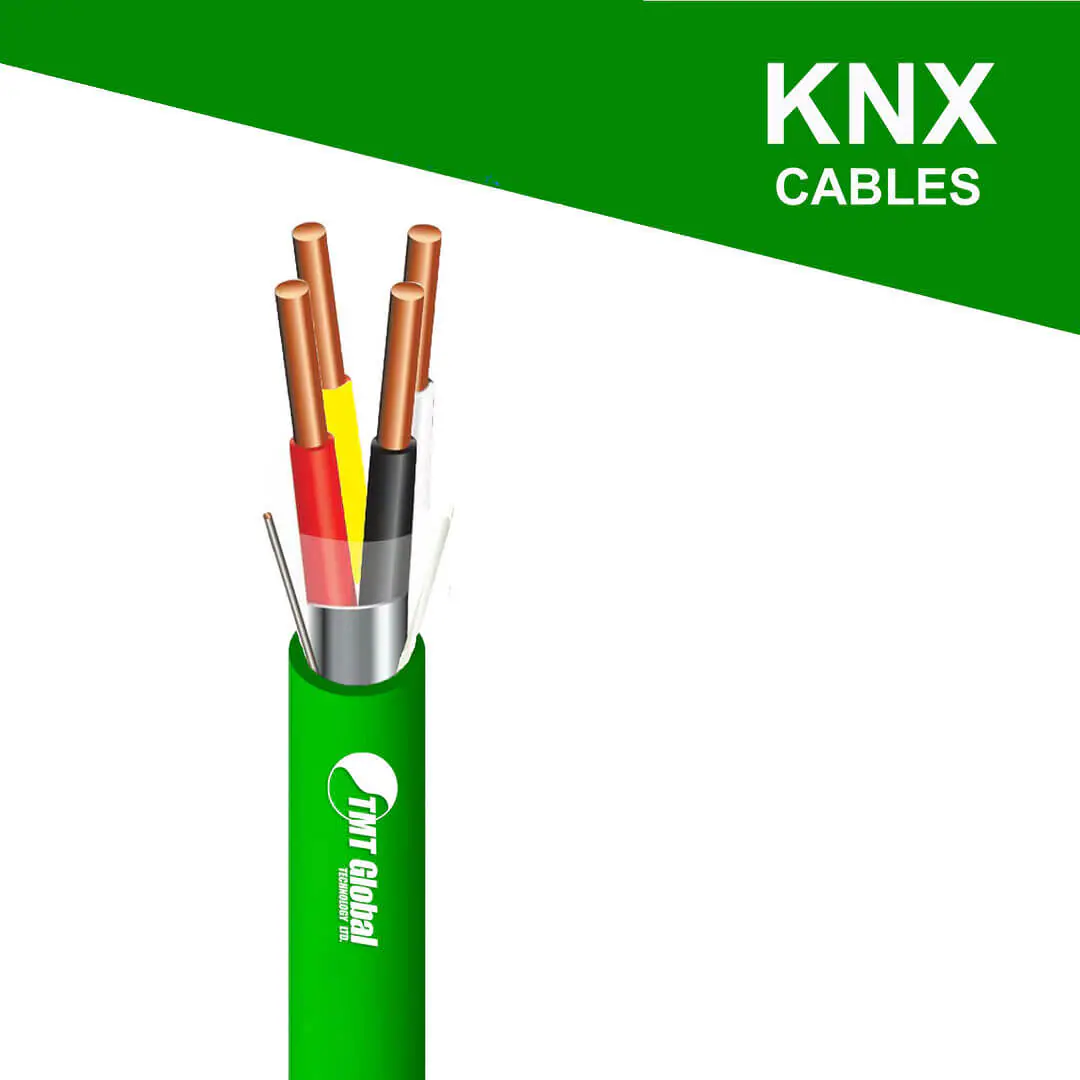

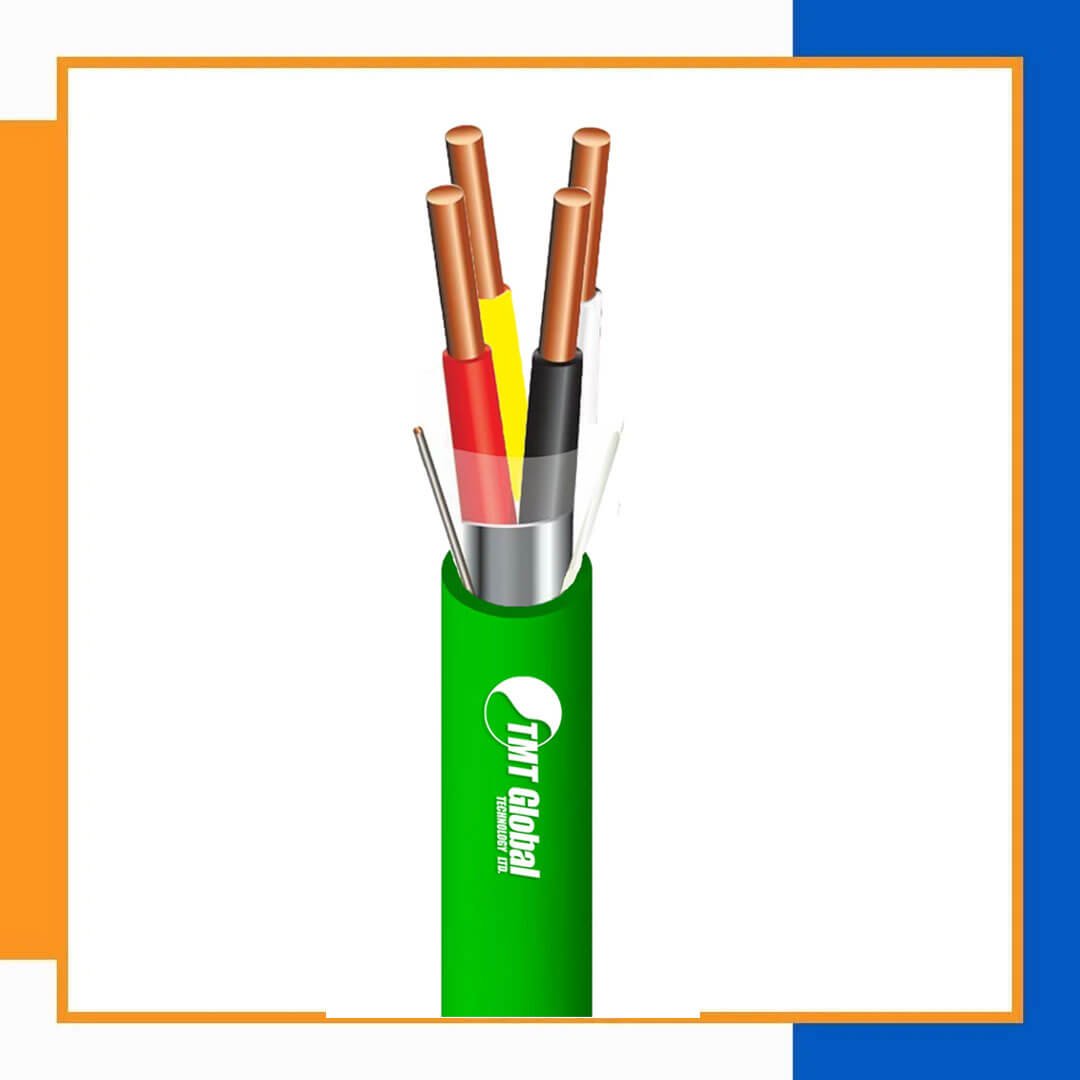

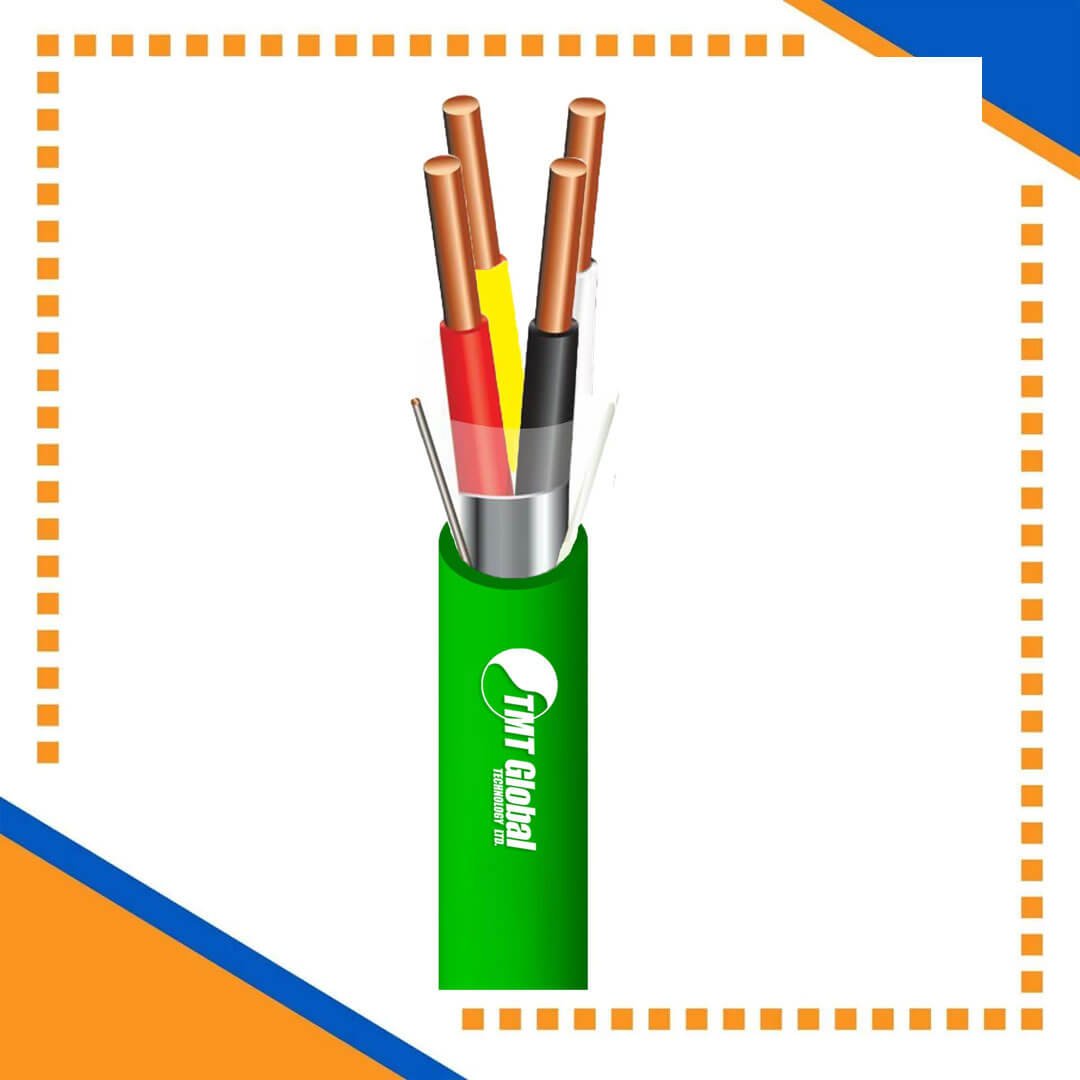

2 Pair 4 core KNX Control Cable LSHF 305m Roll
د.إ 0.00

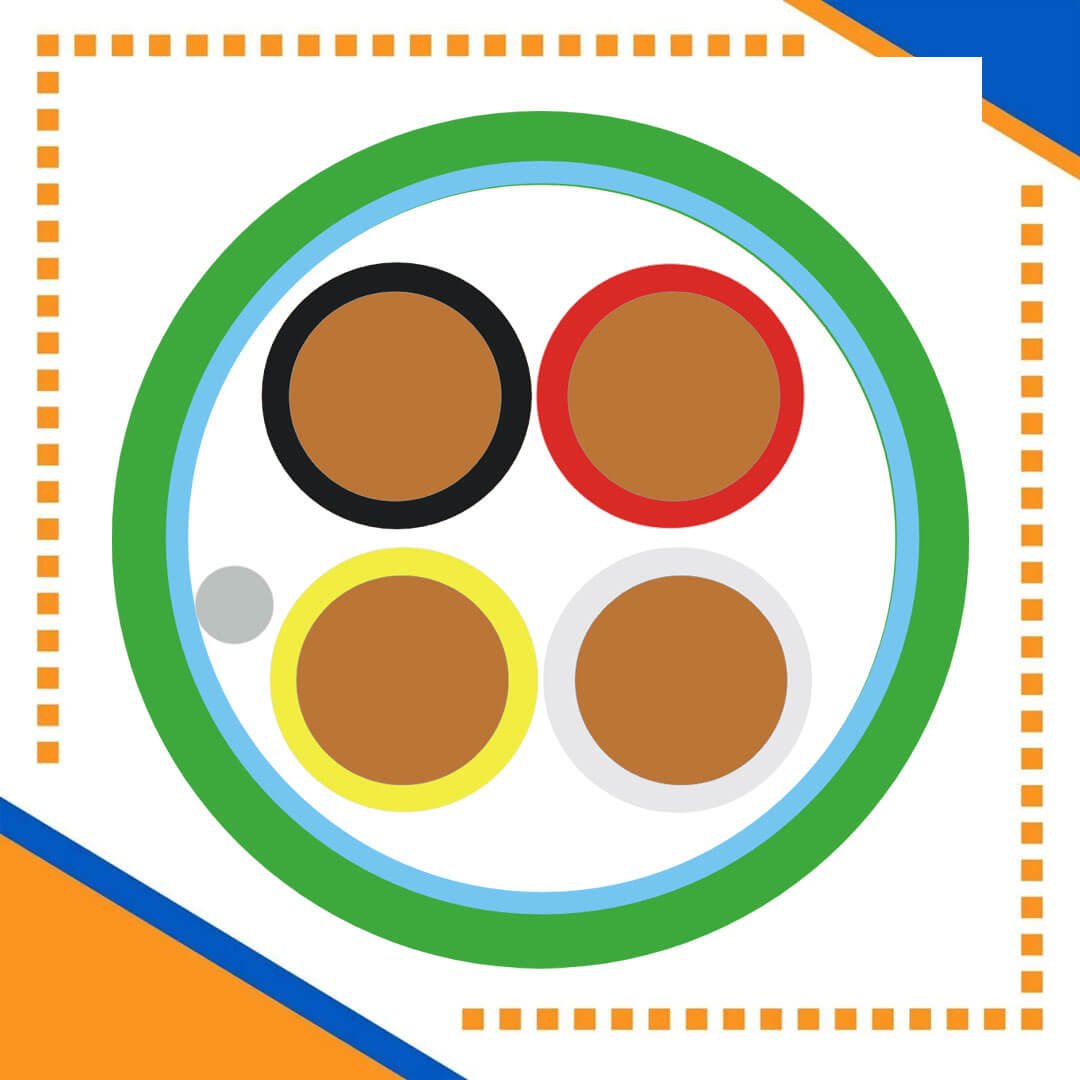

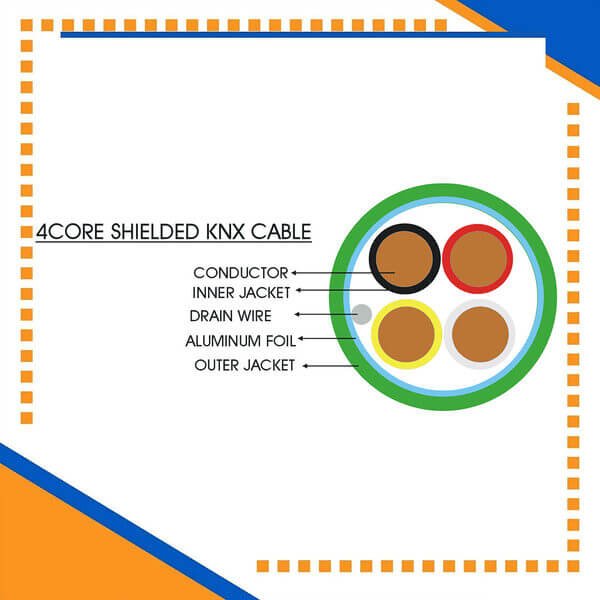

GENERAL SPECIFICATION

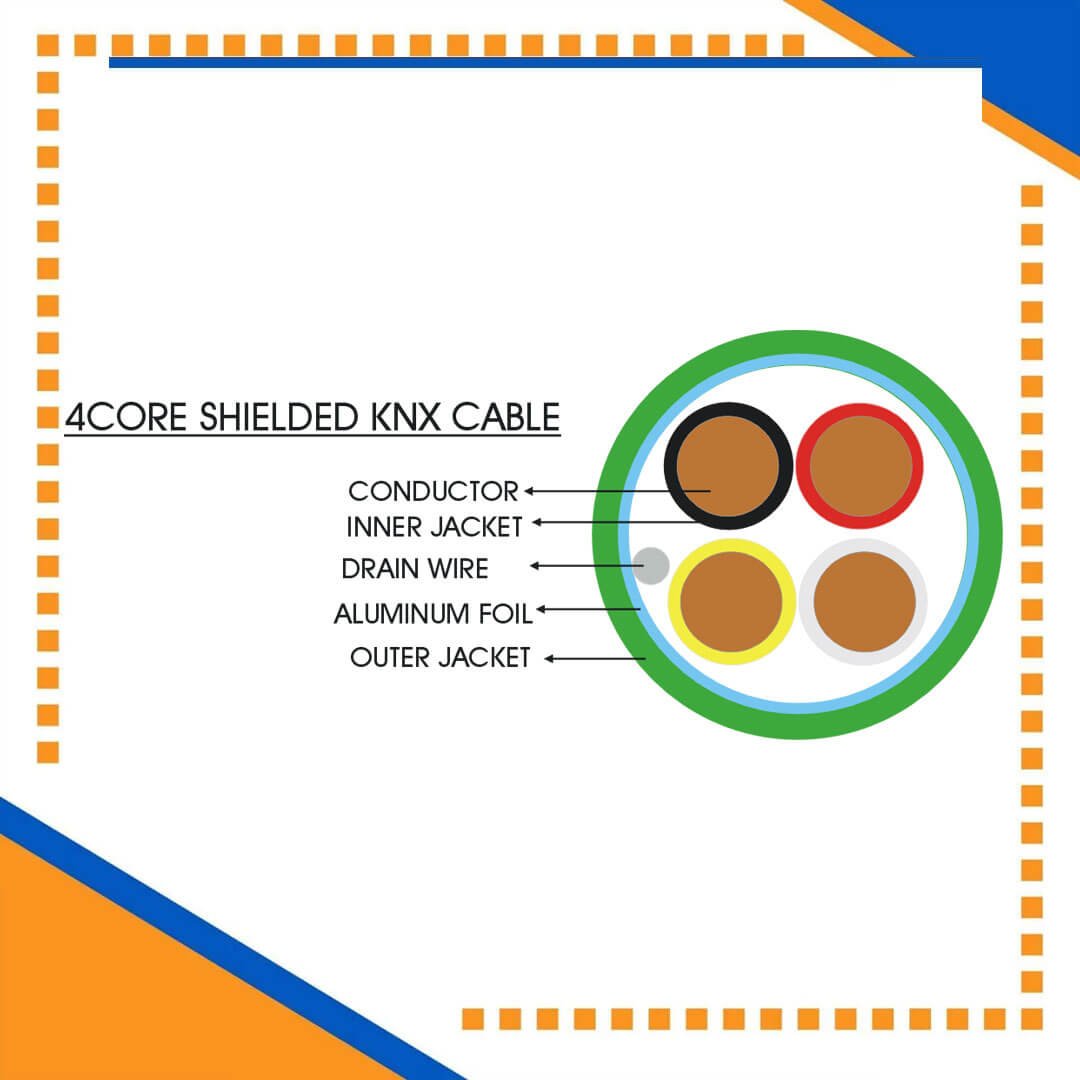

Conductor Material : Bare Copper, (1/0.8mm)
Pair Insulation Material :Â Polyethylene (PE)
Number of Pairs : 2 / 4 core
Fillers : Cotton Thread
Overall Tape :Â Polyester
Drain Wire :Â Copper
Overall Screen :Â Overall Aluminum Foil (100% Coverage)
Sheath Material :Â PVC/ Low Smoke Halogen Free (LSHF)
Sheath Colour :Â Green
Manufactured By: FAHAD CABLES INDUSTRY FZE ( MADE IN UAE )
Fahad cables 2 Pair 4 core KNX Control Cable LSHF 305m Roll

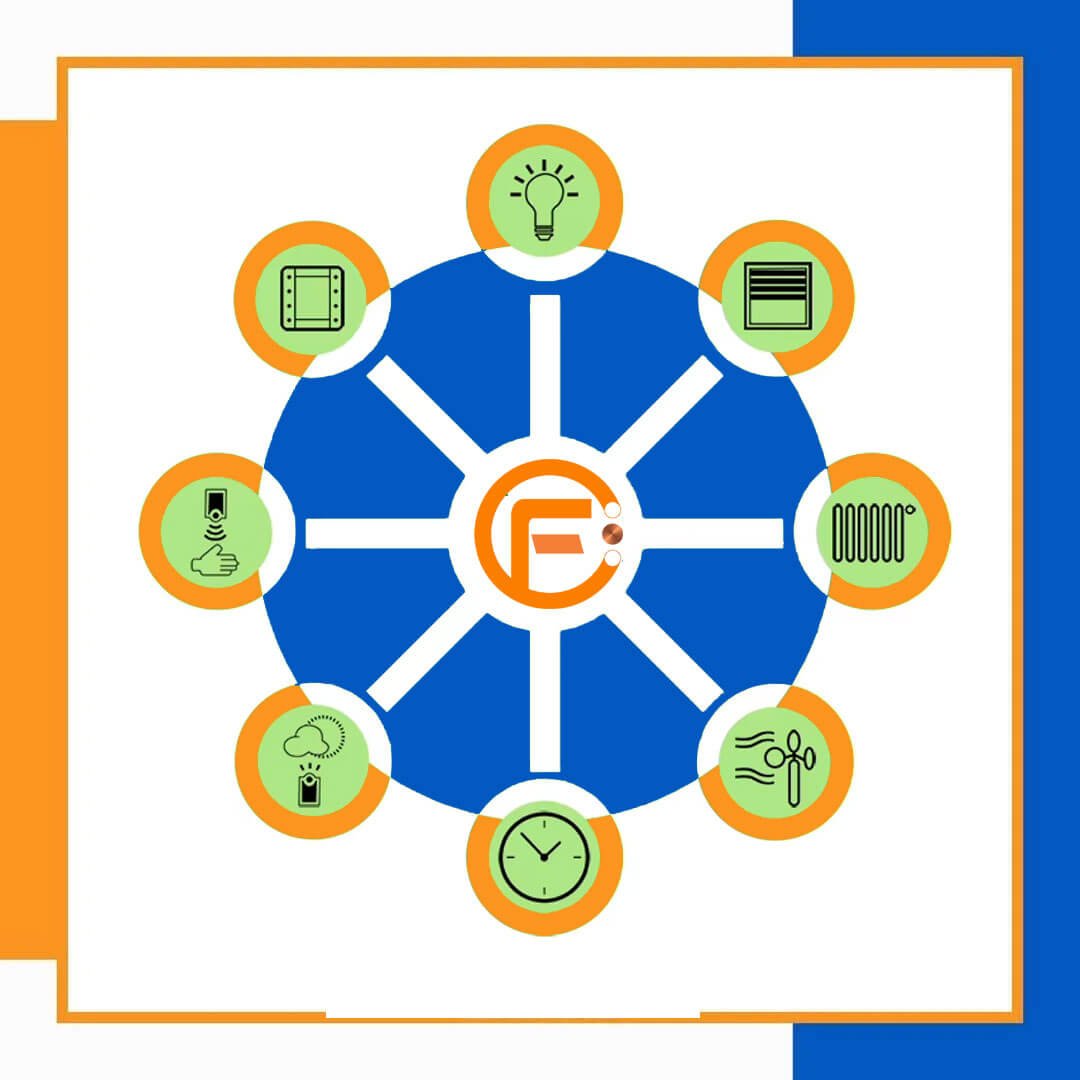

The Fahad cables KNX system by Fahad cables serves as an open standard for automating both commercial and residential buildings. KNX devices, including lighting, blinds, HVAC, security systems, and more, enable comprehensive control. Originating from the European Home Systems Protocol, BatiBUS, and the European Installation Bus, KNX supports various communication links such as twisted pair, powerline, RF, or IP connections. Through distributed applications, KNX devices interact seamlessly, facilitated by standardized datapoint types and objects. Formerly known as EIB, KNX systems offer precise control over heating, lighting, and air conditioning based on external climate conditions or preset levels through logical device channels.2 Pair 4 core KNX Control Cable LSHF 305m Roll
| Electrical Characteristics | |
| Nominal Conductor Resistance | < 38.5 Ω/km |
| Insulation Resistance | > 200MΩ.M |
| Voltage Rating | 450/750V |
| Test Voltage | 2.5kV for 5 minutes |
| Overall Diameter | 5.6 ± 0.2mm |
| Min Bend Radius | 10 x OD |
| PHYSICAL AND MECHANICAL PROPERTIES | |
| Conductor Material | Â Bare Copper, (1/0.8mm) |
| Pair Insulation Material | Polyethylene (PE) |
| Number of Pairs | 2 |
| Fillers | Cotton Thread |
| Overall Tape | Polyester |
| Drain Wire | Copper |
| Overall Screen | Overall Aluminum Foil (100% Coverage) |
| Sheath Material | PVC/ Low Smoke Halogen Free (LSHF) |
| Sheath Colour | Green |
| Core Identification | Red, Black |
| Storage Temperature | -30°C to +70°C |
| Temperature operating range | -20°C to +70°C |
| Flame Test | IEC 60332-1-2 |
| PHYSICAL AND MECHANICAL PROPERTIES | |
| Conductor Material | Â Bare Copper, (1/0.8mm) |
| Pair Insulation Material | Polyethylene (PE) |
| Number of Pairs | 2 |
| Fillers | Cotton Thread |
| Overall Tape | Polyester |
| Drain Wire | Copper |
| Overall Screen | Overall Aluminum Foil (100% Coverage) |
| Sheath Material | PVC/ Low Smoke Halogen Free (LSHF) |
| Sheath Colour | Green |
| Core Identification | Red, Black |
| Storage Temperature | -30°C to +70°C |
| Temperature operating range | -20°C to +70°C |
| Flame Test | IEC 60332-1-2 |
| Ordering Information | ||
| 0420BFSRN-KX | 5X145BPB | 4 CORE KNX Cables 305m Roll |
